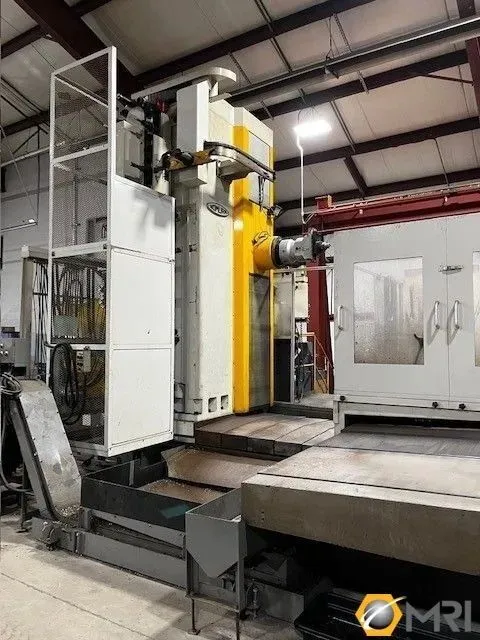

2012 NOMURA HBA135P-R5

FANUC CNC CONTROL
5.3" SPINDLE DIAMETER
OVERSIZED LARGE DIAMETER BALL SCREWS AND FEED MOTORS
NITRIDED HARDENED, GROUND AND HAND-LAPPED SPINDLE (HRC 67+)
EXTRA-LARGE SPINDLE BEARINGS WITH OIL-MIST COOLING DEVICE
FULL CNC CONTROLLED B AXIS ROTARY TABLE WITH DOUBLE WARM
THREE RANGES OF GEARED-HEADSTOCK WITH 60HP SPINDLE MOTOR (2,930 FT. LBS)
THE BED, THE SADDLE, THE COLUMN AND THE TABLE ARE OF HIGH GRADE FC 300 IRON
ALL THE SLIDEWAYS ARE HARDENED AND GROUND
THE MATING SURFACES ARE COATED WITH A FLUORINE-RESIN AND FORCED LUBRICATED
CHIP CONVEYOR
PROBE
COGS HEAD NOT INCLUDED
