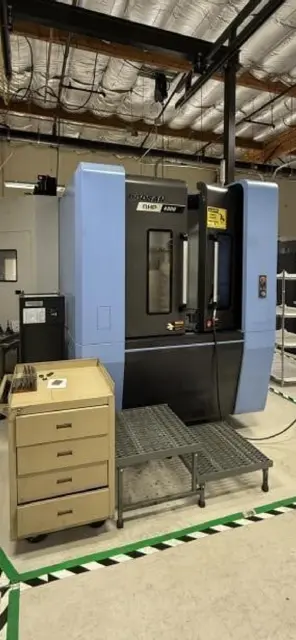

2018 DOOSAN NHP 4000

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
DOOSAN
Model:
NHP 4000
Year:
2018
Stock #:
210755
Status:
For Sale

Description

2018 DOOSAN NHP 4000 Machining Center - Horizontal, features X-axis travel: 22", Y: 25.2", Z: 26". Equipped with FANUC control, 60-tool changer, coolant system, chip conveyor. Spindle: CAT 40, 40.2 hp, 15000 rpm. Max workpiece: 24.8" x 35.4".

X-AXIS TRAVEL22"558.8 mm
Y-AXIS TRAVEL25.2"640.08 mm
Z-AXIS TRAVEL26"660.4 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR40.2 hp
SPINDLE SPEED15000 rpm15,000 RPM
MAX WORKPIECE SIZE24.8" X 35.4"24.8" X 35.4"
RAPID TRAVERSE23622362
TOOL CAPACITY (ATC)6060
HI-PRESSURE COOLANT SYSTEM1000 psi
CHIP CONVEYORYesYes
ControlCNC (FANUC)CNC (FANUC)
Dimensions194" X 90.6" X 105.9"194" X 90.6" X 105.9"
Weight21,384 LBS.21,384 LBS.

VOLTAGE: 220v
KVA: 83.87
SOURCE: AC220V 50/69HZ 3ph 9.5A
COMPRESSOR:1100W
REFRIDGERANT R410A 1250g

FANUC CONTROL.
FULL 4TH
60 TOOLS TOOL CHANGER
TOOL SETTER
PROBE
HYDROCOOL HKC-110T(S) 1000 PSI HIGH PRESSURE COOLANT
LNS MH250 FILTERING CHIP CONVEYOR

MFG: 7/18/2018
