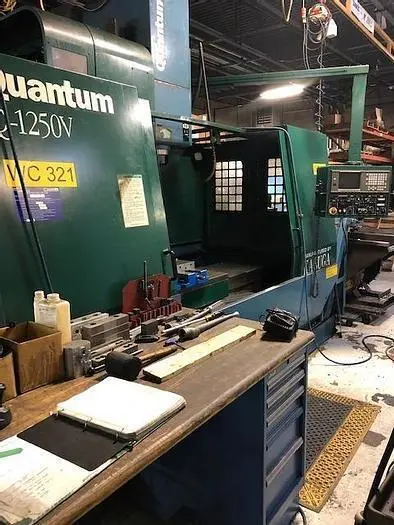

KASUGA QUANTUM Q-1250V
Have one to sell?
ConditionUsed
1 available
TABLE LOAD CAPACITY: 3,300 lbs
SPINDLE CENTER TO COLUMN: 27.5"
MAX. TOOL WEIGHT: 33 LBS.
MAX. TOOL LENGTH: 11.8"
MAX. TOOL DIAMETER: 4.9"/full
FANUC 18M CNC CONTROL
RIGID TAPPING
SIDE MOUNT TOOL CHANGER, 30 TOOLS. CT-50
CHIP CONVEYOR
ALL AVAILABLE MANUALS
Imperial
| X Travel | 50 in |
| Y Travel | 25 in |
| Z Travel | 24.5 |
| Spindle Speed | 6,000 RPM |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 23.6 in |
| Table Size (L) | 63 in |
| Main Spindle Motor | 25 |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 6.3" - 31.9" |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 787 IPM/ 787 IPM/. 590 IPM |
| Control | CNC (FANUC 18M) |
| Dimensions | 190" x 127” x 113" |
| Weight | 20,000 LBS. |
TABLE LOAD CAPACITY: 3,300 lbs
SPINDLE CENTER TO COLUMN: 27.5"
MAX. TOOL WEIGHT: 33 LBS.
MAX. TOOL LENGTH: 11.8"
MAX. TOOL DIAMETER: 4.9"/full
FANUC 18M CNC CONTROL
RIGID TAPPING
SIDE MOUNT TOOL CHANGER, 30 TOOLS. CT-50
CHIP CONVEYOR
ALL AVAILABLE MANUALS
