MAZAK CYBERTECH TURN 4500M/ 3000
Have one to sell?
ConditionUsed
1 available
Mazak Cybertech Turn 4500M/3000 CNC lathe, 2012 model, equipped with Matrix Nexus Control, 21" Kitagawa chuck, hydraulic steady, chip conveyor, and deep hole boring system. Features 50 HP main spindle, 3000 RPM turret, and tool measuring system.
MATRIX NEXUS CONTROL

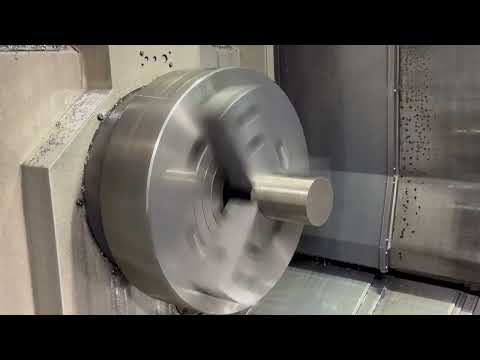

21" KITAGAWA CHUCK
2 POSITION BORING BAR HOLDER
HYDRAULIC STEADY
TAIL STOCK MILLING ON TURRET
C AXIS
CHIP CONVEYOR
OIL CHILLER

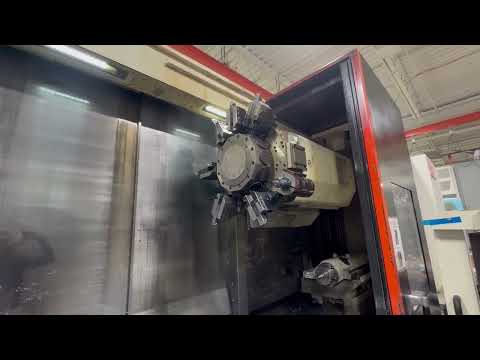

12 POSITION TURRET
HIGH PRESSURE PUMP
REMOTE JOG HANDLE
DEEP HOLE BORING WITH AUTOMATIC CHANGER
AUTO TOOL MEASURING SYSTEM
MIST COLLECTOR
EIA SPIRAL & EIA 3D COMP
ROTATION WITH GEOMETRIC & SCALING EXT DATA I/O
THREAD & INVERSE TIME
AUTO TLM WITH POLAR COORDINATES INPUT
COMPARISON STOP & G54.1 600 VARIABLE OFFSETS
EIA HELICAL TAP CYCLE & EIA PATTERN CYCLE
TILTED WORK PLANE
Mazak Cybertech Turn 4500M/3000 CNC lathe, 2012 model, equipped with Matrix Nexus Control, 21" Kitagawa chuck, hydraulic steady, chip conveyor, and deep hole boring system. Features 50 HP main spindle, 3000 RPM turret, and tool measuring system.
Imperial
| Maximum Swing | 33.88" |
| Max Turning Diameter | 31.88" |
| Main Spindle Bore/Max Bar Capacity | 7.28'/ 5.5" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 120" |
| X-Axis Travel (X1, X2, X3) | 21.375" |
| Z-Axis Travel (Z1, Z2, Z3) | 123.25" |
| C-Axis Indexing (1, 2) | .001 Deg |
| W-Axis Travel Sub Spindle | 100.39 in |
| Main Spindle Chuck Size | 21" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Speed | 1,600 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 |
| Rear Chuck | No |
| Rear Chuck Type | Manual |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 3000 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |

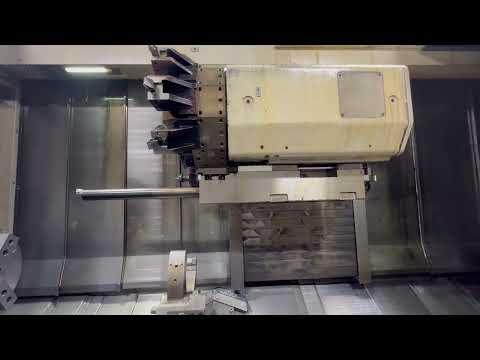

| Long Boring Bar Stocker | 2 POSITION BAR HOLDER |
| Long Boring Bar Holder | Yes |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Multi Tap Transformer | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 284" X 98" X 111" |
| Weight | 35,715 LBS. |
MATRIX NEXUS CONTROL
21" KITAGAWA CHUCK
2 POSITION BORING BAR HOLDER
HYDRAULIC STEADY
TAIL STOCK MILLING ON TURRET
C AXIS
CHIP CONVEYOR
OIL CHILLER
12 POSITION TURRET
HIGH PRESSURE PUMP
REMOTE JOG HANDLE
DEEP HOLE BORING WITH AUTOMATIC CHANGER
AUTO TOOL MEASURING SYSTEM
MIST COLLECTOR
EIA SPIRAL & EIA 3D COMP
ROTATION WITH GEOMETRIC & SCALING EXT DATA I/O
THREAD & INVERSE TIME
AUTO TLM WITH POLAR COORDINATES INPUT
COMPARISON STOP & G54.1 600 VARIABLE OFFSETS
EIA HELICAL TAP CYCLE & EIA PATTERN CYCLE
TILTED WORK PLANE
