MAZAK QTN350-II MSY & LNS BAR FEEDER
Have one to sell?
ConditionUsed
1 available

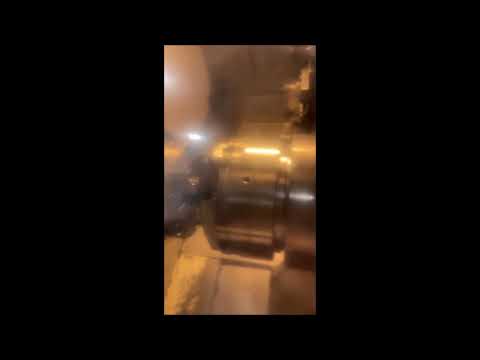

MAZAK QTN 350MSY CNC Lathe from 2009 features multi-axis capabilities with a max swing of 29.5" and 25.6" turning diameter. Includes sub spindle, bar feeder, live milling, high-pressure coolant system, and Mazatrol Matrix Nexus Control. Cutting time: 9,616 hrs.
MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)
15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS

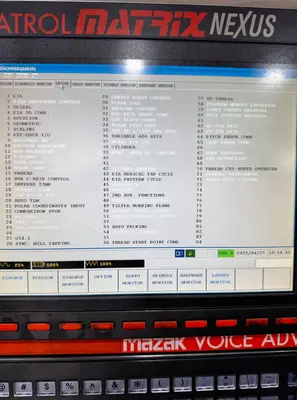

SEE PHOTOS FOR FULL LIST OF MAZATROL CONTROL OPTIONS
** AS OF APRIL 2025, CUTTING TIME – 9,616 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $350,000+
** MACHINE CUT PRIMARILY ALUMINUM & CARBON STEEL
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** FULL LIST OF MAZATROL CONTROL OPTIONS SHOWN IN PHOTOS
** MIST COLLECTOR SHOWN IN PHOTOS IS NOT INCLUDED WITH THE MACHINE
** ALL TOOL HOLDERS SHOWN IN THE TURRET WILL GO WITH THE MACHINE (NOT THE INSERTS)
MAZAK QTN 350MSY CNC Lathe from 2009 features multi-axis capabilities with a max swing of 29.5" and 25.6" turning diameter. Includes sub spindle, bar feeder, live milling, high-pressure coolant system, and Mazatrol Matrix Nexus Control. Cutting time: 9,616 hrs.
Imperial
| Maximum Swing | 29.5" |
| Max Turning Diameter | 25.6" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Cutting Length | 25.6" |
| X-Axis Travel (X1, X2, X3) | 11" |
| Z-Axis Travel (Z1, Z2, Z3) | 26.25 |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | .0001 |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1299 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 125" x 80" x 80" |
| Weight | 16,500 LBS |
MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)
15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS
SEE PHOTOS FOR FULL LIST OF MAZATROL CONTROL OPTIONS
** AS OF APRIL 2025, CUTTING TIME – 9,616 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $350,000+
** MACHINE CUT PRIMARILY ALUMINUM & CARBON STEEL
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** FULL LIST OF MAZATROL CONTROL OPTIONS SHOWN IN PHOTOS
** MIST COLLECTOR SHOWN IN PHOTOS IS NOT INCLUDED WITH THE MACHINE
** ALL TOOL HOLDERS SHOWN IN THE TURRET WILL GO WITH THE MACHINE (NOT THE INSERTS)
