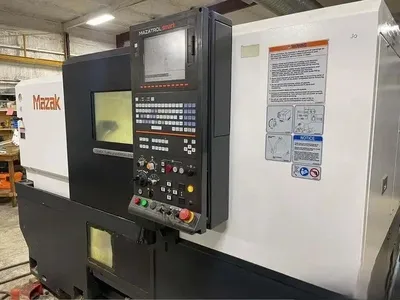

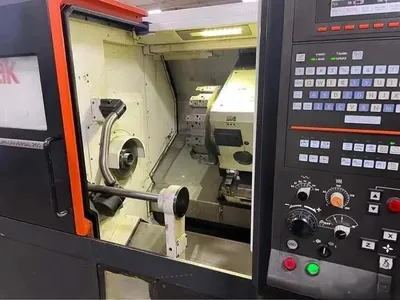

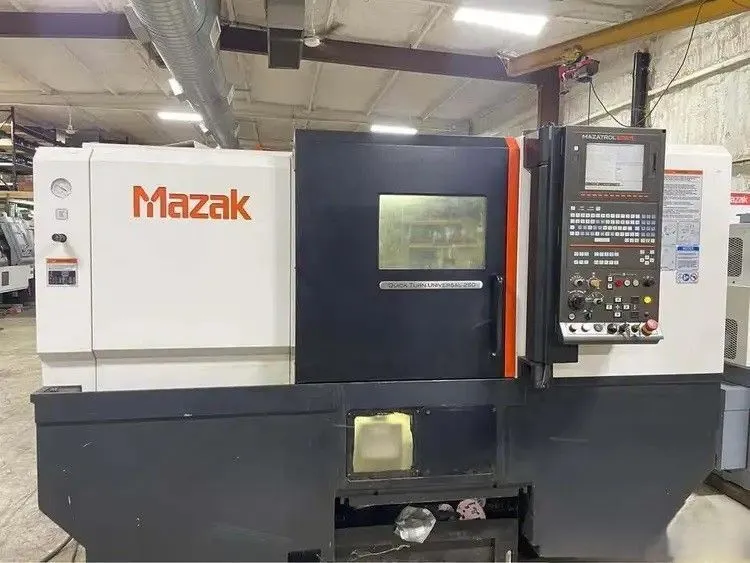

2015 MAZAK QTU 250 UNIVERSAL
Have one to sell?
ConditionUsed
1 available
2015 MAZAK QTU 250 UNIVERSAL CNC lathe, 2-axis, used. Features: 27.4" max swing, 16.25" turning diameter, 4500 RPM spindle, 20 hp motor, 12 tool turret, 8" hydraulic chuck. Equipped with Mazatrol Smart control, tailstock, and chip conveyor.
MAZATROL SMART CONTROL
TAILSTOCK
CHIP CONVEYOR
2015 MAZAK QTU 250 UNIVERSAL CNC lathe, 2-axis, used. Features: 27.4" max swing, 16.25" turning diameter, 4500 RPM spindle, 20 hp motor, 12 tool turret, 8" hydraulic chuck. Equipped with Mazatrol Smart control, tailstock, and chip conveyor.
Imperial
| Max. Swing | 27.4" |
| Max Turning Diameter | 16.25" |
| Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Z Travel | 25" |
| X Travel | 8.5" |
| Machining Length | 23.66" |
| Chuck Size | 8" |
| Chuck Type | Hydraullic |
| Spindle Motor | 20 hp |
| Spindle Speeds (RPM) | 4500 |
| Spindle Bore/Bar Capacity | 2.99 in |
| Max. Bar Capacity | 2.5" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMART) |
| Dimensions | 108″ x 84″ x 90″ |
| Weight | 11,500 LBS |
MAZATROL SMART CONTROL
TAILSTOCK
CHIP CONVEYOR
