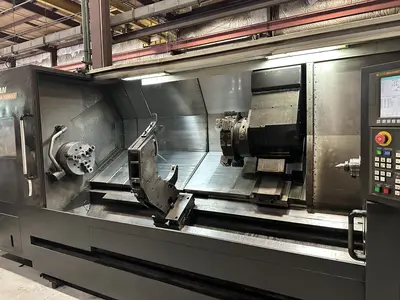

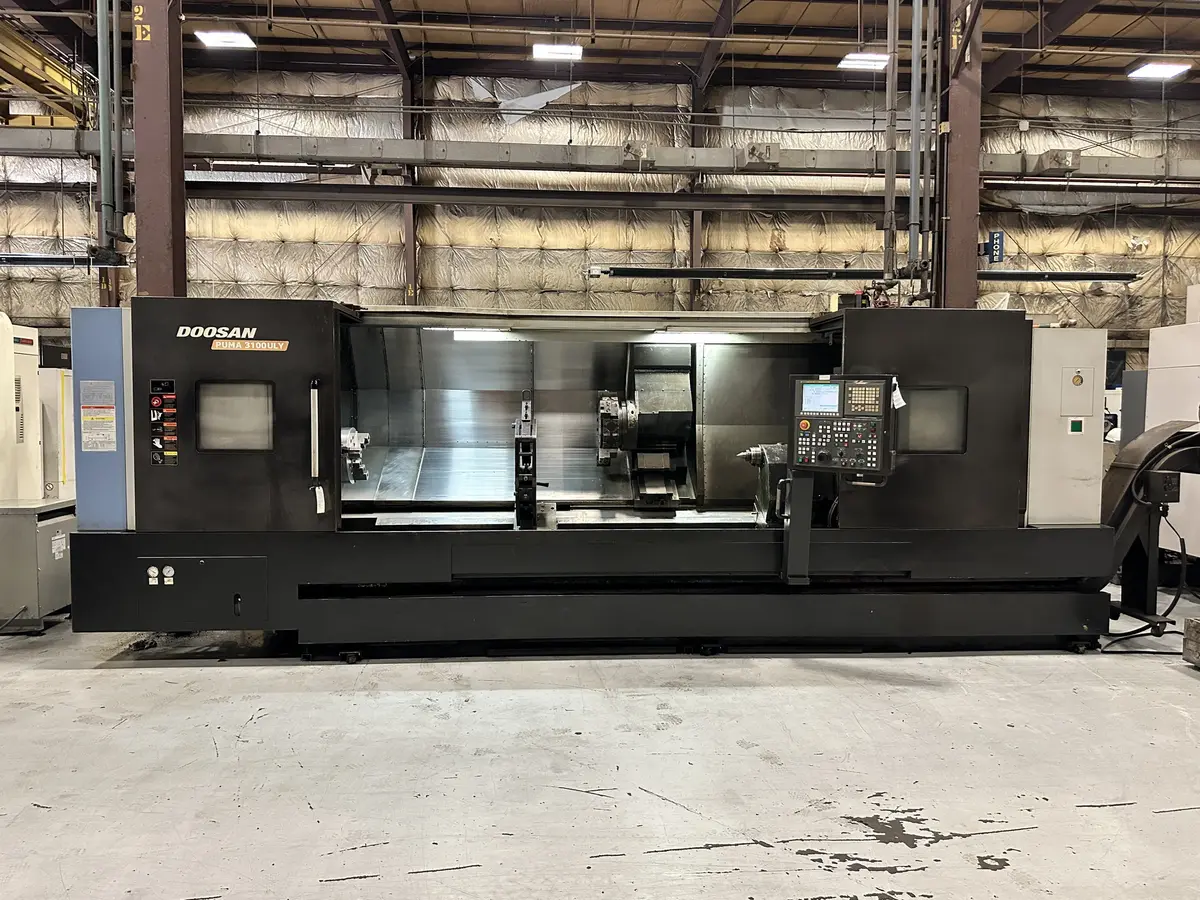

DOOSAN PUMA 3100 ULY
Have one to sell?
ConditionUsed
1 available
2010 DOOSAN PUMA 3100 ULY CNC Lathe for sale, featuring a 33.46" max swing, 16.53" turn diameter, and 123" cutting length. Equipped with FANUC Oi-TD Control, Y-axis, live milling, hydraulic chuck, and more. Machine is in stock for immediate sale.
FANUC Oi-TD CNC CONTROL
MANUAL GUIDE i
Y-AXIS
LIVE MILLING
15", 3-JAW KITAGAWA B-15 HYDRAULIC CHUCK
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
CHIP BLASTER MODEL JV40 HIGH-PRESSURE COOLANT UNIT
RIP 216 MANUAL STEADY REST W/BASE
* CAPACITY: 0.5" - 16"
MISC. STATIC AND DRIVEN TOOL HOLDERS INCLUDED (AS SEEN IN TURRET PHOTO)
*** MACHINE IS IN STOCK, AVAILABLE FOR IMMEDIATE SALE
2010 DOOSAN PUMA 3100 ULY CNC Lathe for sale, featuring a 33.46" max swing, 16.53" turn diameter, and 123" cutting length. Equipped with FANUC Oi-TD Control, Y-axis, live milling, hydraulic chuck, and more. Machine is in stock for immediate sale.
Imperial
| Maximum Swing | 33.46" |
| Max Turning Diameter | 16.53" |
| Main Spindle Bore/Max Bar Capacity | 4.52/ 4.05 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 26.38" |
| Maximum Cutting Length | 123" |
| Distance Between Spindles | 125.59" |
| X-Axis Travel (X1, X2, X3) | 11.53" |
| Z-Axis Travel (Z1, Z2, Z3) | 125.59" |
| Y-Axis Travel (Y1, Y2, Y3) | 5.12" |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.52" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30/ 40 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (FANUC 0i-TD) |
| Dimensions | 300" X 90" X 91" |
| Weight | 29,000 LBS. |
FANUC Oi-TD CNC CONTROL
MANUAL GUIDE i
Y-AXIS
LIVE MILLING
15", 3-JAW KITAGAWA B-15 HYDRAULIC CHUCK
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
CHIP BLASTER MODEL JV40 HIGH-PRESSURE COOLANT UNIT
RIP 216 MANUAL STEADY REST W/BASE
* CAPACITY: 0.5" - 16"
MISC. STATIC AND DRIVEN TOOL HOLDERS INCLUDED (AS SEEN IN TURRET PHOTO)
*** MACHINE IS IN STOCK, AVAILABLE FOR IMMEDIATE SALE
