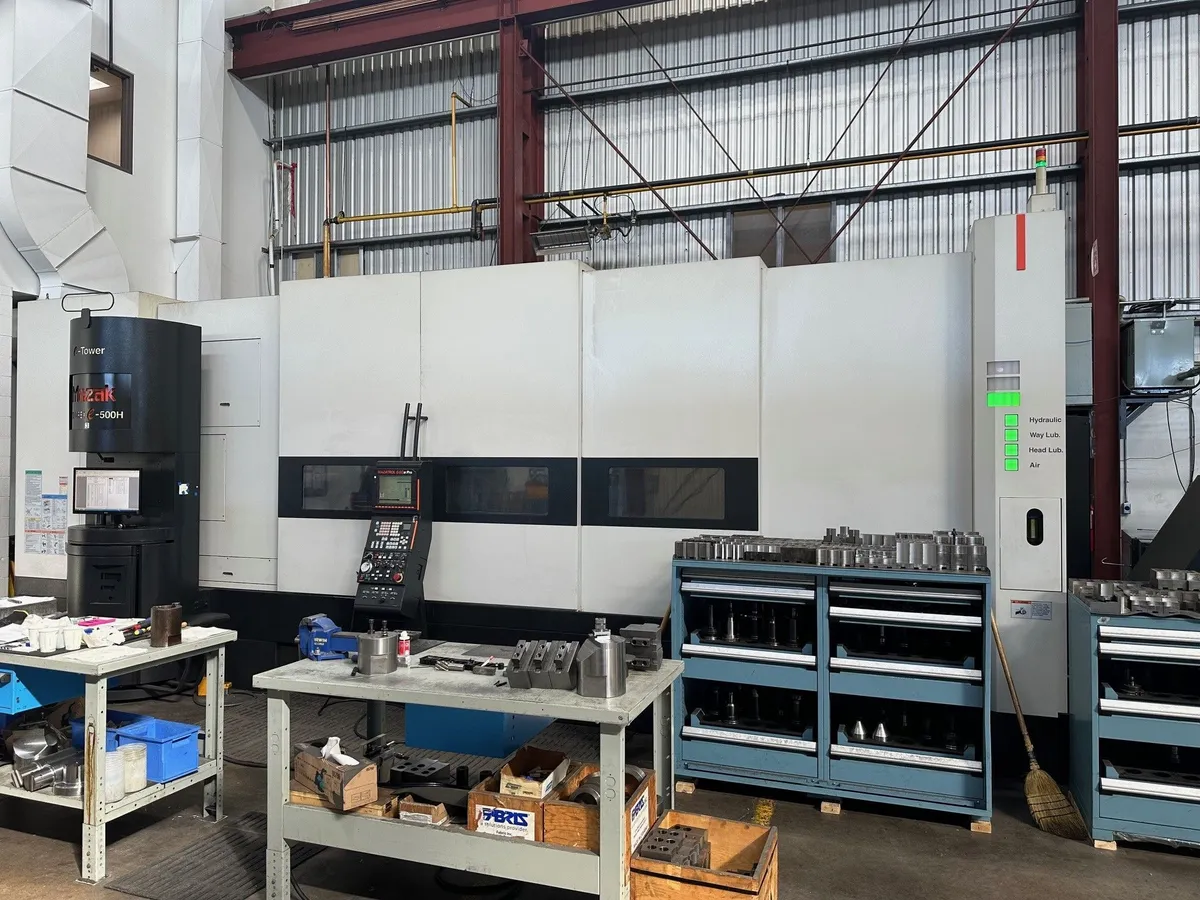

MAZAK INTEGREX E-500H-3000U
Have one to sell?
ConditionUsed
1 available

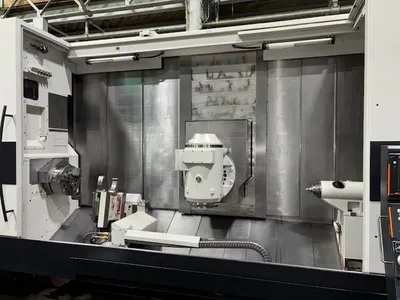

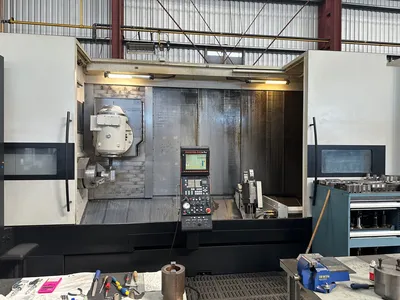

MAZAK INTEGREX E-500H-3000U 2006 CNC lathe available. Features 32.28" swing, 122.91" distance between centers, 15" hydraulic chuck, and a 2000 RPM spindle. Equipped with MAZATROL 640M PRO CNC, 80-tool magazine, high-pressure coolant, and more.

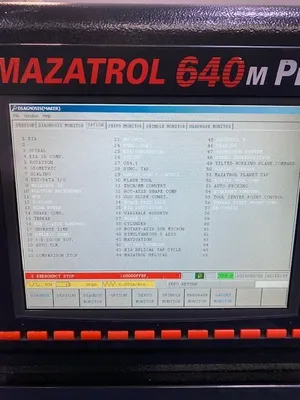

MAZATROL 640M PRO CNC CONTROL

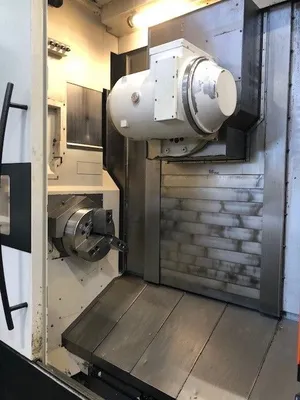

15" B15 KITAGAWA 3-JAW HYDRAULIC CHUCK
80 TOOL MAGAZINE

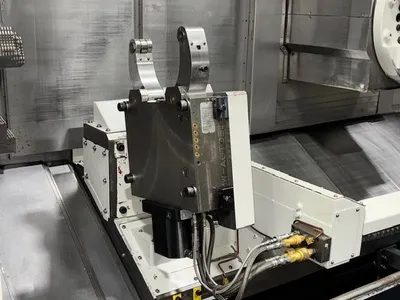

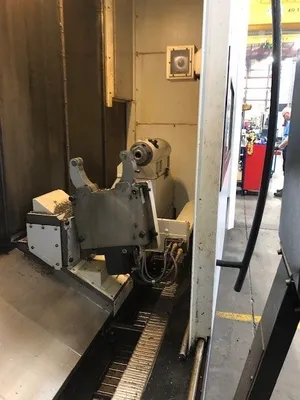

SMW/LNS SLU-4.0/Z STEADYREST 1.181" - 9.646"

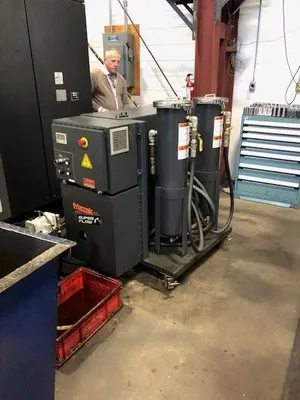

MAZAK SUPER FLOW 12 1,000 PSI COOLANT
AUTOMATIC PECK CYCLE
AUTOMATIC POWER OFF
HIGH/LOW CHUCK PRESSURE
LASER MEASUREMENT
CONSEP 2000 CHIP CONVEYOR
MAZAK INTEGREX E-500H-3000U 2006 CNC lathe available. Features 32.28" swing, 122.91" distance between centers, 15" hydraulic chuck, and a 2000 RPM spindle. Equipped with MAZATROL 640M PRO CNC, 80-tool magazine, high-pressure coolant, and more.
Imperial
| Maximum Swing | 32.28" |
| Max Turning Diameter | 32.28" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.09" |

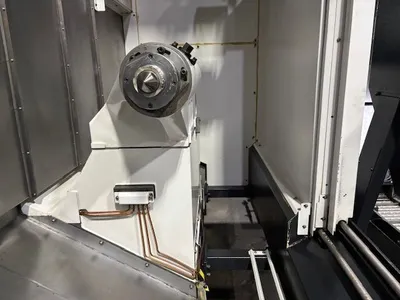

| Tail Stock/Sub Spindle | TAILSTOCK |
| Distance Between Centers | 122.91" |
| X-Axis Travel (X1, X2, X3) | 34.25" |
| Z-Axis Travel (Z1, Z2, Z3) | 122.91" |
| Y-Axis Travel (Y1, Y2, Y3) | 19.69" |
| C-Axis Indexing (1, 2) | 0.001 DEGREE |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4.09" |
| Main Spindle Speed | 2,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| ATC Magazine Capacity | 80 |
| Turret Rotary Tool Spindle Speed 1, 2 | 10000 |
| Turret Rotary Tool Horse Power 1, 2 | 25 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Control | CNC (MAZATROL FUSION 640M PRO) |
| Weight | 63,051 LBS. |
MAZATROL 640M PRO CNC CONTROL
15" B15 KITAGAWA 3-JAW HYDRAULIC CHUCK
80 TOOL MAGAZINE
SMW/LNS SLU-4.0/Z STEADYREST 1.181" - 9.646"
MAZAK SUPER FLOW 12 1,000 PSI COOLANT
AUTOMATIC PECK CYCLE
AUTOMATIC POWER OFF
HIGH/LOW CHUCK PRESSURE
LASER MEASUREMENT
CONSEP 2000 CHIP CONVEYOR
