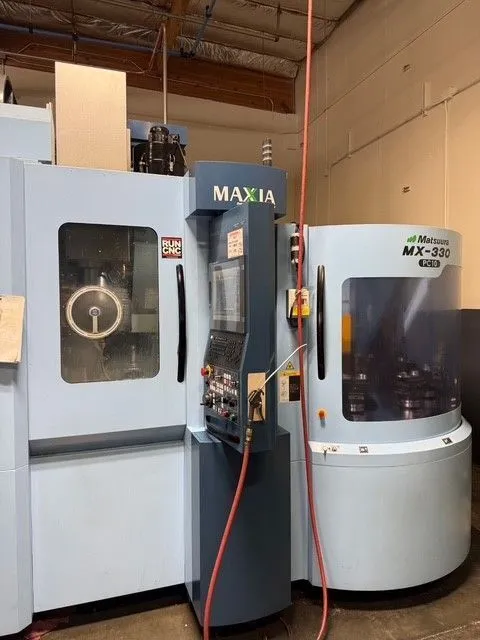

2021 MATSUURA MX330 PC10
Have one to sell?
ConditionUsed
1 available
2021 MATSUURA MX330 PC10 used vertical machining center. Features a 20,000 RPM spindle, CAT 40 taper, and 90-tool capacity. Coolant through 1000 psi, equipped with Renishaw probes and 5500 cut hours. Ideal for precision work with multiple pallets.
MATSUURA G-TECH 31iB
TOUCHSCREEN DISPLAY CONTROL
20,000 RPM SPINDLE (OIL/ AIR LUBRICATION
CT 40 SPINDLE
VACUUM TYPE COOLANT THRU PREP
90 TOOL CHAIN TYPE ATC
SCALE FEEDBACK (X, Y, Z)HEIDENHAIN SCALE
AIR BLOWFOR CHIP SWARF REMOVAL
ENVIRONMENTAL THERMAL DISPLACEMENT COMPENSATION
SPIRAL AUGERS
PC 10 PALLET CHANGER
8 SETS OF EXTRA M FUNCTION
SPINDLE LOAD MONITORING SYSTEM
3 COLOR PATROL LIGHT (RED, YELLOW, GREEN)
ROTARY WIPER SYSTEM
TOOL PRE-CHECK FUNCTION
3-DIMENSIONAL CUTTER COMENSATION
WEEKLY TIMER
RENISHAW NC-4 ATLM LASER PROBE
RENISHAW OMP 400 IPM PROBE
ATS FIXED FLOW 1000 PSI COOLANT THRU THE SPINDLE.
MOSNIC SCRAPER TYPE DRUM FILTER CHIP CONVEYOR
CUT HOURS - 5500
2021 MATSUURA MX330 PC10 used vertical machining center. Features a 20,000 RPM spindle, CAT 40 taper, and 90-tool capacity. Coolant through 1000 psi, equipped with Renishaw probes and 5500 cut hours. Ideal for precision work with multiple pallets.
Imperial
| X Travel | 24.8" |
| Y Travel | 22.04" |
| Z Travel | 20.07" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 90 |
| Table Size (W) | 19.7" |
| Table Size (L) | 19.7" |
| Main Spindle Motor | 3 hp |
| Spindle Taper | CAT 40 |
| Table Type A-Axis Trunnion Tilt Range | -125～+10 |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1574 IPM/ 1574 IPM/ 1574 IPM |
| Control | CNC (MATSUURA G-TECH 31iB) |
MATSUURA G-TECH 31iB
TOUCHSCREEN DISPLAY CONTROL
20,000 RPM SPINDLE (OIL/ AIR LUBRICATION
CT 40 SPINDLE
VACUUM TYPE COOLANT THRU PREP
90 TOOL CHAIN TYPE ATC
SCALE FEEDBACK (X, Y, Z)HEIDENHAIN SCALE
AIR BLOWFOR CHIP SWARF REMOVAL
ENVIRONMENTAL THERMAL DISPLACEMENT COMPENSATION
SPIRAL AUGERS
PC 10 PALLET CHANGER
8 SETS OF EXTRA M FUNCTION
SPINDLE LOAD MONITORING SYSTEM
3 COLOR PATROL LIGHT (RED, YELLOW, GREEN)
ROTARY WIPER SYSTEM
TOOL PRE-CHECK FUNCTION
3-DIMENSIONAL CUTTER COMENSATION
WEEKLY TIMER
RENISHAW NC-4 ATLM LASER PROBE
RENISHAW OMP 400 IPM PROBE
ATS FIXED FLOW 1000 PSI COOLANT THRU THE SPINDLE.
MOSNIC SCRAPER TYPE DRUM FILTER CHIP CONVEYOR
CUT HOURS - 5500
