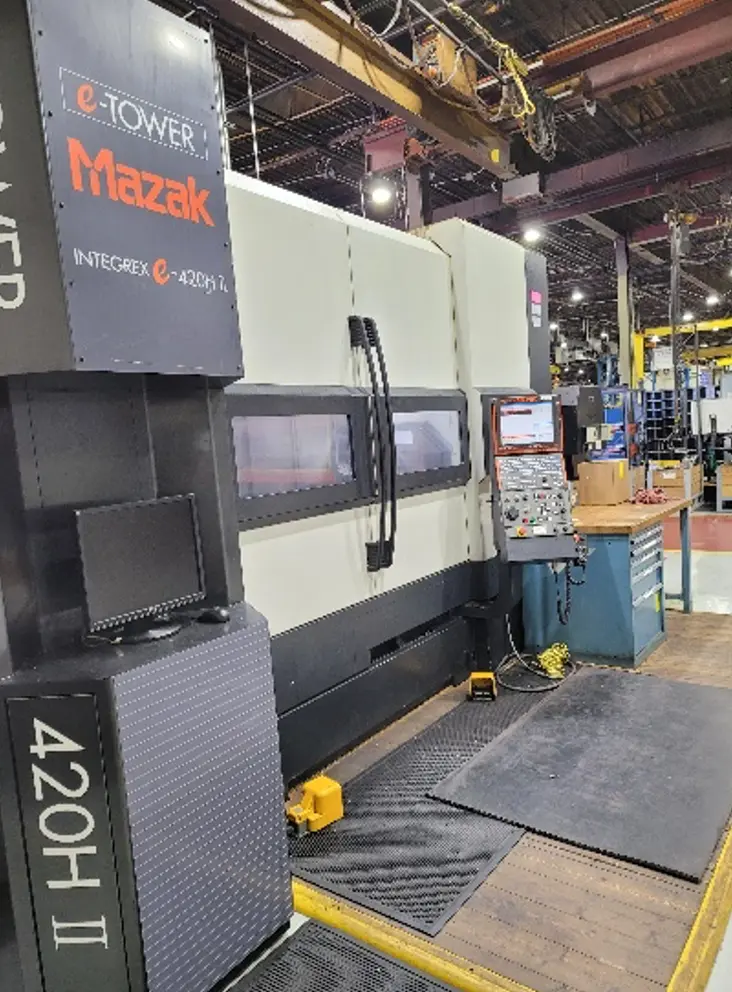

MAZAK INTEGREX e420II-HS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX e420II-HS
Condition:
Excellent
Year:
2007
Stock #:
210778
Status:
For Sale

Description

MAZAK INTEGREX e420II-HS, 2007 CNC lathe with multi-axis capabilities. Features a maximum swing of 26.38", a 24.02" turning diameter, 10,000 RPM milling spindle, hydraulic chucks, and a robust ATC with 90 tools. Ideal for complex machining tasks.

Maximum Swing26.38"670.05 mm
Max Turning Diameter24.02"610.11 mm
Main Spindle Bore/Max Bar Capacity3.46"/ 3.0"3.46"/ 3.0"
Tail Stock/Sub SpindleSUB SPINDLESUB SPINDLE
Maximum Swing Over Cross Slide26.38"670.05 mm
Maximum Cutting Length53"1,346.2 mm
X-Axis Travel (X1, X2, X3)29.1329.13
Z-Axis Travel (Z1, Z2, Z3)54.64/ 30"54.64/ 30"
Y-Axis Travel (Y1, Y2, Y3)16.1416.14
C-Axis Indexing (1, 2)0.00010.0001
Main Spindle Chuck Size15"381 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Bore Size3.583.58
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed0 RPM0 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3535
ATC Magazine Capacity9090
B-Axis Head Indexing-30210 deg-30,210°
B-Axis Milling Spindle Speed10000 rpm10,000 RPM
Chip ConveyorYesYes
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)

5-AXIS CNC OPERATIONS
7 AXES, AND 24.02" TURNING DIAMETER
15" MAIN AND SUB CHUCK,
10,000 RPM MILLING SPINDLE,
80 ATC POSITIONS
