MAZAK QTN 450-II MY/ 120" WITH STEADY REST
Have one to sell?
ConditionUsed
1 available
Mazak QTN 450-II MY/120" 2010 multi-axis CNC lathe with steady rest, maximum swing 29.5", air chucks, 12 turret positions, and Mazatrol Matrix Nexus control. Features include a high-pressure coolant system, tool measurement, and chip conveyor.

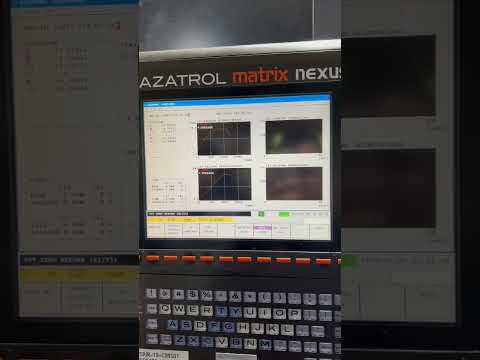

MAZATROL MATRIX NEXUS CONTROL
ATS/SYS DUAL BT-7.3 ES AIR CHUCK 7.3" THRU HOLE
(FRONT AND REAR MOUNT CHUCK)
JAW JOGGING SYSTEM FOR FRONT MOUNT CHUCK
PREPARATION 1000PSI SUPERFLOW
MAZAK SUPER FLOW V8 VARIABLE HIGH
PRESSURE COOLANT
ELECTRICAL
120" RE-THREADING
AUTO FRONT DOOR OPEN/CLOSE FOR 120" BED LENGTH
SMW STEADY REST PREP SINGLE/AUTO W/FLUSH CLNT
SMW STEADY REST
NOTE: This is an Auto Base Controlled by the
Lower
CHIP CONVEYOR SIDE EXIT 3000U (HINGE)
COOLANT PAN
STANDARD TOOL PACKAGE
Mazak QTN 450-II MY/120" 2010 multi-axis CNC lathe with steady rest, maximum swing 29.5", air chucks, 12 turret positions, and Mazatrol Matrix Nexus control. Features include a high-pressure coolant system, tool measurement, and chip conveyor.
Imperial
| Maximum Swing | 29.5" |
| Max Turning Diameter | 22.8" |
| Main Spindle Bore/Max Bar Capacity | 7.28"/ 7.28" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 22.8" |
| Maximum Cutting Length | 121.5" |
| X-Axis Travel (X1, X2, X3) | 13.375 |
| Z-Axis Travel (Z1, Z2, Z3) | 121.5 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 5.91" |
| C-Axis Indexing (1, 2) | 0.001 |
| Main Spindle Chuck Size | 20" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 7.28" |
| Main Spindle Maximum Bar Work | 7.28" |
| Main Spindle Speed | 2,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 |
| Rear Chuck Prep | Yes |
| Rear Chuck | Yes |
| Rear Chuck Diameter | 20" |
| Rear Chuck Type | Air |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Work Measuring System (Probe) | YES |
| Y-Axis | Upper Turret |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 591 |
| Rapid Traverse, Z-Axis | 1181 |
| Additional Tooling | Standard Tooling Package |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 243.54" x 109.9" x 103.35" |
| Weight | 47,888 lbs. |
MAZATROL MATRIX NEXUS CONTROL
ATS/SYS DUAL BT-7.3 ES AIR CHUCK 7.3" THRU HOLE
(FRONT AND REAR MOUNT CHUCK)
JAW JOGGING SYSTEM FOR FRONT MOUNT CHUCK
PREPARATION 1000PSI SUPERFLOW
MAZAK SUPER FLOW V8 VARIABLE HIGH
PRESSURE COOLANT
ELECTRICAL
120" RE-THREADING
AUTO FRONT DOOR OPEN/CLOSE FOR 120" BED LENGTH
SMW STEADY REST PREP SINGLE/AUTO W/FLUSH CLNT
SMW STEADY REST
NOTE: This is an Auto Base Controlled by the
Lower
CHIP CONVEYOR SIDE EXIT 3000U (HINGE)
COOLANT PAN
STANDARD TOOL PACKAGE
