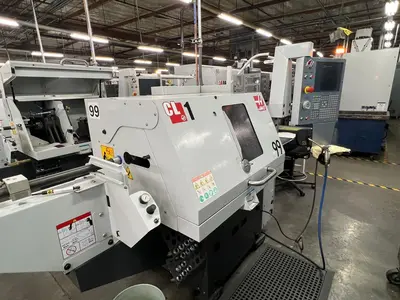

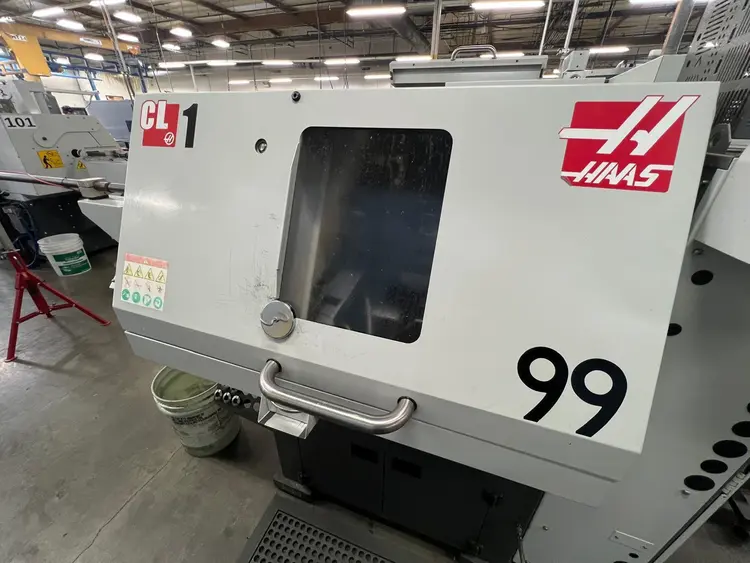

2018 HAAS CL-1 CHUCKER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Must Move Immediately - Priced to Sell - CNC Lathes
Manufacturer:
HAAS
Model:
CL-1
Condition:
Excellent
Year:
2018
Stock #:
210811
Status:
For Sale

Description

2018 HAAS CL-1 CHUCKER, CNC Lathe. Must move immediately. Equipped with HAAS CNC control, 6000 RPM/5 HP spindle, 8 station turret, gang-style tooling, barfeeder. Swing: 11", X/Z travel: 12"/8". Max RPM: 6000. Ethernet, rigid tap, and more.

Swing11"279.4 mm
Max Cutting Dia55
Machining Length12"304.8 mm
Chuck Size4"101.6 mm
Spindle Bore1.21.2
Bar Capacity11
Power5 hp3.7 kW
Max RPM6,000 RPM6,000 RPM
Turning Dia12"304.8 mm
X-Axis Travel1212
Z-Axis Travel88
Gang StyleYesYes
ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)
Dimensions78" X 56" X 80"78" X 56" X 80"
Weight2,020 LBS2,020 LBS

CHUCK SIZE COLLET CHUCK
RAPID RATE Z AXIS 757 IPM
RAPID RATE X AXIS 757 IPM
MAX CUTTING 500 IPM
MAX THRUST X 1149 LBF
MAX THRUST Z 1149 LBF

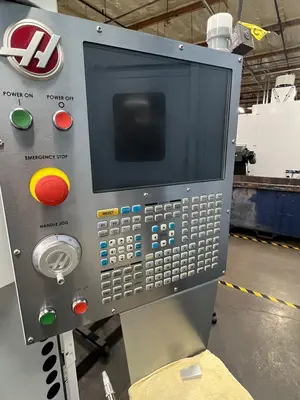

HAAS CNC CONTROL
6000 RPM/ 5 HP SPINDLE/ 5C COLLET NOSE
8 STATION TURRET
GANG-STYLE TOOLING KIT 1/2" CENTERS

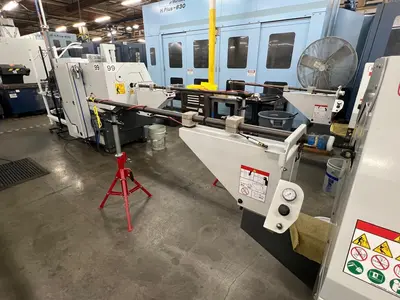

BARFEEDER FOR CL-1/ .25 - 1"
13 GALLON COOLANT TANK 1/4 HP PUMP
PARTS CATCHER CL
ETHERNET
RIGID TAP
SPINDLE ORIENTATION
VISUAL QUICK CODE
MEASUREMENTS IN INCHES
CUT HOURS 6086

Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements, as we have service techs available.
