2018 HAAS CL-1 CHUCKER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Must Move Immediately - Priced to Sell - CNC Lathes
Manufacturer:
HAAS
Model:
CL-1
Condition:
Excellent
Year:
2018
Stock #:
210813
Status:
For Sale

Description

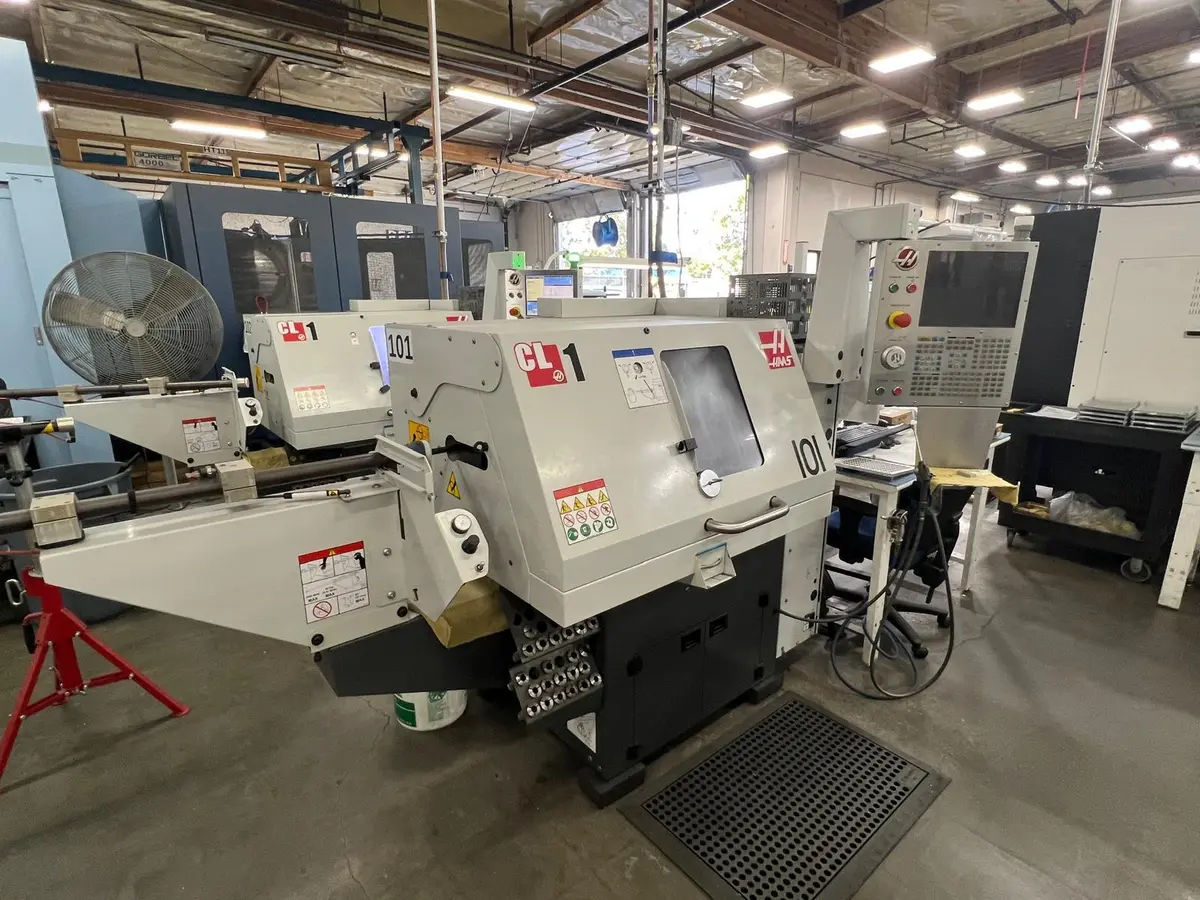

2018 HAAS CL-1 Chuck lathe in good condition with an 11" swing, 12" max cutting diameter, 8" machining length, and 4" chuck size. Features a 5 HP spindle, 6,000 RPM, 8-station turret, gang-style tooling, barfeeder, and HAAS CNC control. Must move now.

Swing11"279.4 mm
Max Cutting Dia4.94.9
Machining Length12"304.8 mm
Chuck Size4"101.6 mm
Spindle Bore1.21.2
Bar Capacity11
Power5 hp3.7 kW
Max RPM6,000 RPM6,000 RPM
Turning Dia5"127 mm
X-Axis Travel1212
Z-Axis Travel88
Turret Positions88
Gang StyleGANG STYLEGANG STYLE
ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)
Dimensions78" X 56" X 80"78" X 56" X 80"
Weight2,020 LBS2,020 LBS

CHUCK SIZE COLLET CHUCK
RAPID RATE Z AXIS 757 IPM
RAPID RATE X AXIS 757 IPM
MAX CUTTING 500 IPM
MAX THRUST X 1149 LBF
MAX THRUST Z 1149 LBF
CUT HOURS 8355

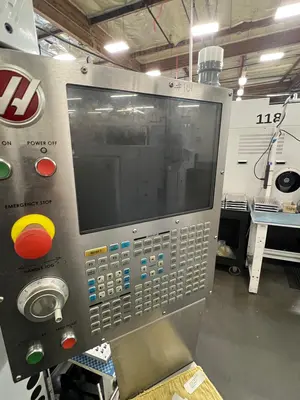

HAAS CNC CONTROL
6000 RPM/ 5 HP SPINDLE/ 5C COLLET NOSE

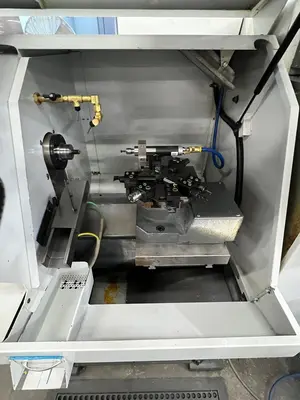

8 STATION TURRET
GANG-STYLE TOOLING KIT 1/2" CENTERS
BARFEEDER FOR CL-1/ .25 - 1"
13 GALLON COOLANT TANK 1/4 HP PUMP
PARTS CATCHER CL
ETHERNET
RIGID TAP
SPINDLE ORIENTATION
VISUAL QUICK CODE
MEASUREMENTS IN INCHES

Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are Sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements as we have service techs available.
