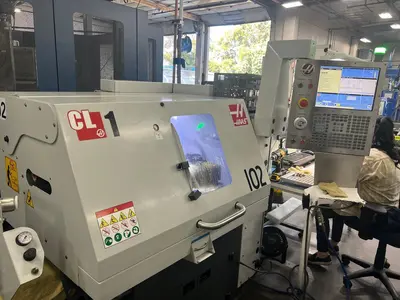

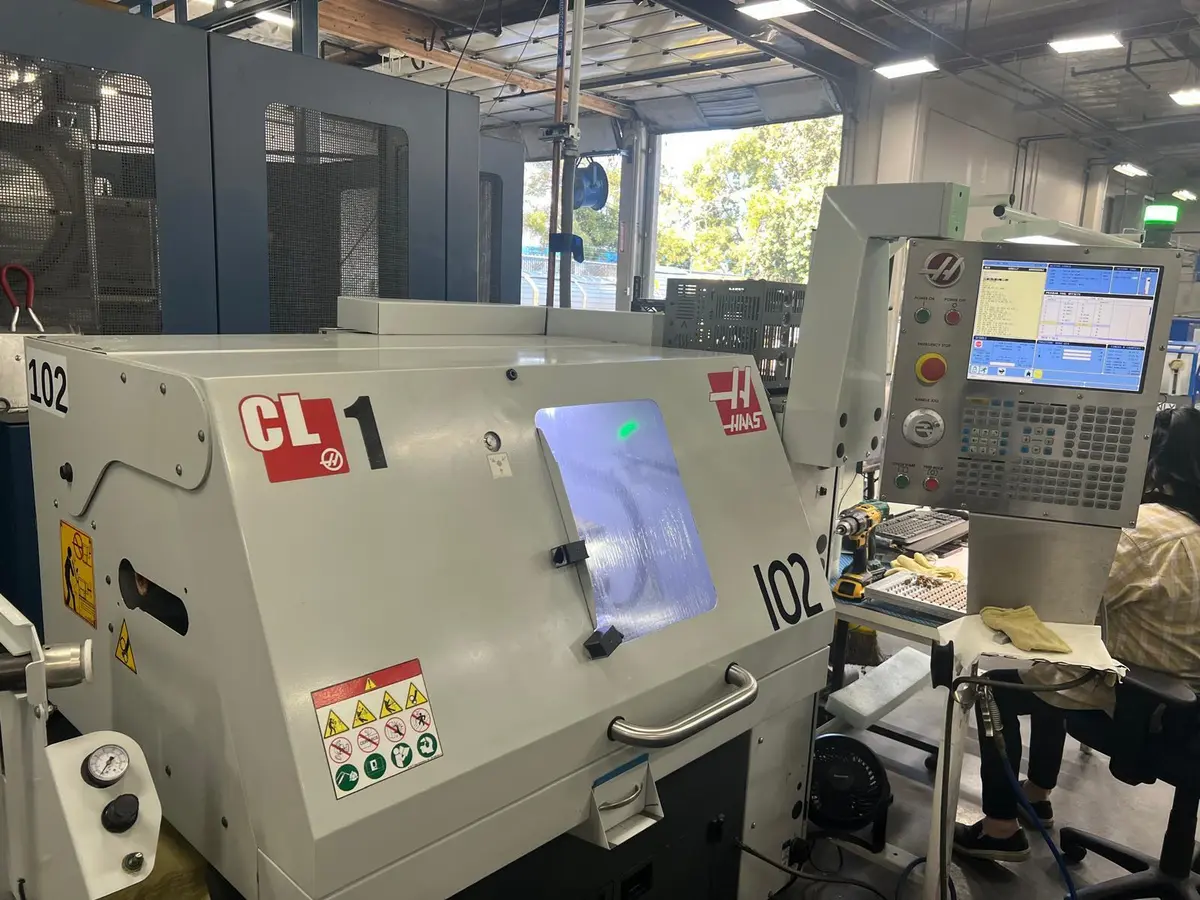

2018 HAAS CL-1 CHUCKER
Have one to sell?
ConditionUsed
1 available
2018 HAAS CL-1 CNC lathe, used but in great condition, ready to move. Features 11" swing, 4" chuck, and 6000 RPM/5 HP spindle. Equipped with HAAS CNC control, barfeeder, and more. Efficient gang-style tooling ensures high productivity. Priced to sell.
CHUCK SIZE COLLET CHUCK
RAPID RATE Z AXIS 757 IPM
RAPID RATE X AXIS 757 IPM
MAX CUTTING 500 IPM
MAX THRUST X 1149 LBF
MAX THRUST Z 1149 LBF
CUT HOURS 8829

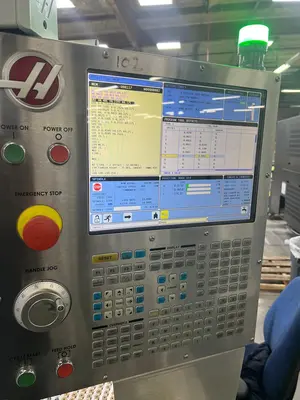

HAAS CNC CONTROL
6000 RPM/ 5 HP SPINDLE/ 5C COLLET NOSE

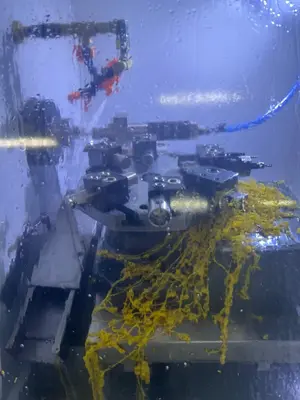

8 STATION TURRET
GANG-STYLE TOOLING KIT 1/2" CENTERS
BARFEEDER FOR CL-1/ .25 - 1"
13 GALLON COOLANT TANK 1/4 HP PUMP
PARTS CATCHER CL
ETHERNET
RIGID TAP
SPINDLE ORIENTATION
VISUAL QUICK CODE
MEASUREMENTS IN INCHES
Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are Sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements as we have service techs available.
2018 HAAS CL-1 CNC lathe, used but in great condition, ready to move. Features 11" swing, 4" chuck, and 6000 RPM/5 HP spindle. Equipped with HAAS CNC control, barfeeder, and more. Efficient gang-style tooling ensures high productivity. Priced to sell.
Imperial
| Swing | 11" |
| Max Cutting Dia | 4.9 |
| Machining Length | 12" |
| Chuck Size | 4" |
| Spindle Bore | 1.2 |
| Bar Capacity | 1 |
| Power | 5 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 5" |
| Tailstock | No |
| X-Axis Travel | 12 |
| Z-Axis Travel | 8 |
| Turret Positions | 8 |
| Gang Style | GANG STYLE |
| Control | CNC (HAAS CNC CONTROL) |
| Dimensions | 78" X 56" X 80" |
| Weight | 2,020 LBS |
CHUCK SIZE COLLET CHUCK
RAPID RATE Z AXIS 757 IPM
RAPID RATE X AXIS 757 IPM
MAX CUTTING 500 IPM
MAX THRUST X 1149 LBF
MAX THRUST Z 1149 LBF
CUT HOURS 8829
HAAS CNC CONTROL
6000 RPM/ 5 HP SPINDLE/ 5C COLLET NOSE
8 STATION TURRET
GANG-STYLE TOOLING KIT 1/2" CENTERS
BARFEEDER FOR CL-1/ .25 - 1"
13 GALLON COOLANT TANK 1/4 HP PUMP
PARTS CATCHER CL
ETHERNET
RIGID TAP
SPINDLE ORIENTATION
VISUAL QUICK CODE
MEASUREMENTS IN INCHES
