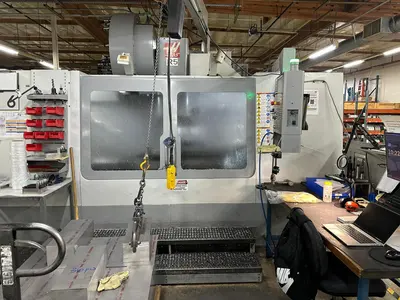

2007 HAAS VF-6B/40 VERTICAL CNC MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Must Move Immediately - Machining Centers - Vertical
Manufacturer:
HAAS
Model:
VF6B/40
Year:
2007
Stock #:
210833
Status:
For Sale

Description

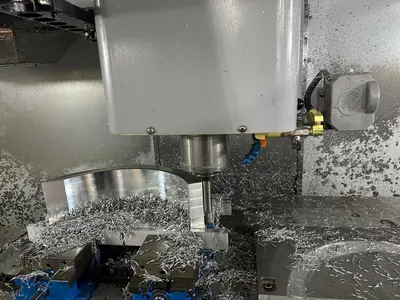

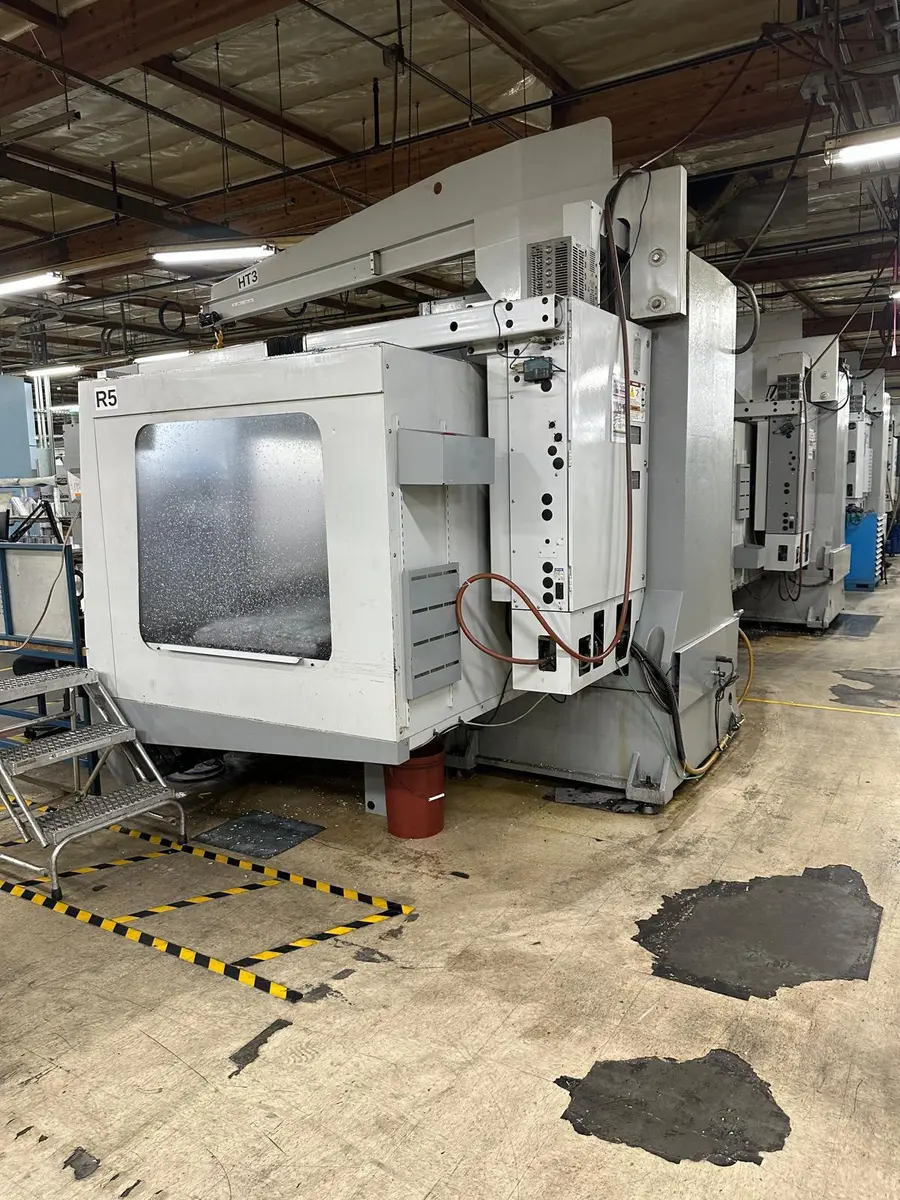

2007 HAAS VF-6B/40 Vertical CNC Machining Center offers a 30 hp, 10,000 RPM spindle with CAT 40 taper, equipped for 4th-axis drive. It features X/Y/Z travels of 64/32/30 and a 64×28 table. Comes with a 24-tool ATC and high-intensity lighting.

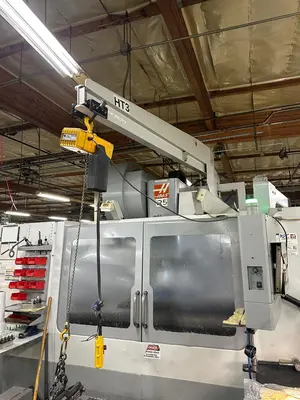

INCLUDES OVERHEAD CRANE ARM WITH 1000 LB CAPACITY

X Travel6464
Y Travel3232
Z Travel3030
Spindle Speed10,000 RPM10,000 RPM

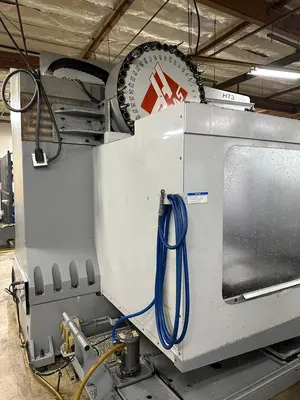

Tool Capacity (ATC)2424

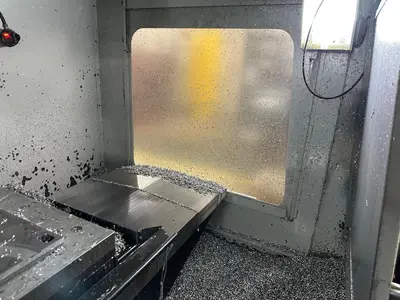

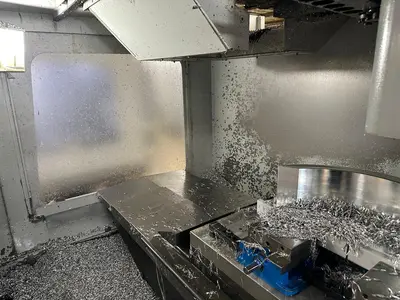

Table Size (W)2828
Table Size (L)6464
Main Spindle Motor30 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4" - 34"4" - 34"
Rapid Traverse Rates: X Axis Y Axis Z AxisX - 540/ Y & Z - 600X - 540/ Y & Z - 600

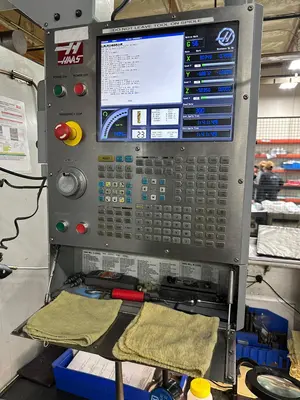

ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)
Dimensions184" X 100" X 124"184" X 100" X 124"
Weight21,300 lb21,300 lb

4TH-AXIS DRIVE AND WIRING ONLY, FOR BRUSHLESS-TYPE ROTARY TABLES

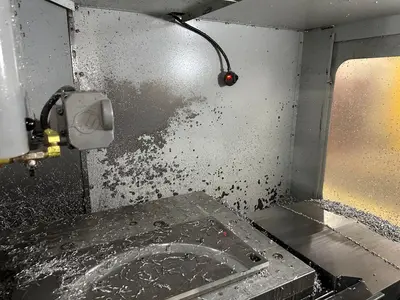

HIGH-INTENSITY LIGHTING; DUAL HALOGEN EXTERNAL LIGHTS W/DOOR SWITCH
30-HP, 10,000-RPM SPINDLE WITH VECTOR DRIVE; VF-6 THROUGH VF-11,
40-TAPER ONLY. REQ. GEAR BOX OPT. $6,795.00
LINEAR SCALES FOR VF-6 (3 AXES) $13,495.00
SIDE-MOUNT TOOL CHANGER, 40-TAPER, 40+1 TOOLS FOR VF-6, VF-7 & VF-10 $6,295.00
OVERHEAD CRANE ARM WITH 1000 LB CAPACITY. DOES NOT INCLUDE LIFTING HOIST $1,595.00
1 GB 2 SPEED 40 TAPER GEAR BOX FOR VF-1 THROUGH VF-11
CUT HOURS 9093

Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements, as we have service techs available.
