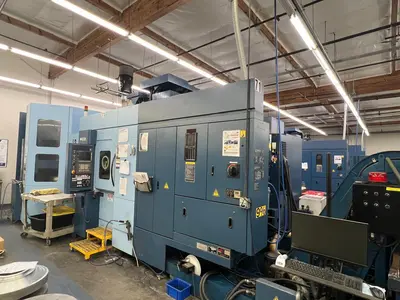

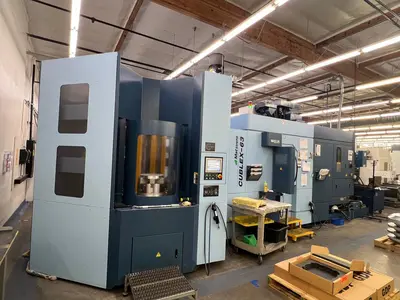

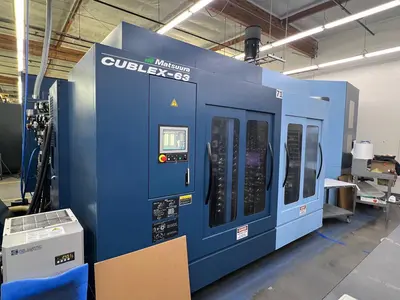

MATSUURA CUBLEX 63V

MATSUURA CUBLEX-63V PC-2,12K $1,180,000.00

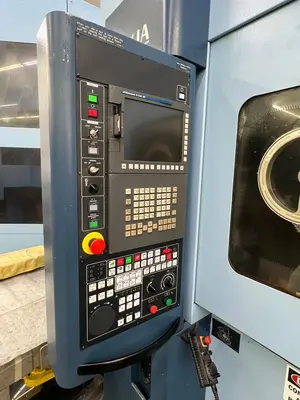

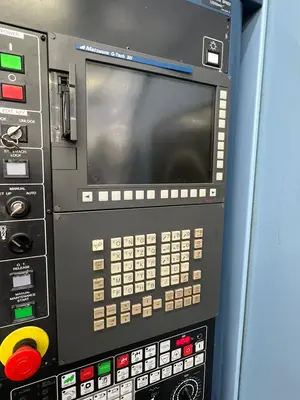

MATSUURA G-TECH 30i/ 5 AXIS

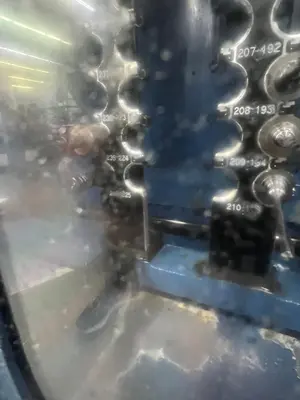

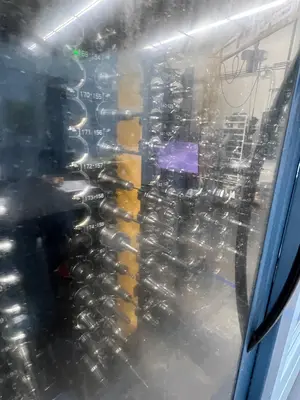

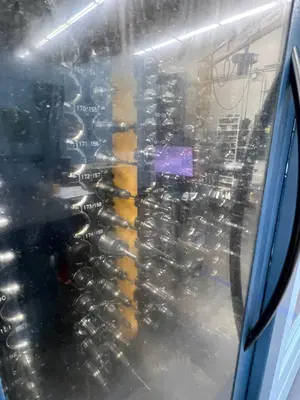

240/240 MATRIX ATC STD
HSK-A63 (ICTM) SPINDLE STD
SCALE FEEDBACK X, Y, Z (HEIDIENHAIN SCALE) STD

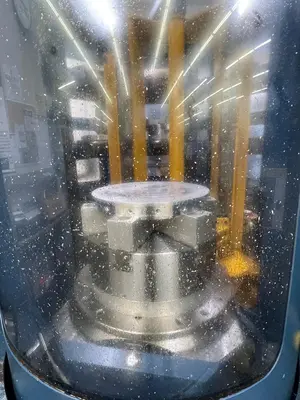

PC-2 CHANGER STD
SPIRAL AUGERS STD
COOLANT SHOWER SYSTEM STD
AIRBLOW FOR CHIP SWARF REMOVAL STD
VACUUM TYPE COOLANT THRU SPINDLE PREP STD
8 SETS OF EXTRA M FUNCTION STD
SPINDLE LOAD MONITORING FUNCTION FOR MILLING AND TURNING STD
WEEKLY TIMER STD
14 TOOL PRECHECK FUNCTION STD

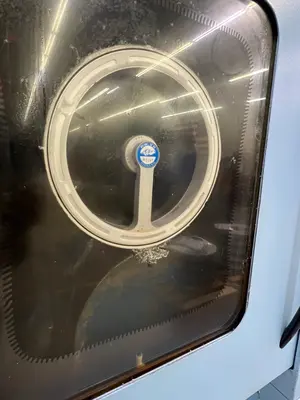

ROTARY WIPER (AIR TYPE) STD
3 COLOR PATROL LIGHT STD
SOFTWARE W/CALIBRATION BALL STD
MMU HIGH SPEED/HIGH PRECISION AND 5 AXIS OPTION PACKAGE WITH IZ-2/150F, NANO
SMOOTHING, OPTIMUM TORQUE ACCELERATION/DECELERATION, TOOL CENTER POINT CONTROL, 3-
DIMENSIONAL CUTTER COMPENSATION, INVERSE TIME FEED (G93), LOOK AHEAD BLOCK EXPANSION TO 1000PCS,
MMU VALUE OPTION PACKAGE WITH NO. OF REGISTERED PROGRAMS (1000PCS), TOOL OFFSET PAIR
999-PAIRS, ADDITION OF WORKPIECE COORDINATE SYSTEM 300-PAIRS, OPTIONAL BLOCK SKIP 9,
PROGRAM RESTART, COORDINATE SYSTEM ROTATION, TOOL LIFE MANAGEMENT, PART PROGRAM STORAGE
CAMPLETE POSTING AND VERIFICATION SOFTWARE STD

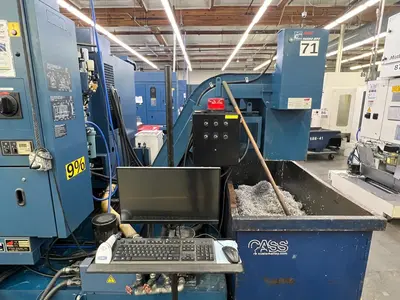

LNS TURBO MICROFINE 2 CHIP CONVEYOR $26,500.00

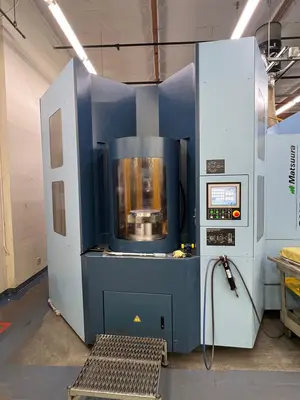

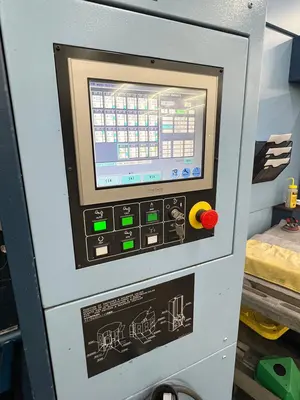

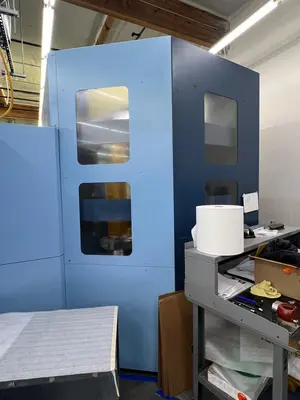

MATSUURA PC-18 TOWER PALLET SYSTEM WITH 18 BUFFER STATIONS

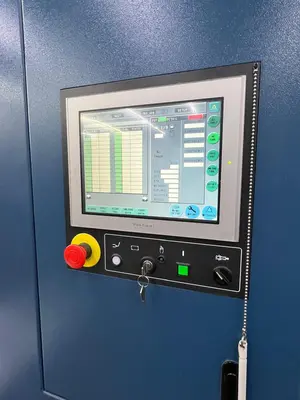

(16) ADDITIONAL PALLETS, PALLET SCHEDULER, LOAD STATION, SAFETY FENCE
1000 PSI CTS SYSTEM LIST PRICE $38,250.00
LIST PRICE SUBTOTAL OF ALL THE ABOVE LINE ITEMS $1,244,750.00
CUT HOURS 2674

Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are sold "As Is, Where Is" As inspected unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements as we have service techs available.
