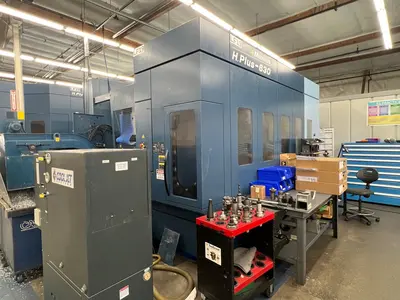

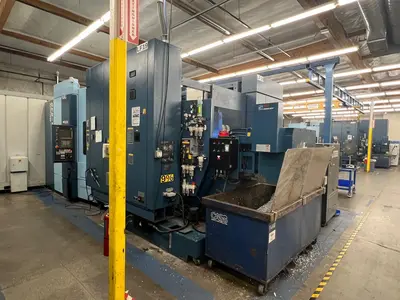

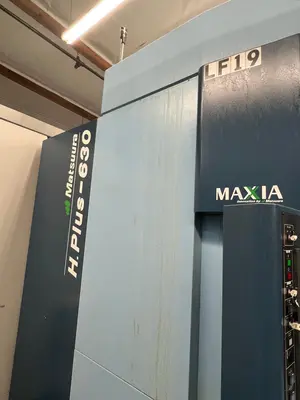

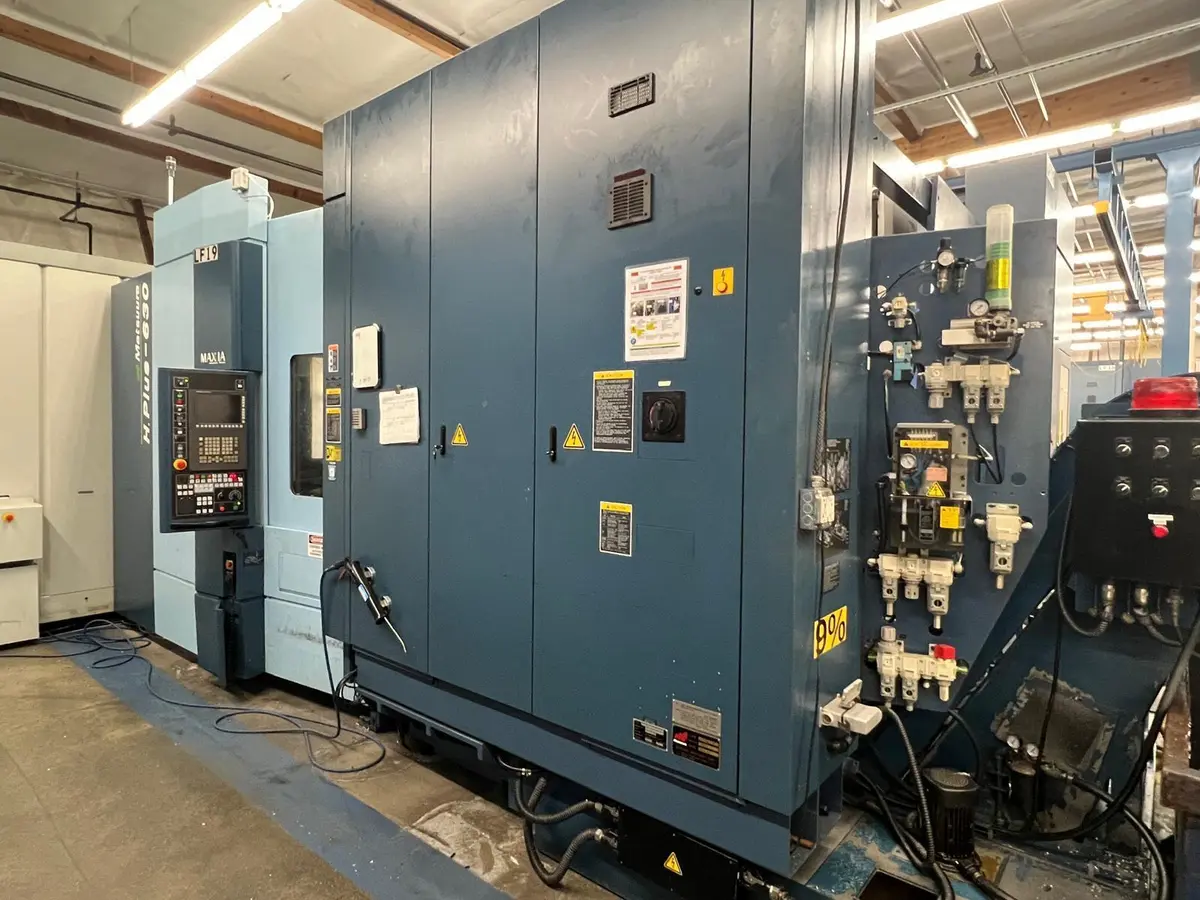

2014 MATSUURA H-PLUS 630

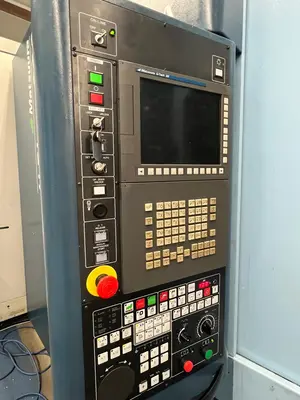

MATSUURA HPLUS 630N PC2, CAT 50 BIG PLUS SPINDLE, FANUC 30I CONTROL $665,000.00
1 12,000 RPM BIG PLUS SPINDLE ( OIL-AIR LUBRICATION) $0.00
1 120 CHAIN ATC $0.00
1 4TH AXIS TABLE $0.00
1 SCALE FEEDBACK X,Y,Z $0.00
1 COOLANT SHOWER $0.00
1 PORTABLE MANUAL PULSE GENERATOR $0.00
1 8 SETS OF M FUNCTIONS $0.00
1 ROTARY WIPER $0.00
1 SPIRAL AUGERS $0.00
1 VACUUM TYPE COOLANT THRU SPINDLE PREP $0.00
1 SPINDLE LOAD MONITOR $0.00
1 MATSUURA HIGH SPEED OPTION PACKAGE WITH: $0.00
1 IZ-2-150-AICC W/ 600 BLOCK LOOKAHEAD $0.00
1 NANO SMOOTHING $0.00
1 DATA SERVER 1.3GB $0.00
1 1000 REGISTERED PROGRAMS $0.00
1 999 TOOL OFFSETS $0.00
300 PAIRS WORK COORDINATES $0.00
1 9 OPTIONAL BLOCK SKIP $0.00
1 TOOL LIFE MANAGEMENT $0.00
1 8 MB MEMORY $0.00
1 PROGRAM RESTART $0.00
1 HIGH SPEED SKIP $0.00
1 COMMON VARIABLE EXPANSION ( #100-#199/#500-#999) $0.00
1 COORDINATE SYSTEMS ROTATION $0.00
1 MASTUURA / FASTEMS INTERFACE $9,900.00

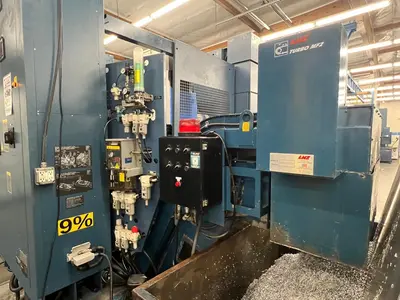

1 TURBO MICROFINE CHIP MANAGEMENT SYSTEM $29,500.00
1 RENISHAW NC4 LASER PROBE $14,500.00
1 RENISHAW 400 IPM $12,500.00
1 ATS/COOLJET 70-36V VARIABLE FLOW 1000 PSI CTS $16,990.00
1 ATS INSTALL $2,490.00
1 NEW 2014 MACHINE IN BOX IN SO CAL WAREHOUSE ( PREMIER) $0.00
4 HPLUS 630N SPARE PALLETS $39,600.00
20 PALLET WINGS $40,000.00
DISCOUNT ($87,204.00)
MMU VALUE OPTION PACKAGE TO INCLUDE: NO OF REGISTERED PROGRAMS (1000 PCS),
TOOL OFFSETS PAIR 999-PAIRS, $0.00
S-MMU (1) VALUE ADDITION OF WORK COORDINATE SYSTEM 300-PAIRS
1 DUAL SAFETY ELECTRICAL CIRCUIT $0.00
1 COOLANT FLOW CHECKER W/O SPINDLE THROUGH $0.00
1 HPLUS 630N SPARE PALLETS $0.00
12 SPARE PALLETS ( COST INCLUDED WITH MACHINE) $0.00
TOTAL $743,276.00
CUT HOURS 28362

Equipment, descriptions, and specifications are intended only as a guide.
Item(s) are sold "As Is, Where Is" As inspected, unless otherwise stated and conveyed in writing.
Please feel free to contact us for any service requests and requirements, as we have service techs available.
