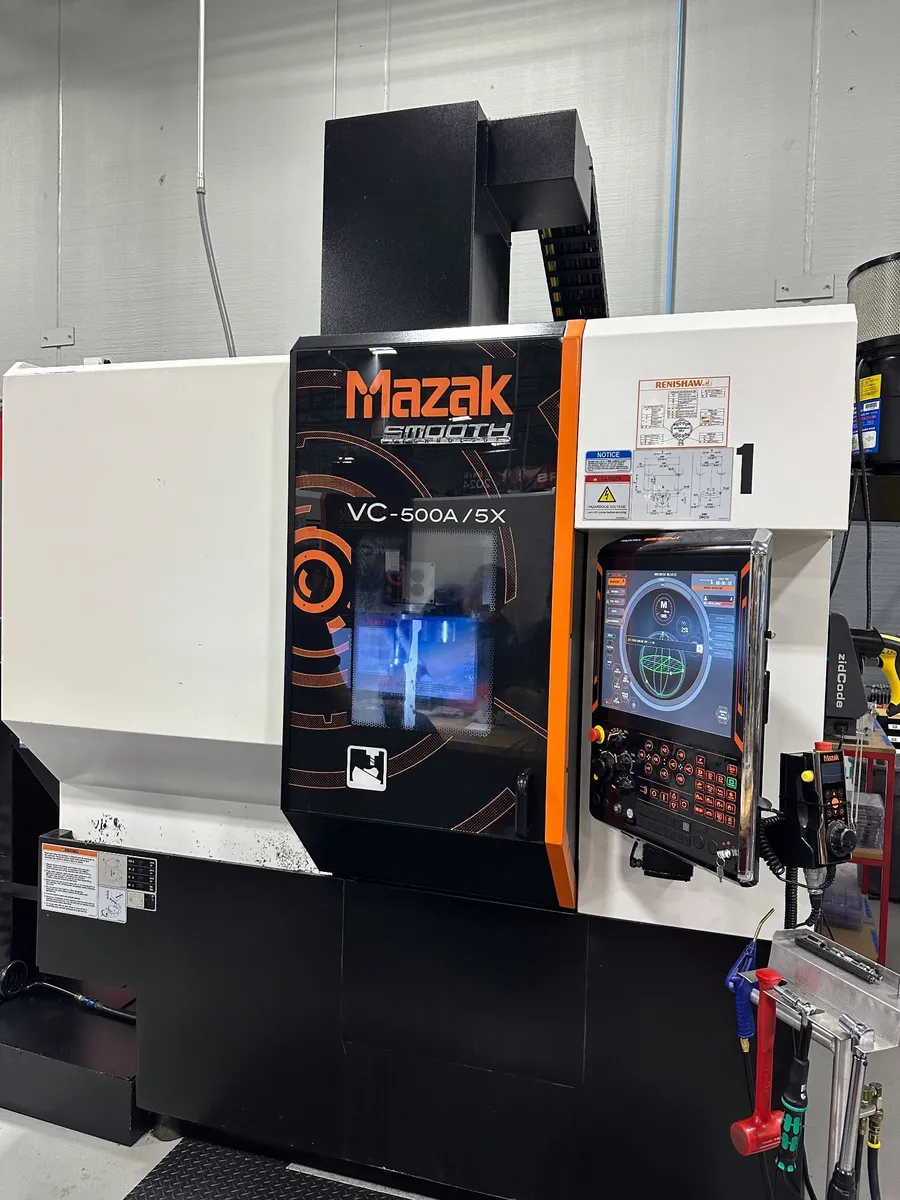

2017 MAZAK VC-500A/5X
Have one to sell?
ConditionUsed
1 available
2017 MAZAK VC-500A/5X offers 22" X, 20" Y, and 20" Z travels with a 12000 rpm spindle and 30-tool capacity. Equipped with MAZATROL SMOOTHX CONTROL, 5-axis contouring, 300 psi coolant-thru, part probe, tool probe and more, this precision machine is ideal for advanced machining tasks.

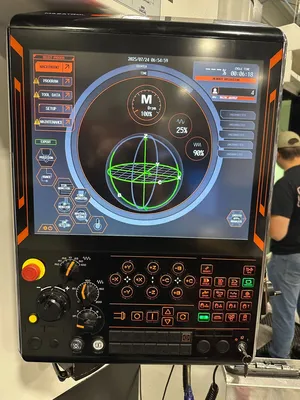

MAZATROL SMOOTHX CONTROL
19" COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
SMOOTH STANDARD SOFTWARE FOR MACHINING CENTER
F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
RENISHAW RMP 600 PART PROBE
RENISHAW RTS-AA TOOL PROBE
300 PSI COOLANT-THRU SPINDLE
WORKLIGHT
USB I/F (1-PORT)
LAN PORT IN ELECTRICAL CABINET
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
BACKGROUND TOOL PATH CHECK
MAZAK TAPPING/BORING TORNADO (MAZATROL)
BACKGROUND TOOL PATH CHECK
MAZAK TAPPING/BORING TORNADO (MAZATROL)
SMOOTH SYNCHRONIZED TAPPING
TOOL LIFE MONITORING
ACTIVE VIBRATION CONTROL
SAFETY SHIELD (MANUAL OPERATION)
INTELLIGENT THERMAL SHIELD
MAZAK VOICE ADVISER
VIRTUAL MACHINING
EIA DYNAMIC COMPENSATION 2 (INCLUDES 1)
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
MAZA-CHECK
SMOOTH ENGRAVING FUNCTION
B)GOO SLOPE CONSTANT
WORK SETTING ERROR COMPENSATION (G54.4)
MAXIMUM PROGRAM SIZE: 8MB STD SIZE: 2MB
5-AXIS MACHINING PACKAGE FOR KY SMOOTHX
F)TOOL RADIUS COMPENSATION / 5-AXIS (G41.5 / G42.5)
JORGENSON ECO-FILTER HINGE CHIP CONVEYOR
2017 MAZAK VC-500A/5X offers 22" X, 20" Y, and 20" Z travels with a 12000 rpm spindle and 30-tool capacity. Equipped with MAZATROL SMOOTHX CONTROL, 5-axis contouring, 300 psi coolant-thru, part probe, tool probe and more, this precision machine is ideal for advanced machining tasks.
Imperial
| X Travel | 22" |
| Y Travel | 20" |
| Z Travel | 20" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 19.56" |
| Main Spindle Motor | 25 hp |
| Spindle Taper | CAT 40 |
| 4 Axis Table Rotation | .001 Degree Positioning Only 360000 Degrees |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 300 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1181/ 1181/ 1181 |
| Chip Conveyor | YES |
| Control | CNC (MAZATROL SMOOTH X) |
| Dimensions | 84" X 124" X 125" |
| Weight | 14,300 LBS |
MAZATROL SMOOTHX CONTROL
19" COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
SMOOTH STANDARD SOFTWARE FOR MACHINING CENTER
F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
RENISHAW RMP 600 PART PROBE
RENISHAW RTS-AA TOOL PROBE
300 PSI COOLANT-THRU SPINDLE
WORKLIGHT
USB I/F (1-PORT)
LAN PORT IN ELECTRICAL CABINET
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
BACKGROUND TOOL PATH CHECK
MAZAK TAPPING/BORING TORNADO (MAZATROL)
BACKGROUND TOOL PATH CHECK
MAZAK TAPPING/BORING TORNADO (MAZATROL)
SMOOTH SYNCHRONIZED TAPPING
TOOL LIFE MONITORING
ACTIVE VIBRATION CONTROL
SAFETY SHIELD (MANUAL OPERATION)
INTELLIGENT THERMAL SHIELD
MAZAK VOICE ADVISER
VIRTUAL MACHINING
EIA DYNAMIC COMPENSATION 2 (INCLUDES 1)
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
MAZA-CHECK
SMOOTH ENGRAVING FUNCTION
B)GOO SLOPE CONSTANT
WORK SETTING ERROR COMPENSATION (G54.4)
MAXIMUM PROGRAM SIZE: 8MB STD SIZE: 2MB
5-AXIS MACHINING PACKAGE FOR KY SMOOTHX
F)TOOL RADIUS COMPENSATION / 5-AXIS (G41.5 / G42.5)
JORGENSON ECO-FILTER HINGE CHIP CONVEYOR
