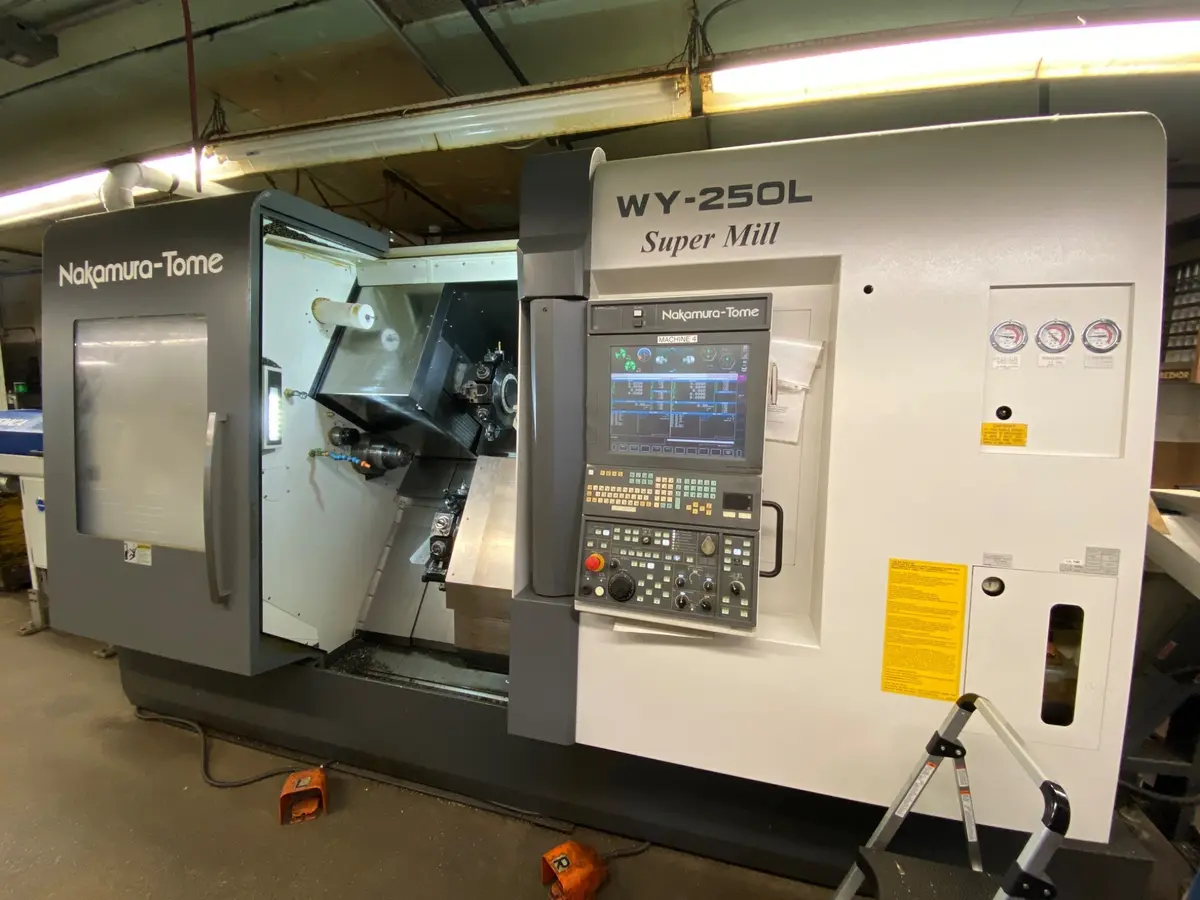

NAKAMURA-TOME SUPER MILL WY-250L (2014)
Have one to sell?
ConditionUsed
1 available

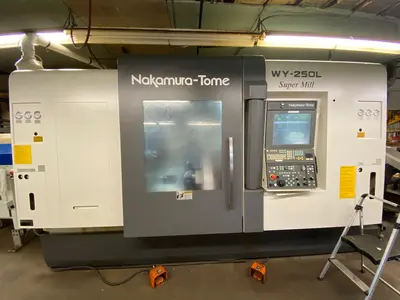

2014 Nakamura-Tome WY 250L Super Mill CNC Multi-Tasking Center. Features: 8.8" turning diameter, 35.8" length, dual spindles (4,500 RPM & 5,000 RPM), 24-station turrets, Y Axis upper & lower TRT, equipped with short magazine barfeed, chip conveyor, and advanced control functions. Used condition.

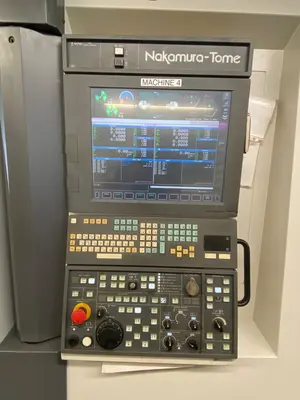

FANUC 31I B5 CNC COLOR CONTROL

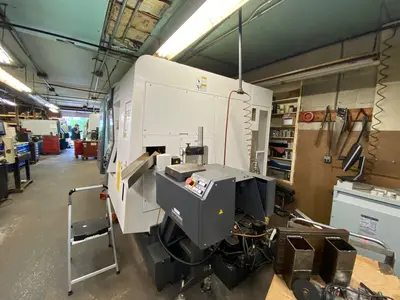

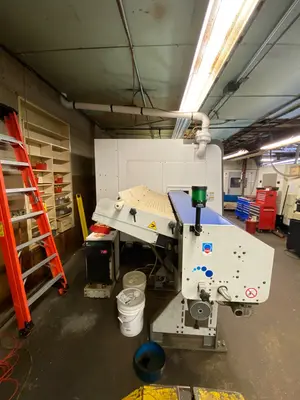

IEMCA BARFEED
AI CONTOUR CONTROL
CHIP CONVEYOR
TOOL PRESETTER
MANUAL GUIDE I MULTI-PATH
PITCH ERROR COMP
GRAPHIC FUNCTION
REGISTERED PROGRAMS EXPAN. 1
Y AXIS OFFSET
TOOL GEOMETRY/WEAR OFFSET
TOOL OFFSET 200 PAIRS
ARBITRARY ANGULAR AXIS CONTR
CAMFERING / CORNER B
CUSTOM MACRO B
DIRECT DRAWING DIMENSION
CONSTANT SURFACE SPEED CONTROL
THREAD CUTTING RETRACT
EMBEDDED ETHERNET
SPINDLE POLYGON FUNCTION
UNEXPECTED DISTRUBANCE DETECTION FUNCTION
BALANCE CUTTING
VARIABLE LEAD THREAD CUTTING
15 ROTARY HEADS INCLUDED
2014 Nakamura-Tome WY 250L Super Mill CNC Multi-Tasking Center. Features: 8.8" turning diameter, 35.8" length, dual spindles (4,500 RPM & 5,000 RPM), 24-station turrets, Y Axis upper & lower TRT, equipped with short magazine barfeed, chip conveyor, and advanced control functions. Used condition.
Imperial
| Max Turning Diameter | 8.8" |
| Main Spindle Bore/Max Bar Capacity | 3.15"/ 2.6" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 35.8" |
| X-Axis Travel (X1, X2, X3) | 6.3"/ 6.3" |
| Z-Axis Travel (Z1, Z2, Z3) | 35.8"/ 35.8" |
| Y-Axis Travel (Y1, Y2, Y3) | 2.75"/ -1.96" |
| C-Axis Indexing (1, 2) | 0.001/ 0.001 |
| W-Axis Travel Sub Spindle | 37.2 in |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 3.15" |
| Main Spindle Maximum Bar Work | 2.6" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 |
| Sub Spindle/2nd Spindle Bore Size | 2.48"/ 2.14" |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 25 |

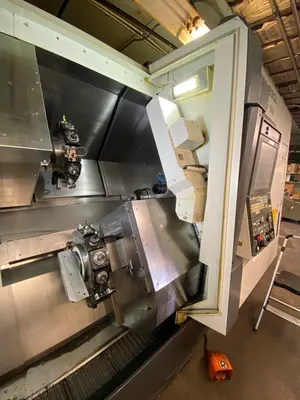

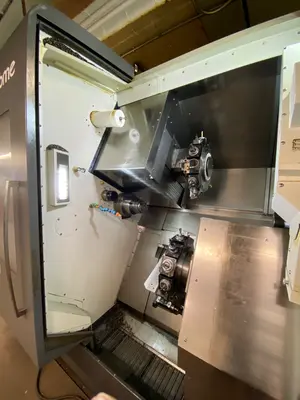

| Number of Turrets | 2 |

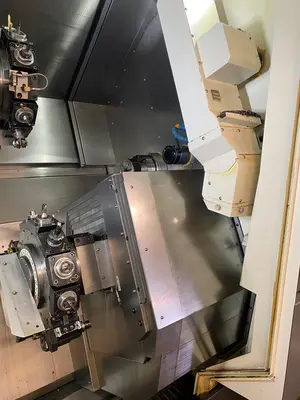

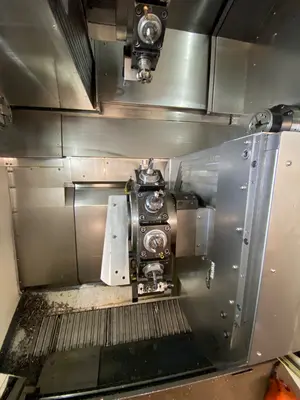

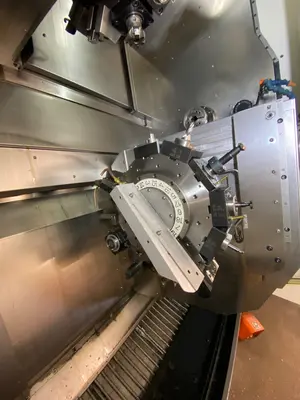

| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Rapid Traverse, X-Axis | 708708 |
| Rapid Traverse, Y-Axis | 393393 |
| Rapid Traverse, Z-Axis | 15741600 |
| Additional Tooling | Large Amount of Tooling |
| Control | CNC (Fanuc 31i-B5) |
| Dimensions | 211" x 132" x 95" |
| Weight | 28,661 lbs |
FANUC 31I B5 CNC COLOR CONTROL
IEMCA BARFEED
AI CONTOUR CONTROL
CHIP CONVEYOR
TOOL PRESETTER
MANUAL GUIDE I MULTI-PATH
PITCH ERROR COMP
GRAPHIC FUNCTION
REGISTERED PROGRAMS EXPAN. 1
Y AXIS OFFSET
TOOL GEOMETRY/WEAR OFFSET
TOOL OFFSET 200 PAIRS
ARBITRARY ANGULAR AXIS CONTR
CAMFERING / CORNER B
CUSTOM MACRO B
DIRECT DRAWING DIMENSION
CONSTANT SURFACE SPEED CONTROL
THREAD CUTTING RETRACT
EMBEDDED ETHERNET
SPINDLE POLYGON FUNCTION
UNEXPECTED DISTRUBANCE DETECTION FUNCTION
BALANCE CUTTING
VARIABLE LEAD THREAD CUTTING
15 ROTARY HEADS INCLUDED
