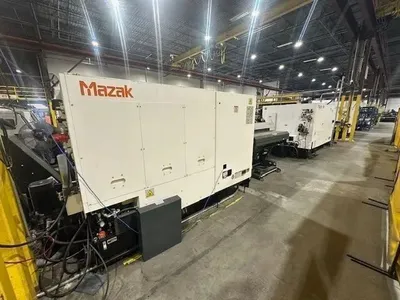

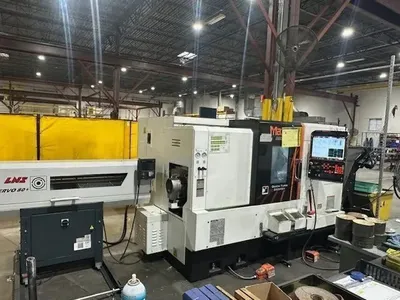

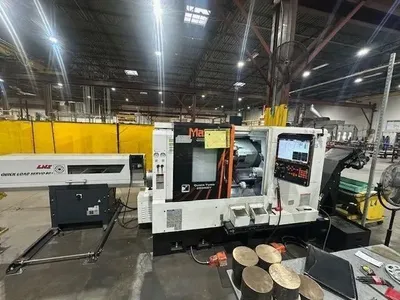

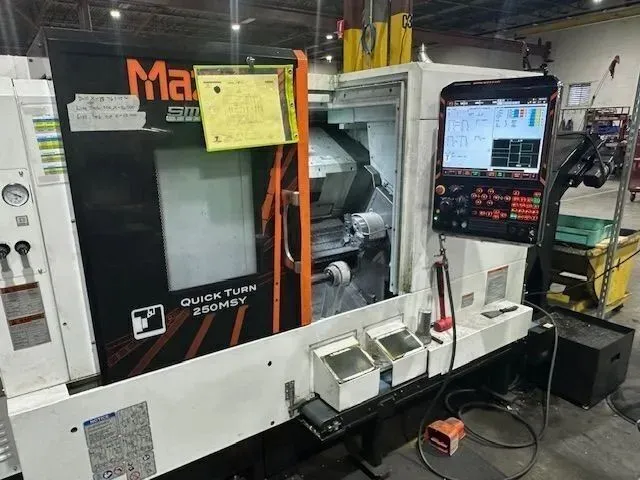

2022 MAZAK QUICK TURN 250MSY CNC LATHE W/MILLING,Y AXIS, SUB SINDLE & BAR FEED
Have one to sell?
ConditionUsed
1 available
MAZATROL SMOOTH G CNC COLOR CONTROL
10'' 3-JAW HYDRAULIC CHUCK

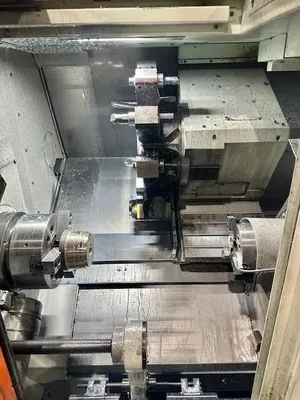

6" 3-JAW REAR SPINDLE
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
BARFEED INTERFACE

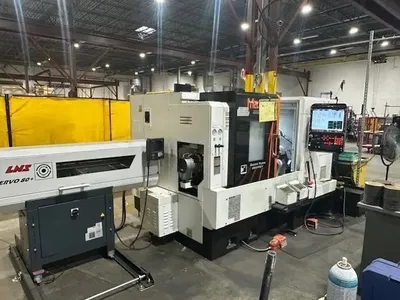

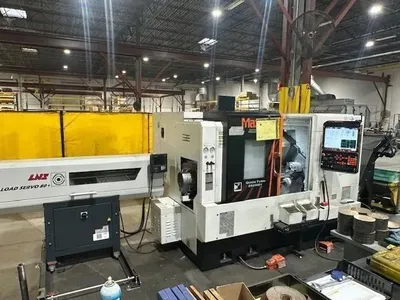

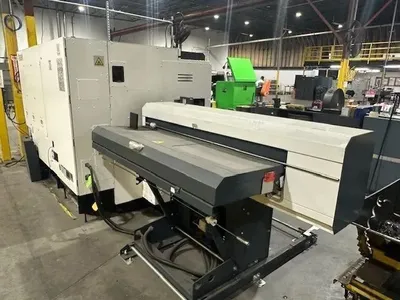

LNS SERVO 80+ SHORT MAGAZINE BARFEED SYSTEM
AUTOMATIC TOOL EYE

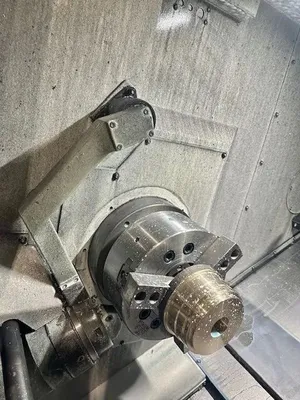

TWIN AUTOMATIC PARTS CATCHERS, FRONT CHUCK & REAR CHUCK
(3) ROTARY HEADS

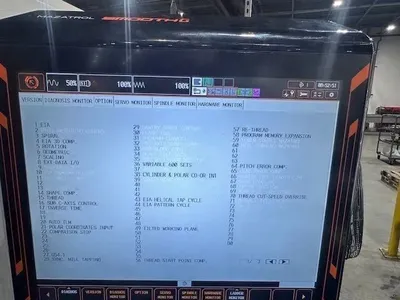

EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT - DATA I/O
SHPE COMP, THREAD, SUB C-AXIS CON TROL, INVERSE TIME
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAP
VARIABLE 600 SETS. CYLINDER & POLARCO-OR INT,
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, THREAD START POINT COMP.
RE-THREAD, PROGRAM MEMORY EXPANSION, PITCH ERROR COMP
THREAD CUT - SPEED OVERRIDE
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 21.275" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | .0001/ .0001 Degree |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Bar Feed Interface | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 3 |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 826 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL SMOOTH G) |
| Weight | 12,000 LBS |
MAZATROL SMOOTH G CNC COLOR CONTROL
10'' 3-JAW HYDRAULIC CHUCK
6" 3-JAW REAR SPINDLE
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
BARFEED INTERFACE
LNS SERVO 80+ SHORT MAGAZINE BARFEED SYSTEM
AUTOMATIC TOOL EYE
TWIN AUTOMATIC PARTS CATCHERS, FRONT CHUCK & REAR CHUCK
(3) ROTARY HEADS
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT - DATA I/O
SHPE COMP, THREAD, SUB C-AXIS CON TROL, INVERSE TIME
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAP
VARIABLE 600 SETS. CYLINDER & POLARCO-OR INT,
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, THREAD START POINT COMP.
RE-THREAD, PROGRAM MEMORY EXPANSION, PITCH ERROR COMP
THREAD CUT - SPEED OVERRIDE
