2022 DN SOLUTIONS PUMA V8300R
Have one to sell?
ConditionUsed
1 available

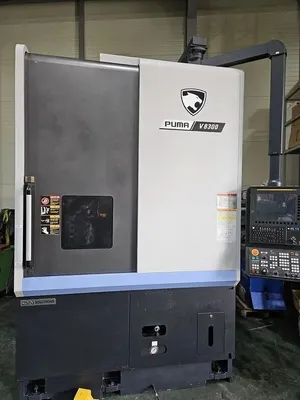

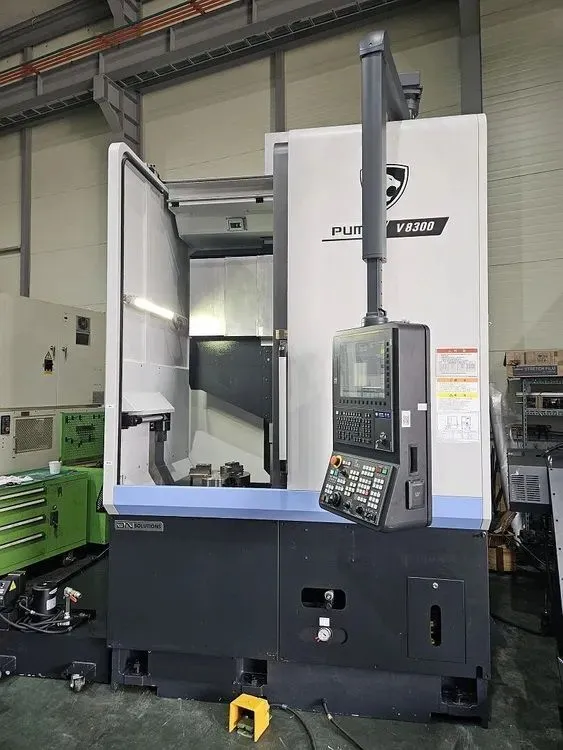

7/2022 DN SOLUTIONS PUMA V8300R CNC Vertical Turning Lathe features a 24" 3-jaw hydraulic chuck and Fanuc I Series CNC color control. Equipped with a tool setter, a chip conveyor, and an Ethernet function. It boasts a 60 hp main motor, 2,000 RPM table speed, and a 12-station turret.
*** ONLY 355 CUTTING HOURS **
TABLE DIAMETER 24"
SWING DIAMETER 36.2"
TURNING HEIGHT 29.5"
SPINDLE NOSE A2 - 11
TABLE SPEED 2,000 RPM
MAIN MOTOR 50 hp
NUMBER OF RANGES 2
X - AXIS TRAVEL 19.5"
Z - AXIS TRAVEL 30.7"
RAPID TRAVERSE RATE - X 787 ipm
RAPID TRAVERSE RATE - Z 787 in/min.

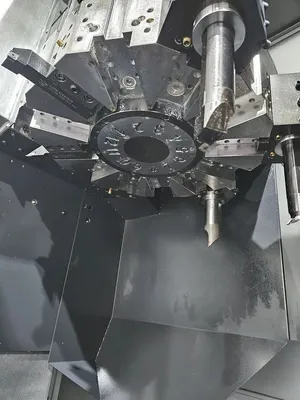

TURRET CONFIGURATION 12 station

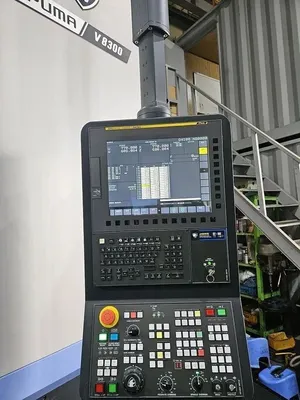

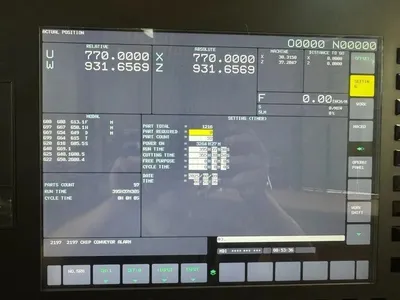

FANUC I SERIES CNC COLOR CONTROL

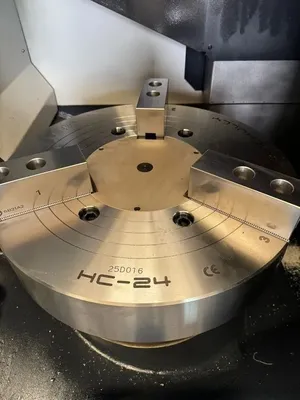

24" 3-JAW HYDRAULIC CHUCK

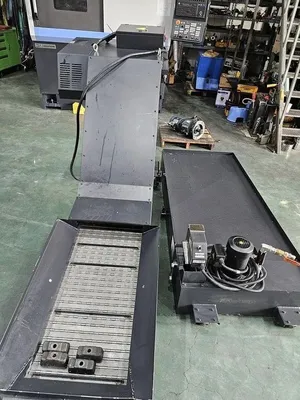

CHIP CONVEYOR COOLANT TANBL, OILS SKIMMER & CHIP BUCKET
EZ GUIDE CNC CONVERSATIONAL PROGRAMMING
EASY OPERATING SYSTEM
2MB PART PROGRAM STORAGE

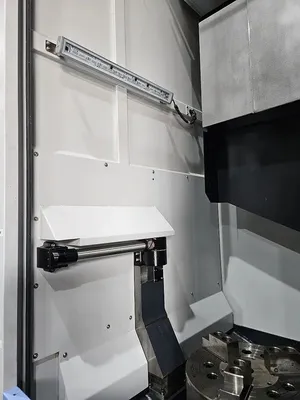

AUTOMATIC TOOL PRE-SETTER
AUTO POWER OFF
CHUCK CLAMP CONFIRMATION
DOOSAN TOOL LOAD MONITORING
WORK COORDINATES 8 PAIRS
TOOL OFFSETS 128 PAIRS
EMBEDDED ETHERNET FUNCTION
USB PORT
AXIS TOOL & NUMBER DISPLAY
FULL COMPLIMENT OF TOOL HOLDERS
ALL MANUALS
*** ONLY 355 CUTTING HOURS **
