HWACHEON MEGA-100/3000 CNC HEAVY-DUTY FLATBED LATHE w/6.1” HOLE THRU SPINDLE - SIEMENS "SINUMERIK" CNC CONTROL - 24.5" 3-JAW CHUCK - STEADY REST
Have one to sell?
ConditionUsed
1 available

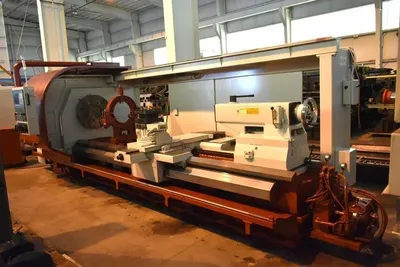

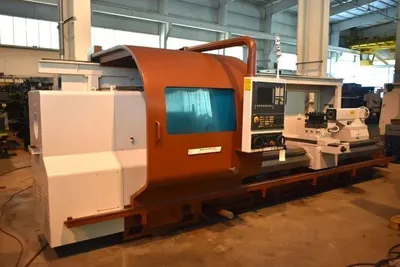

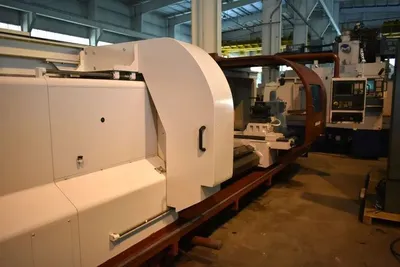

2010 HWACHEON MEGA-100/3000 CNC Heavy-Duty Flatbed Lathe: 42.5" max swing, 39.3" turning diameter, 6.1" bore, equipped with Siemens "Sinumerik" CNC, 24.5" 3-jaw chuck, hydraulic turret, and steady rest. Chip conveyor included.
POWER RAPID TRAVERSE, X-AXIS 236 IPM
POWER RAPID TRAVERSE, Y-AXIS 236 IPM
TAILSTOCK QUILL DIAMETER 7.87"
TAILSTOCK SPINDLE CENTER 6 MT

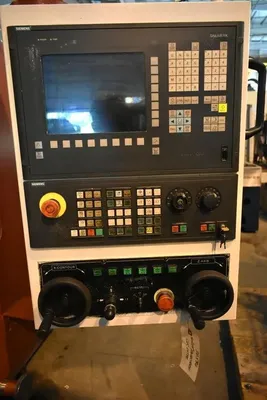

SIEMENS "SINUMERIK" CNC CONTROL W/CRT (PENDANT MOUNTED)

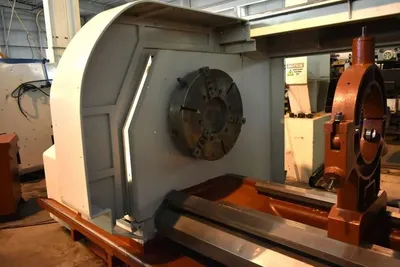

24.5" 3-JAW CHUCK

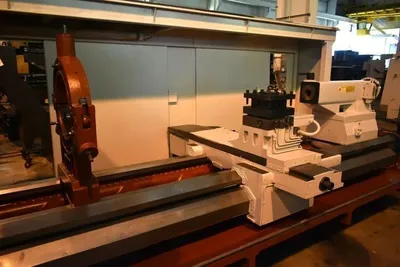

4-POSITION HYDRAULIC TURRET

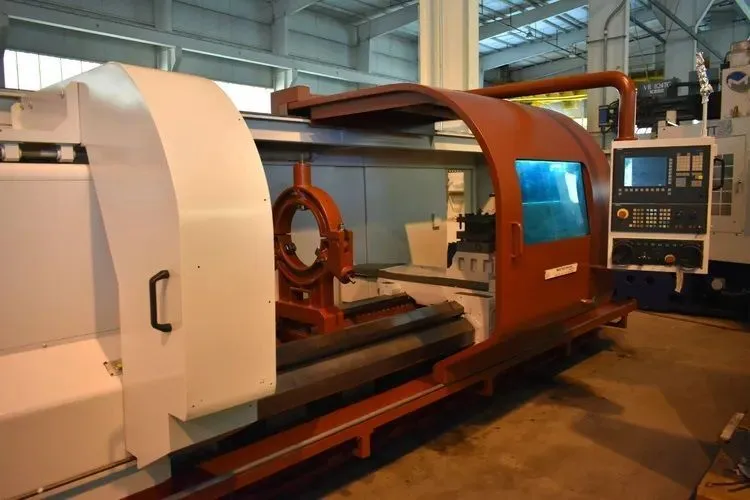

STEADY REST
A2-15 SPINDLE NOSE
CHIP CONVEYOR (FULL LENGTH)
2010 HWACHEON MEGA-100/3000 CNC Heavy-Duty Flatbed Lathe: 42.5" max swing, 39.3" turning diameter, 6.1" bore, equipped with Siemens "Sinumerik" CNC, 24.5" 3-jaw chuck, hydraulic turret, and steady rest. Chip conveyor included.
Imperial
| Max. Swing | 42.5" |
| Max Turning Diameter | 39.3" |
| Spindle Bore/Max Bar Capacity | 6.1" |
| Z Travel | 118" |
| X Travel | 20" |
| Machining Length | 120" |
| Distance Between Centers | 118 |
| Chuck Size | 24.5" |
| Spindle Motor | 45 hp |
| Spindle Speeds (RPM) | 40 - 750 |
| Spindle Bore/Bar Capacity | 6.1 in |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (SIEMENS SINUMERIK) |
| Dimensions | 244" x 93" x 85 |
| Weight | 25500 LBS |
POWER RAPID TRAVERSE, X-AXIS 236 IPM
POWER RAPID TRAVERSE, Y-AXIS 236 IPM
TAILSTOCK QUILL DIAMETER 7.87"
TAILSTOCK SPINDLE CENTER 6 MT
SIEMENS "SINUMERIK" CNC CONTROL W/CRT (PENDANT MOUNTED)
24.5" 3-JAW CHUCK
4-POSITION HYDRAULIC TURRET
STEADY REST
A2-15 SPINDLE NOSE
CHIP CONVEYOR (FULL LENGTH)
