2024 MAZAK QUICK TURN 250MSY CNC LATHE W/MILLING,Y AXIS, SUB SPINDLE & BAR FEED
Have one to sell?
ConditionUsed
1 available

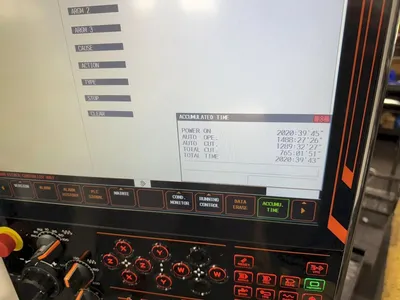

2024 MAZAK QUICK TURN 250MSY CNC Lathe with milling, Y-axis, sub spindle, and bar feed. Max swing 26.5", max spindle speed 4000 RPM. Equipped with MAZATROL SmoothG control, bar feeder, parts catcher, chip conveyor, high-pressure coolant, and live tooling. ONLY 765 CUT HOURS!

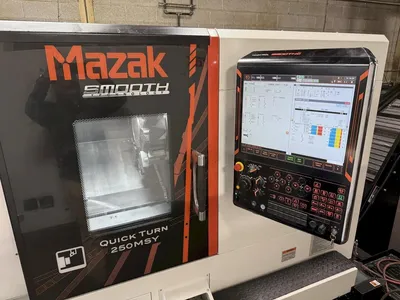

MAZAK MAZATROL SMOOTHG CNC CONTROL

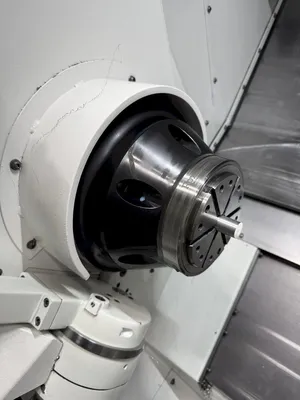

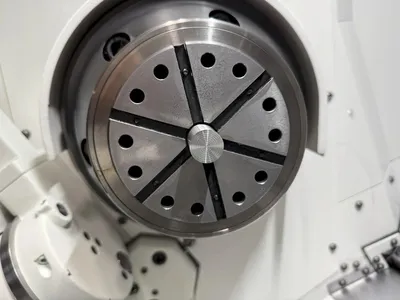

ROYAL QG-80 ACU-LENGTH QUICK CHANGE COLLET CHUCK ON MAIN SPINDLE
ROYAL 16C ACCU LENGTH COLLET CHUCK ON SUB SPINDLE
KITAGAWA 10" & 6" 3-JAW CHUCKS (OPTIONAL-UNUSED)

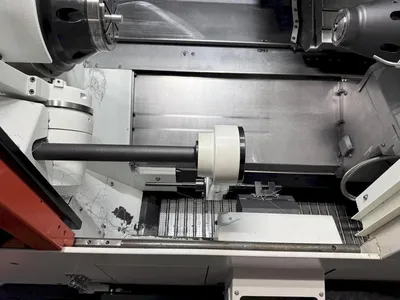

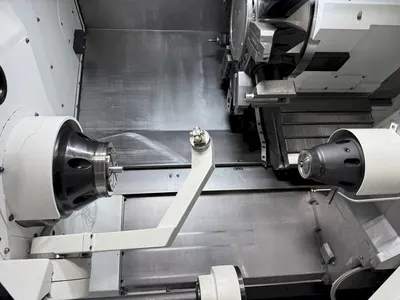

AUTOMATIC PARTS CATCHER
PARTS CONVEYOR
WORK EJECTOR FOR HEAD 2
MAZAK SUPER FLOW HI-PRESSURE COOLANT UNIT (1,000 PSI)
CHIP CONVEYOR
COOLANT TANK & PUMPS
OVERLOAD PROTECTION SYSTEM

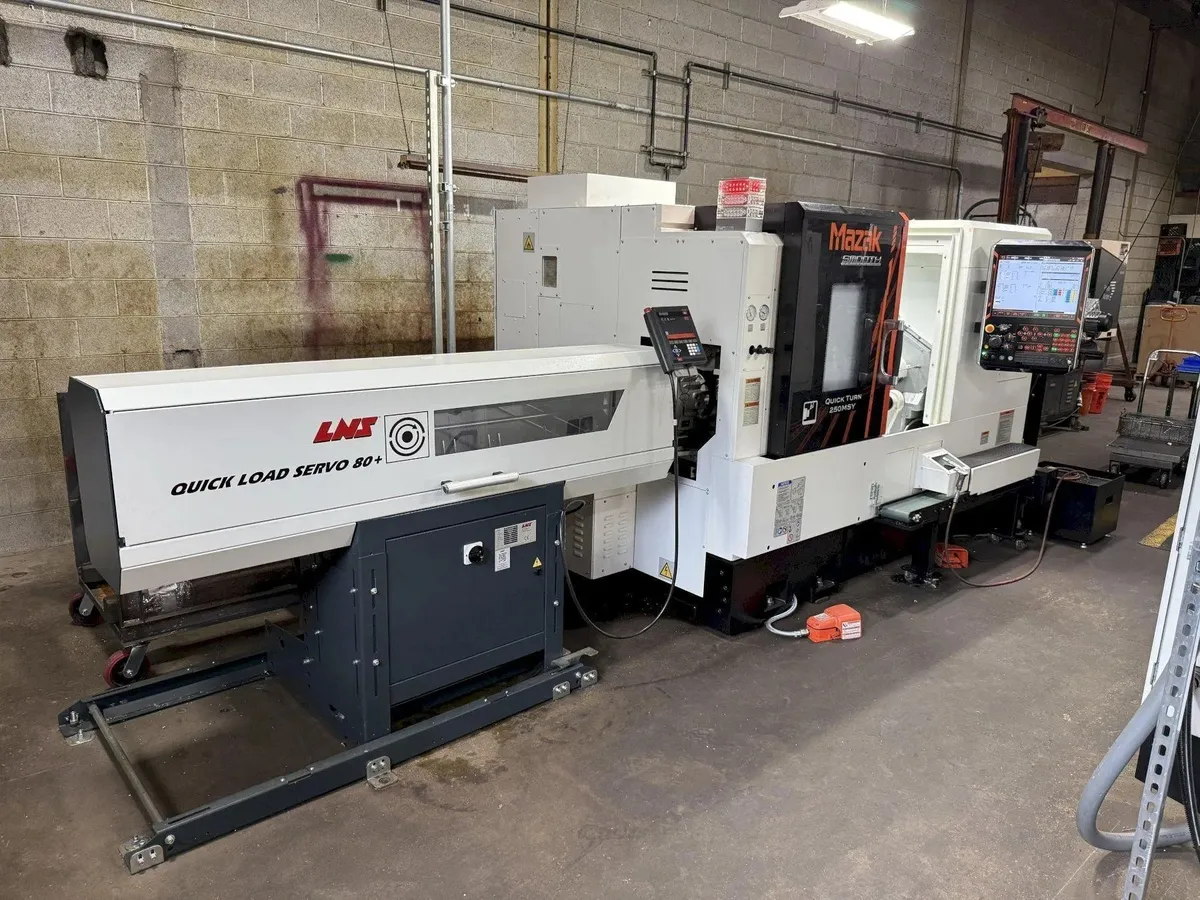

LNS QUICK LOAD SERVO 80+ BAR FEEDER

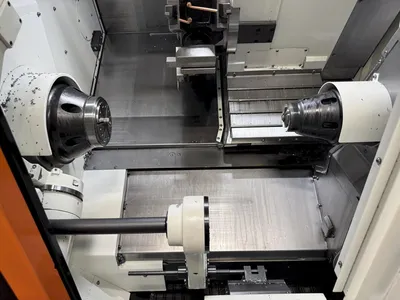

SUB SPINDLE
Y AXIS
AUTO TOOL LENGTH MEASUREMENT

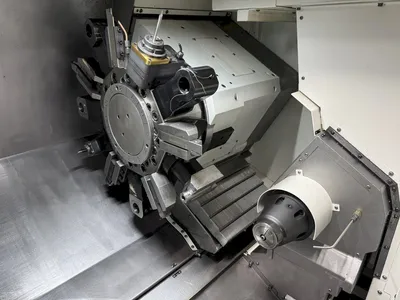

LIVE TOOLING
2 RIGHT ANGLE LIVE TOOL HOLDERS, 1 STRAIGHT LIVE HOLDER
2024 MAZAK QUICK TURN 250MSY CNC Lathe with milling, Y-axis, sub spindle, and bar feed. Max swing 26.5", max spindle speed 4000 RPM. Equipped with MAZATROL SmoothG control, bar feeder, parts catcher, chip conveyor, high-pressure coolant, and live tooling. ONLY 765 CUT HOURS!
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 21.275" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | .0001/ .0001 Degree |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15/ 10 |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Bar Feed Interface | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 3 |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 826 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL SMOOTH G) |
| Dimensions | 102" x 78" x 75" |
| Weight | 12,000 LBS |
MAZAK MAZATROL SMOOTHG CNC CONTROL
ROYAL QG-80 ACU-LENGTH QUICK CHANGE COLLET CHUCK ON MAIN SPINDLE
ROYAL 16C ACCU LENGTH COLLET CHUCK ON SUB SPINDLE
KITAGAWA 10" & 6" 3-JAW CHUCKS (OPTIONAL-UNUSED)
AUTOMATIC PARTS CATCHER
PARTS CONVEYOR
WORK EJECTOR FOR HEAD 2
MAZAK SUPER FLOW HI-PRESSURE COOLANT UNIT (1,000 PSI)
CHIP CONVEYOR
COOLANT TANK & PUMPS
OVERLOAD PROTECTION SYSTEM
LNS QUICK LOAD SERVO 80+ BAR FEEDER
SUB SPINDLE
Y AXIS
AUTO TOOL LENGTH MEASUREMENT
LIVE TOOLING
2 RIGHT ANGLE LIVE TOOL HOLDERS, 1 STRAIGHT LIVE HOLDER
