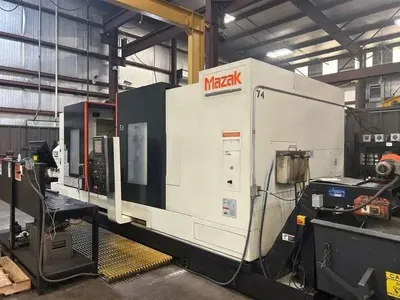

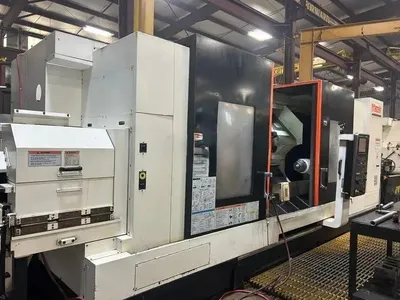

MAZAK SLANT TURN NEXUS 550M/ 2000 (2011)
Have one to sell?
ConditionUsed
1 available
Explore precision with this MAZAK SLANT TURN NEXUS 550M/2000 CNC lathe from 2011. Features include a 40.9" max swing, 24" air chuck, 12.5" bore, and MAZATROL MATRIX NEXUS control. Equipped for robust performance with a chip conveyor and multitap transformer.
The machine will be available January 2026 - a deposit is required to hold it.
MAXIMUM SPINDLE TORQUE: 5,193 FT/LBS
TURREY INDEX TIME: 5" SEC.
TAILSTOCK TRAVEL BODY: 86.75"
MAZATRROL MATRIX NEXUS CONTROL

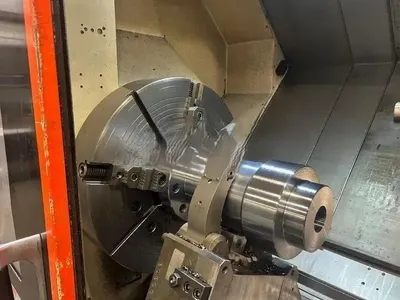

24" AIR CHUCK
12.5" BORE
STEADY REST PREPPED
CHIP CONVEYOR
MULTITAP TRANSFORMER
Explore precision with this MAZAK SLANT TURN NEXUS 550M/2000 CNC lathe from 2011. Features include a 40.9" max swing, 24" air chuck, 12.5" bore, and MAZATROL MATRIX NEXUS control. Equipped for robust performance with a chip conveyor and multitap transformer.
The machine will be available January 2026 - a deposit is required to hold it.
Imperial
| Maximum Swing | 40.9" |
| Max Turning Diameter | 36" |
| Main Spindle Bore/Max Bar Capacity | 12.5" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Swing Over Cross Slide | 29.4" |
| X-Axis Travel (X1, X2, X3) | 18.25" |
| Z-Axis Travel (Z1, Z2, Z3) | 80" |
| C-Axis Indexing (1, 2) | 360,000 N/C Contouring |
| Main Spindle Chuck Size | 24" |
| Main Spindle Chuck Type | Air |
| Main Spindle Maximum Bar Work | 12.5" |
| Main Spindle Speed | 750 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 60 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |
| Chip Conveyor | Yes |
| Rapid Traverse, X-Axis | 787 |
| Rapid Traverse, Z-Axis | 945 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Weight | 41,887 LBS |
MAXIMUM SPINDLE TORQUE: 5,193 FT/LBS
TURREY INDEX TIME: 5" SEC.
TAILSTOCK TRAVEL BODY: 86.75"
MAZATRROL MATRIX NEXUS CONTROL
24" AIR CHUCK
12.5" BORE
STEADY REST PREPPED
CHIP CONVEYOR
MULTITAP TRANSFORMER
