2021 SHIBAURA TUE-150S

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERT. LIVE SPINDLE CNC
Manufacturer:
SHIBAURA
Model:
TUE-150S
Condition:
Excellent
Year:
2021
Stock #:
210905
Status:
For Sale

Description

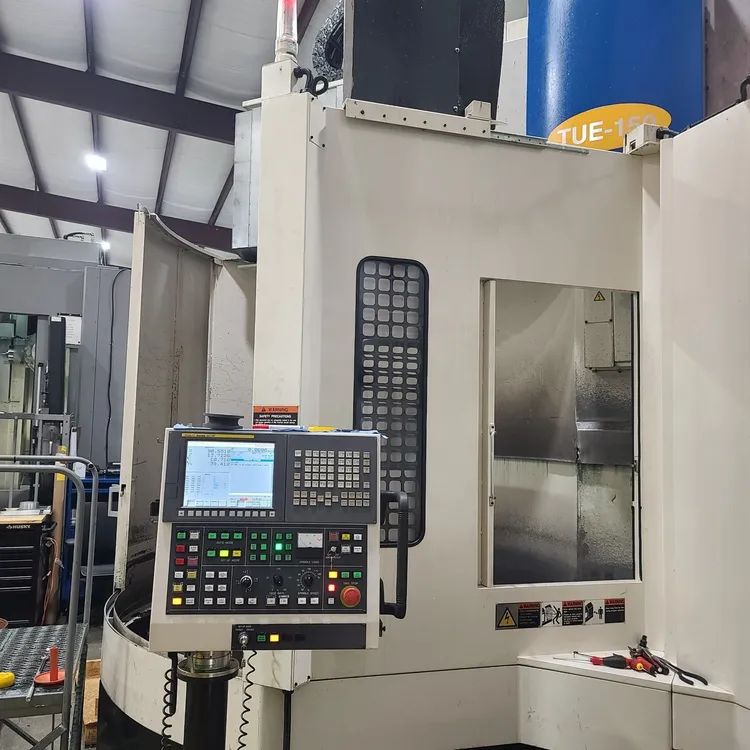

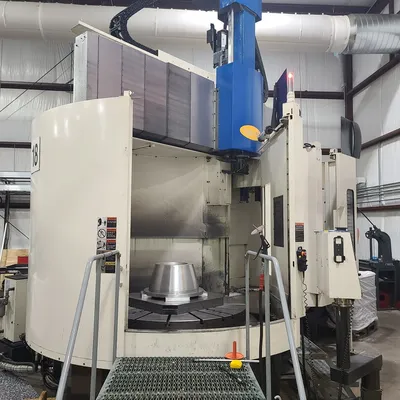

2021 SHIBAURA TUE-150S VTL CNC in used condition. Features include a 57" table, 78.7" max swing, 61" max turning height, 50/60 HP motor, 400 RPM table, C-axis contouring, 18-position tool changer. Equipped with FANUC 0i-TF, chip conveyor, and full enclosure.

Table Dia57"1,447.8 mm
Maximum Swing78.7"1,999 mm
Maximum Turning Diameter78.74"2,000 mm
Maximum Turning Height6161
Table Weight Capacity17,600 lb7,983.2 kg
Vertical Travel of Ram, Z-Axis35.4"899.16 mm
Horizontal Railhead Travel, X-Axis-3.94" ~ 45.2"-3.94" ~ 45.2"
Cross Rail Vertical Travel39.3"998.22 mm
Main Table Motor50 HP / 60 HP50 HP / 60 HP
Table RPM400 RPM400 RPM
Live Spindle Speed, 2-Ranges15 - 300015 - 3000
C-Axis Contouring360 DEGREES360 DEGREES
Automatic Tool Changer18 POSITION18 POSITION
Rapid Traverse X/Z590555590555
Feed Rate "C" Axis720 deg
ControlCNC (FANUC 0i-TF)CNC (FANUC 0i-TF)
Dimensions212.6" x 234.8" x 156.3"212.6" x 234.8" x 156.3"

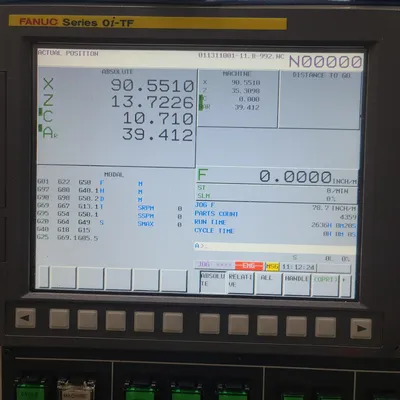

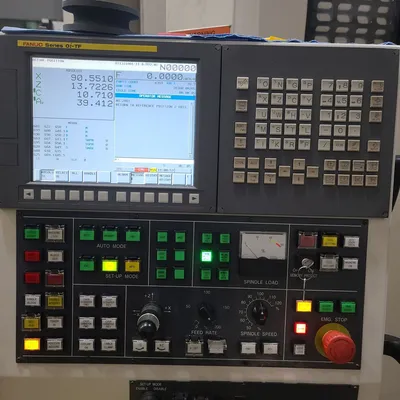

FANUC 0i-TF

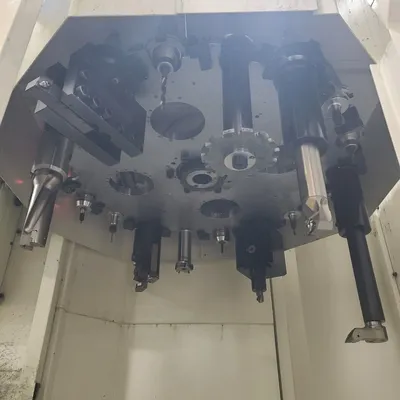

RAM W/ 18 POSITION AUTOMATIC TOOL CHANGER
LIVE MILLING SPINDLE
C-AXIS TABLE
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
FULL ENCLOSURE
