2021 MAZAK QT-EZ 8MY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QT-EZ 8MY
Year:
2021
Stock #:
210911
Status:
For Sale

Description

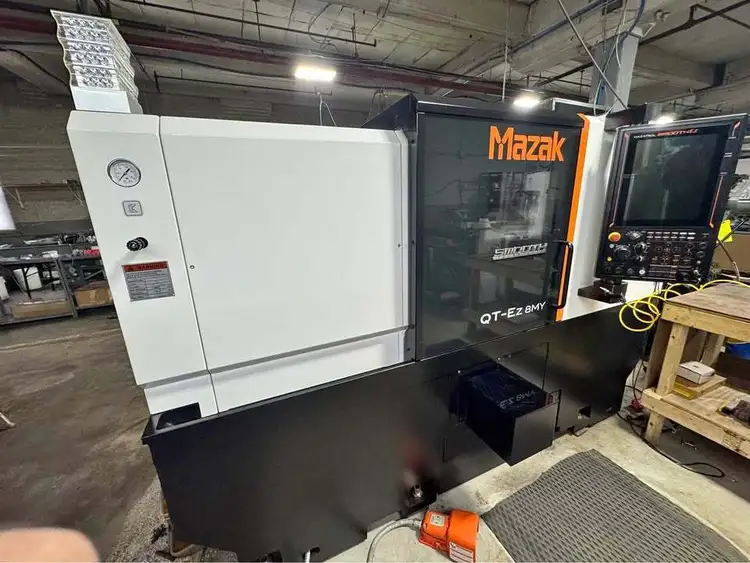

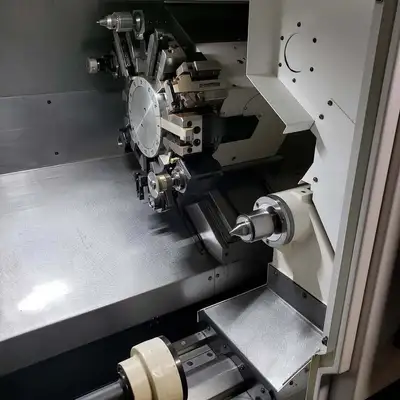

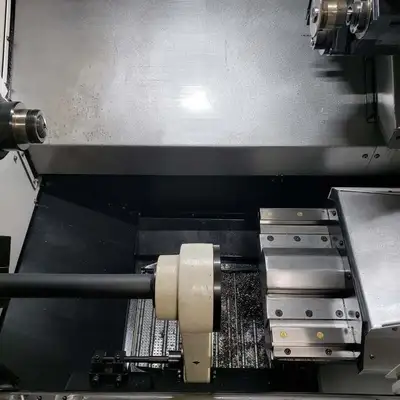

2021 MAZAK QT-EZ 8MY CNC lathe in used condition. Features 27.4" max swing, 5000 RPM spindle, 20 HP motor, programmable tailstock, and MAZATROL SMOOTH EZ control. Equipped with a chip conveyor, parts catcher, tool eye, and more. Ideal for precision tasks.

Maximum Swing27.4"695.96 mm
Max Turning Diameter13.5"342.9 mm
Main Spindle Bore/Max Bar Capacity2.5"/2.0"2.5"/2.0"
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Cutting Length22.87"580.9 mm
X-Axis Travel (X1, X2, X3)8.5"8.5"
Z-Axis Travel (Z1, Z2, Z3)23.75"23.75"
Y-Axis Travel (Y1, Y2, Y3)+/- 2" (4")+/- 2" (4")
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck TypeColletCollet
Main Spindle Bore Diameter2.5"63.5 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 27.07.0
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Number of Available Live Tool Holders44
ControlCNC (MAZATROL SMOOTH EZ)CNC (MAZATROL SMOOTH EZ)
Dimensions102.4 x 75 x 67.9102.4 x 75 x 67.9
Weight12,125 LBS.12,125 LBS.

MAZATROL SMOOTH EZ CONTROL

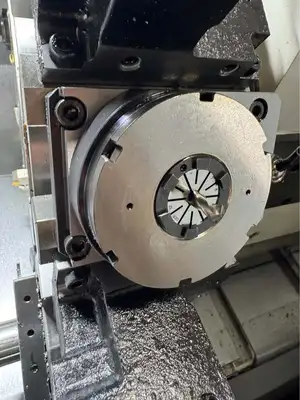

ROYAL 5C 6" COLLET CHUCK

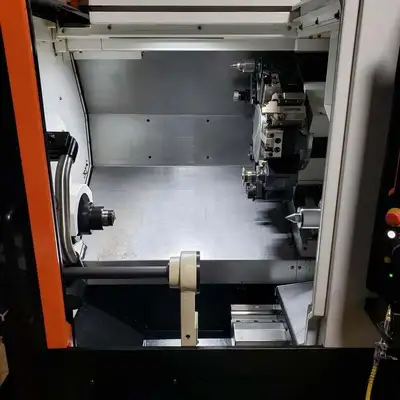

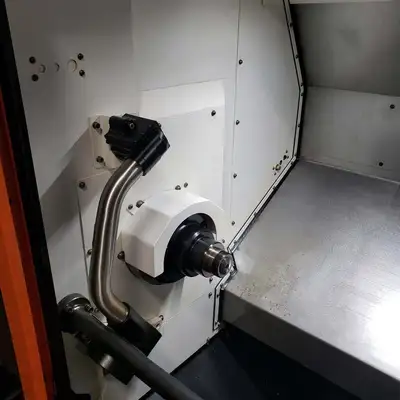

PROGRAMMABLE TAIL STOCK
PARTS CATCHER
CHIP CONVEYOR
TOOL EYE
SIGNAL TOWER
ENGRAVING
PECKING LOAD DETECTION

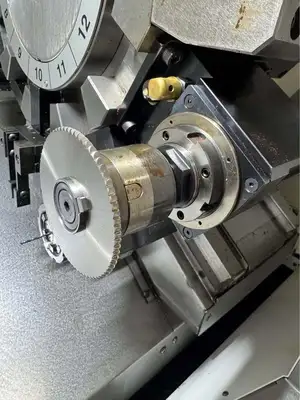

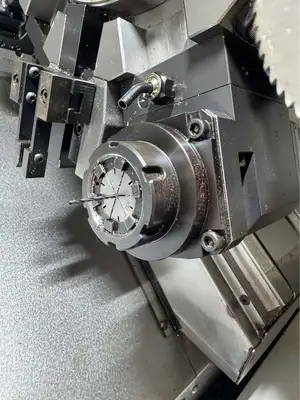

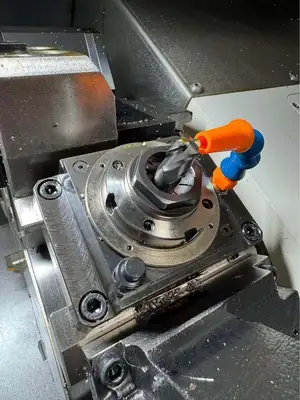

2 AXIAL LIVE TOOLS
2 RADIALS LIVE TOOLS
