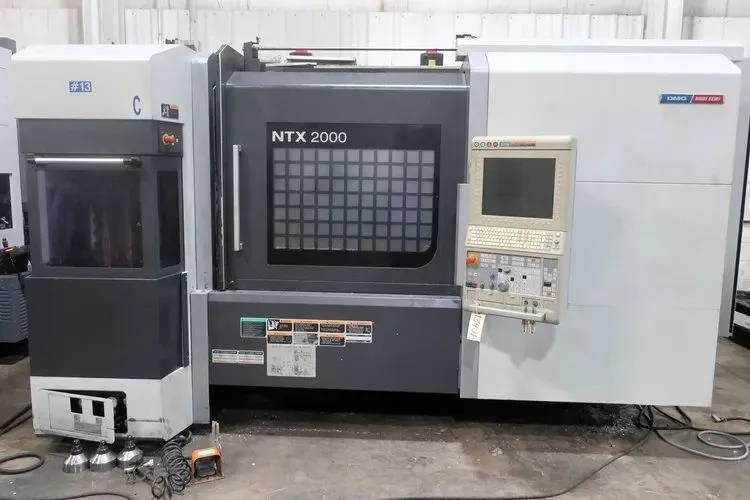

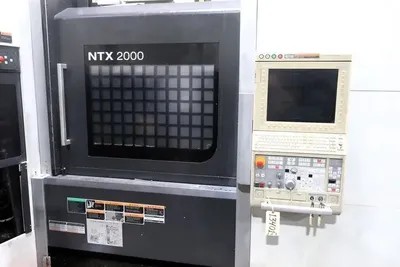

2014 DMG MORI SEIKI NTX 2000SZM1500

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NTX 2000/ 1500
Condition:
Excellent
Year:
2014
Stock #:
210913
Status:
For Sale

Description

2014 DMG MORI NTX 2000SZM1500 CNC lathe, multi-axis, features max swing 25.9", turning diameter 24", spindle speed 5000 RPM, sub spindle speed 500 RPM, tool capacity 38, plus chip conveyor, and coolant thru milling head. Used condition.

Maximum Swing25.9"657.86 mm
Max Turning Diameter24"609.6 mm
Main Spindle Bore/Max Bar Capacity2.87"/ 2.5"2.87"/ 2.5"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide25.9"657.86 mm
X-Axis Travel (X1, X2, X3)19.5"19.5"
Z-Axis Travel (Z1, Z2, Z3)61.461.4
Y-Axis Travel (Y1, Y2, Y3)+/-4.9"+/-4.9"
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.87"72.898 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.872.87
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed500 RPM500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3030
ATC Magazine Capacity3838
Turret Tool Positions 1, 21010
Turret Rotary Tool Spindle Speed 1, 21200012000
B-Axis Travel±120°±120°
B Axis Rotary Tool Spindle Speed20000 rpm20,000 RPM
Bar FeedNoNo
Chip ConveyorYesYes
Coolant Thru Milling HeadYesYes
Work Measuring System (Probe)YESYES
Rapid Traverse, X-Axis15741574
Rapid Traverse, Y-Axis15741574
Rapid Traverse, Z-Axis15741574
ControlCNC (Fanuc 31i-B5)CNC (Fanuc 31i-B5)
Dimensions226" X 210" X 105"226" X 210" X 105"

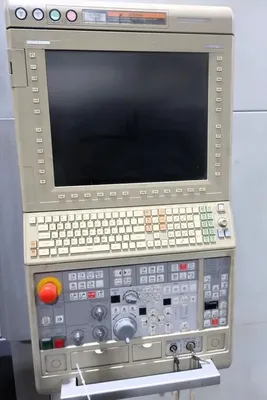

FANUC 31iB5 CNC CONTROL
MAIN AND SUB SPINDLE

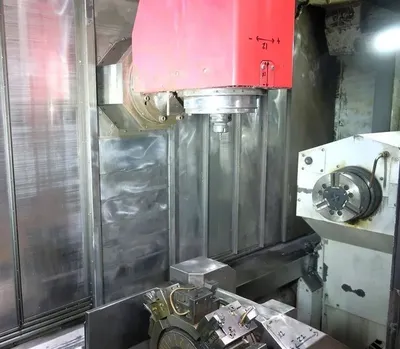

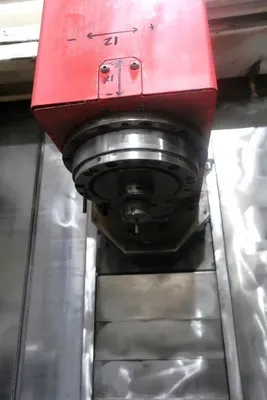

MILLING SPINDLE 12,000 RPM, CAPTO C6

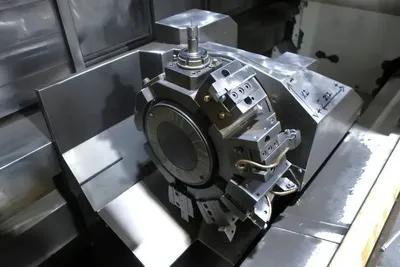

LOWER TURRET WITH LIVE TOOLING

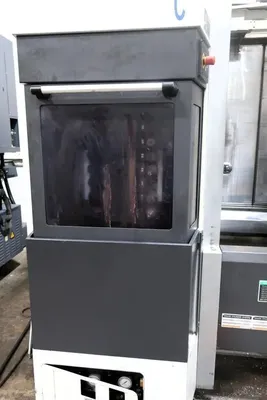

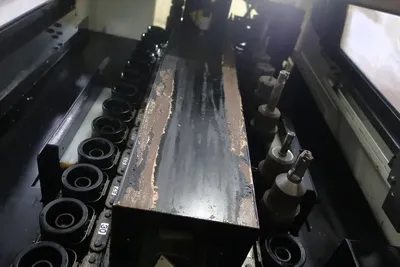

40 POSITION ATC
COOLANT SYSTEM
CHIP CONVEYOR

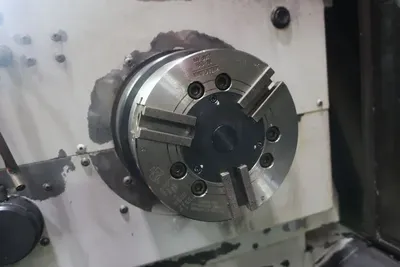

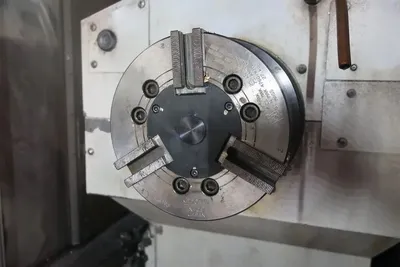

*KITAGAWA 8" 3-JAW CHUCKS HAVE BEEN INSTALLED ON BOTH SPINDLES

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NTX 2000/ 1500
Condition:
Excellent
Year:
2014
Stock #:
210913
Status:
For Sale

Description

2014 DMG MORI NTX 2000SZM1500 CNC lathe, multi-axis, features max swing 25.9", turning diameter 24", spindle speed 5000 RPM, sub spindle speed 500 RPM, tool capacity 38, plus chip conveyor, and coolant thru milling head. Used condition.

Specifications

Imperial

Maximum Swing25.9"
Max Turning Diameter24"
Main Spindle Bore/Max Bar Capacity2.87"/ 2.5"
Tail Stock/Sub SpindleSub Spindle
Maximum Swing Over Cross Slide25.9"
X-Axis Travel (X1, X2, X3)19.5"
Z-Axis Travel (Z1, Z2, Z3)61.4
Y-Axis Travel (Y1, Y2, Y3)+/-4.9"
Main Spindle Chuck Size8"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter2.87"
Main Spindle Maximum Bar Work2.5"
Main Spindle Speed5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30
Sub Spindle/2nd Spindle Chuck Size8
Sub Spindle/2nd Spindle Bore Size2.87
Sub Spindle/2nd Spindle Chuck TypeHydraulic
Sub Spindle/2nd Spindle Speed500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)30
ATC Magazine Capacity38
Turret Tool Positions 1, 210
Turret Rotary Tool Spindle Speed 1, 212000
B-Axis Travel±120°
B Axis Rotary Tool Spindle Speed20000 rpm
Bar FeedNo
Chip ConveyorYes
Coolant Thru Milling HeadYes
Work Measuring System (Probe)YES
Rapid Traverse, X-Axis1574
Rapid Traverse, Y-Axis1574
Rapid Traverse, Z-Axis1574
ControlCNC (Fanuc 31i-B5)
Dimensions226" X 210" X 105"

Equipped With

FANUC 31iB5 CNC CONTROL
MAIN AND SUB SPINDLE
MILLING SPINDLE 12,000 RPM, CAPTO C6
LOWER TURRET WITH LIVE TOOLING
40 POSITION ATC
COOLANT SYSTEM
CHIP CONVEYOR
*KITAGAWA 8" 3-JAW CHUCKS HAVE BEEN INSTALLED ON BOTH SPINDLES
