KITAMURA MYCENTER 4XT CNC VMC (2013)
Have one to sell?
ConditionUsed
1 available

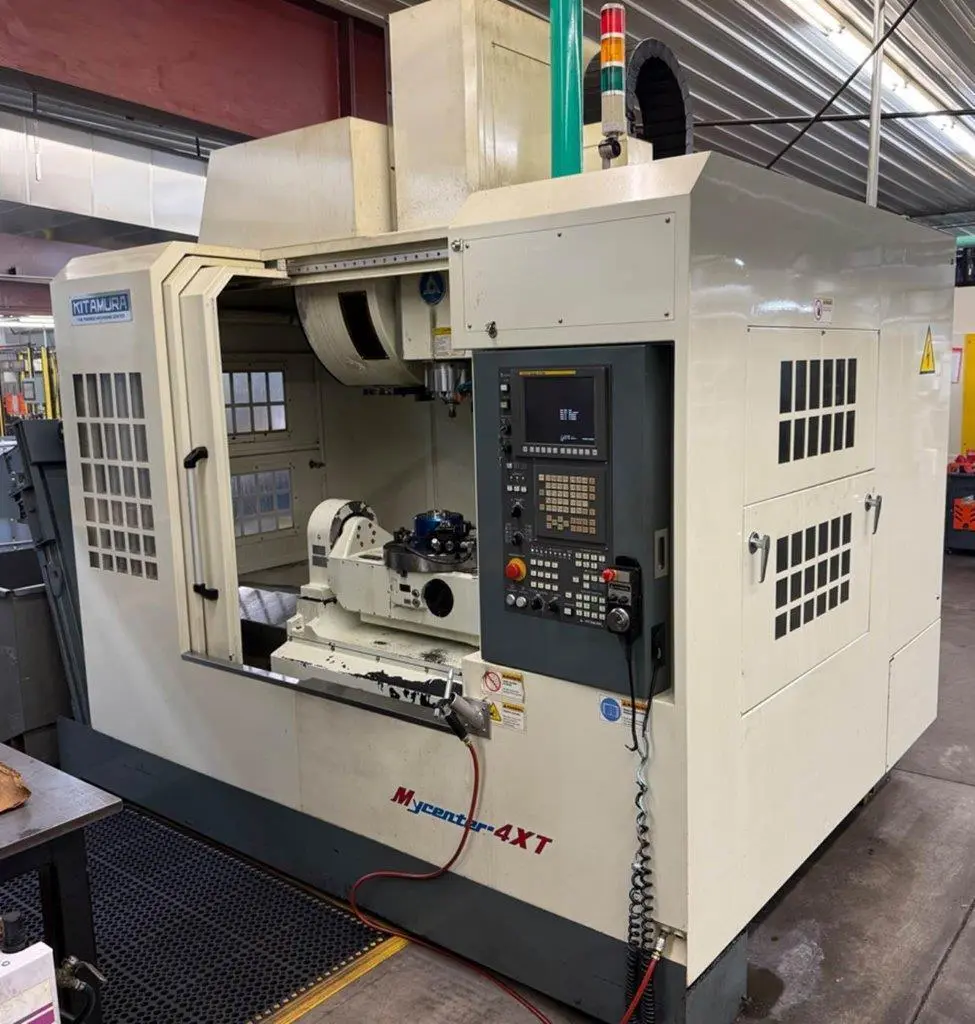

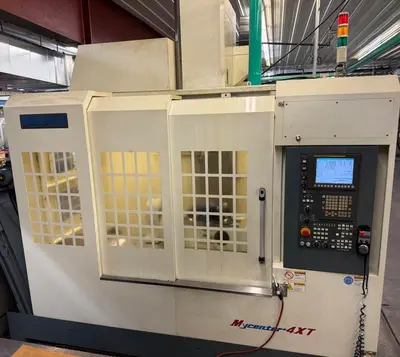

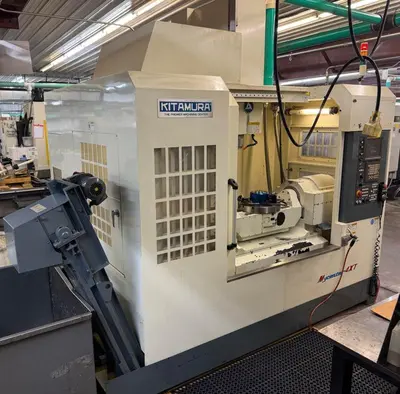

KITAMURA MYCENTER 4XT CNC VMC, 2013 model. Vertical machining center with 31.5" X, 24" Y, and 20" Z travel. Equipped with FANUC 0i-MD, 4th/5th axis trunnion table, 15,000 rpm spindle, and CAT 40 taper. Ideal for precision metalwork.

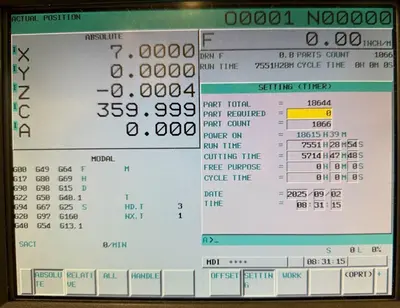

FANUC 0i-MD CONTROL

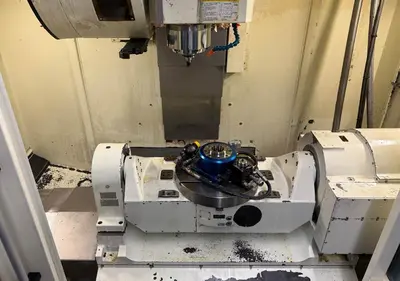

BUILT-IN 4TH/5TH AXIS TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4 + 1)
BIG PLUS CAT 40 SPINDLE
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (220 PSI)
15,000 RPM SPINDLE
CHIP CONVEYOR
SPINDLE CHILLER
BOX WAY (4 BOX WAYS ON Y-AXIS)
** MACHINE-CUT PRIMARY ALUMINUM
** REPLACEMENT COST, AS EQUIPPED - $250,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
KITAMURA MYCENTER 4XT CNC VMC, 2013 model. Vertical machining center with 31.5" X, 24" Y, and 20" Z travel. Equipped with FANUC 0i-MD, 4th/5th axis trunnion table, 15,000 rpm spindle, and CAT 40 taper. Ideal for precision metalwork.
Imperial
| X Travel | 31.5" |
| Y Travel | 24" |
| Z Travel | 20" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 14.3" |
| Table Size (L) | 23.6" |
| Main Spindle Motor | 35 hp |
| Spindle Taper | CAT 40 |
| 4 Axis Table Rotation | 1 Degree Index |
| Table Type A-Axis Trunnion Tilt Range | -42/+120 |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| Coolant Thru | Yes |
| Hi Pressure Coolant System | 220 psi |
| Rapid Traverse Rates | 1417 ipm |
| Control | CNC (FANUC 0IMD) |
FANUC 0i-MD CONTROL
BUILT-IN 4TH/5TH AXIS TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4 + 1)
BIG PLUS CAT 40 SPINDLE
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (220 PSI)
15,000 RPM SPINDLE
CHIP CONVEYOR
SPINDLE CHILLER
BOX WAY (4 BOX WAYS ON Y-AXIS)
** MACHINE-CUT PRIMARY ALUMINUM
** REPLACEMENT COST, AS EQUIPPED - $250,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
