2019 MAZAK HCR 5000/ 5 AXIS HORIZONTAL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
HCR 5000/ 5 AXIS
Condition:
Excellent
Year:
2019
Stock #:
210916
Status:
For Sale

Description

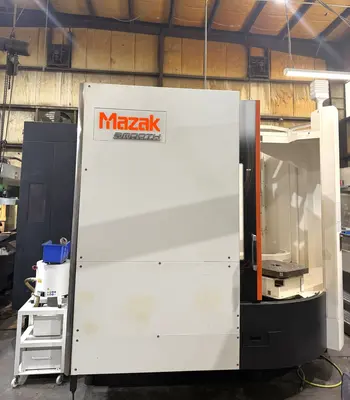

Used 2019 MAZAK HCR 5000, 5-axis horizontal machining center. Features 28.74" X/Y/Z travels, CAT 40 spindle, 47 hp, 18000 rpm, 120-tool capacity, and dual pallets. Equipped with Mazatrol SmoothX, high-pressure coolant, and much more.

X-AXIS TRAVEL28.74"730 mm
Y-AXIS TRAVEL28.74"730 mm
Z-AXIS TRAVEL28.74"730 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR47 hp
SPINDLE SPEED18000 rpm18,000 RPM
MAXIMUM WORKPIECE DIAMETER27.66"702.56 mm
TOOL CAPACITY (ATC)120120
NUMBER OF PALLETS22
PALLET SIZE19.69" x 19.69"19.69" x 19.69"
PALLET SIZE (W)19.69"500.13 mm
PALLET SIZE (L)19.69"500.13 mm
Number of Axis55
PALLET LOAD CAPACITY1102.31 lb
5 AXIS PROGRAMMABLE AXIS'S55
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
HI-PRESSURE COOLANT SYSTEM10000 psi
CHIP CONVEYORYesYes

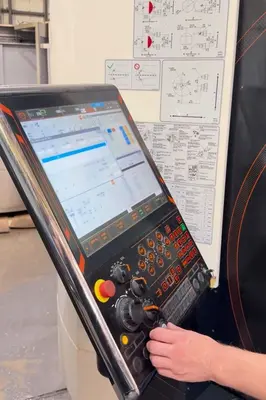

ControlCNC (MAZATROL SMOOTH X)CNC (MAZATROL SMOOTH X)
Dimensions230.85" x 123.51" x 111.85"230.85" x 123.51" x 111.85"
Weight33,907 LBS33,907 LBS

MAZATROL SMOOTH X FULL 5-AXIS SIMULTANEOUS CONTROL
120 TOOL CAPACITY
CAT 40 BIG PLUS SPINDLE
THROUGH SPINDLE COOLANT
1000 PSI SUPER FLOW V8A HIGH PRESSURE PUMP
RENISHAW RMP600 PROBE AND MEASURING SYSTEM
MIST COLLECTOR

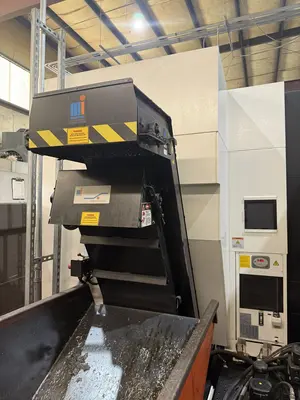

CONCEPT DUAL BELT CHIP CONVEYOR
SMOOTH ENGRAVING FUNCTION

MACHINE IS COMING OUT OF PRECISION SHOP, SINGLE SHIFT ENVIRONMENT.
