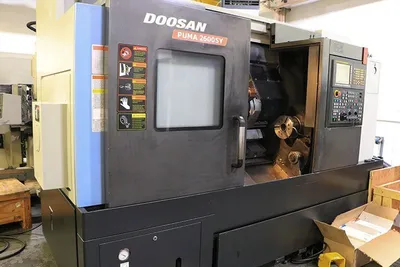

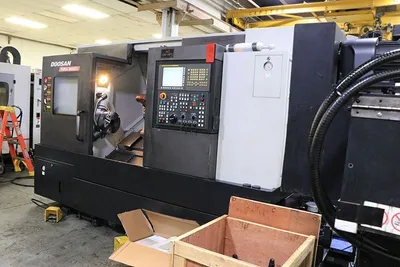

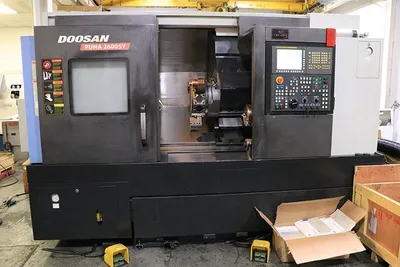

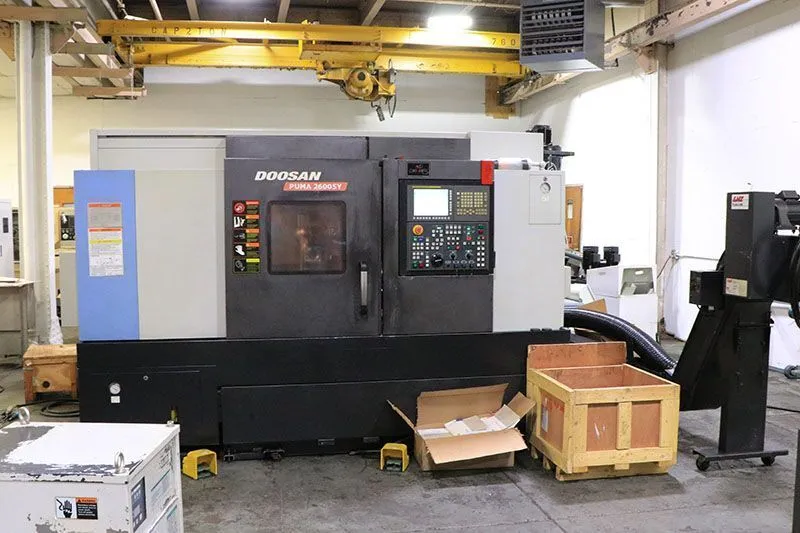

DOOSAN PUMA 2600SY MULTI AXIS LATHE WITH SUB-SPINDLE AND Y AXIS (2011
Have one to sell?
ConditionUsed
1 available
Explore the power of the used 2011 Doosan PUMA 2600SY CNC Lathe with sub-spindle and Y-axis. Featuring a 30.7" max swing, 3.34" spindle bore, and 6,500 RPM sub-spindle speed, it includes a parts catcher, toolsetter, and FANUC 31iT CNC control.
B AXIS RAPID TRAVERSE RATE ................ 1.181 IPM
B AXIS TRAVEL (SUB-SPINDLE) ............... 32.6"
SUB-SPINDLE GUIDEWAY SPAN ................. 13.2"
TOOL HOLDER TYPE .......................... BMT 65P
TURNING TOOL SHANK SIZE ................... 1.0"
BORING BAR DIAMETER, MAIN SPINDLE ......... 2.0"
BORING BAR DIAMETER, SUB SPINDLE .......... 1.0"
MINIMUM PROGRAMMABLE ANGLE ................ 0.001 DEG

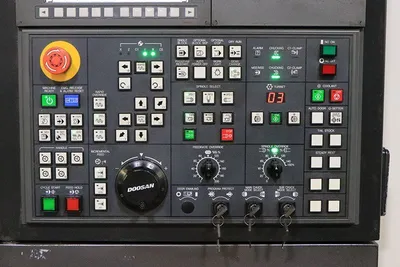

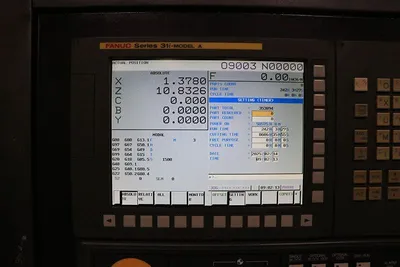

FANUC 31iT CNC CONTROL
TOOLSETTER

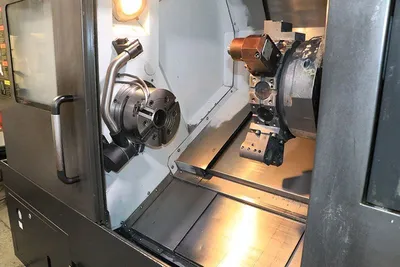

10" 3-JAW HYD. CHUCK ON MAIN SPINDLE
8" 3-JAW HYD. CHUCK ON SUBSPINDLE
PARTS CATCHER, PARTS CONVEYOR

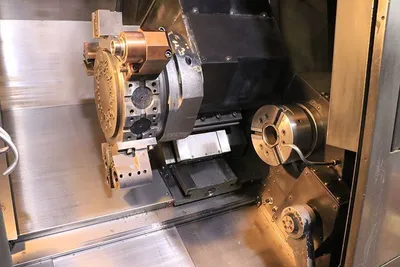

12 STATION TURRET w/24 POSITION INDEXING
CHIP CONVEYOR

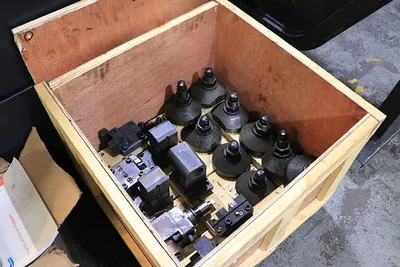

ALL AVAILABLE LIVE & STATIC TOOLHOLDERS
Explore the power of the used 2011 Doosan PUMA 2600SY CNC Lathe with sub-spindle and Y-axis. Featuring a 30.7" max swing, 3.34" spindle bore, and 6,500 RPM sub-spindle speed, it includes a parts catcher, toolsetter, and FANUC 31iT CNC control.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.34"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 26.8" |
| Maximum Cutting Length | 29.92" |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.7" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" |
| C-Axis Indexing (1, 2) | .001, .001 INDEXING |
| W-Axis Travel Sub Spindle | 29 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.34" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | No |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 4 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 394 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (FANUC 31IT) |
| Dimensions | 153" X 74" x 85" |
| Weight | 14,220 LBS |
B AXIS RAPID TRAVERSE RATE ................ 1.181 IPM
B AXIS TRAVEL (SUB-SPINDLE) ............... 32.6"
SUB-SPINDLE GUIDEWAY SPAN ................. 13.2"
TOOL HOLDER TYPE .......................... BMT 65P
TURNING TOOL SHANK SIZE ................... 1.0"
BORING BAR DIAMETER, MAIN SPINDLE ......... 2.0"
BORING BAR DIAMETER, SUB SPINDLE .......... 1.0"
MINIMUM PROGRAMMABLE ANGLE ................ 0.001 DEG
FANUC 31iT CNC CONTROL
TOOLSETTER
10" 3-JAW HYD. CHUCK ON MAIN SPINDLE
8" 3-JAW HYD. CHUCK ON SUBSPINDLE
PARTS CATCHER, PARTS CONVEYOR
12 STATION TURRET w/24 POSITION INDEXING
CHIP CONVEYOR
ALL AVAILABLE LIVE & STATIC TOOLHOLDERS
