MAZAK QTN 350-II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QTN 350-II
Condition:
Good
Year:
2012
Stock #:
210918
Status:
For Sale

Description

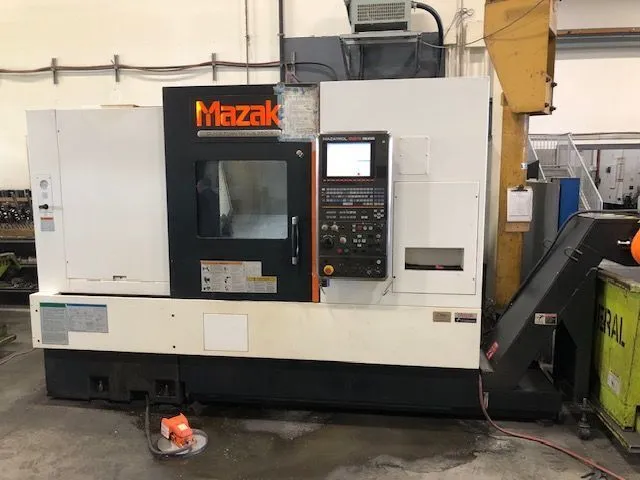

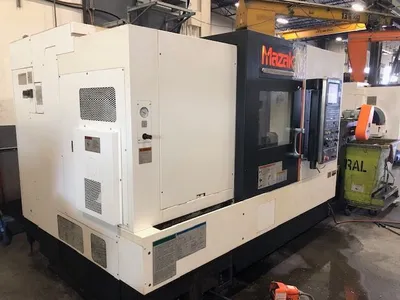

MAZAK QTN 350-II CNC Lathe, 2012, used. Features include a 26.77" max swing, 16.54" max turning diameter, 40 hp spindle motor, 3300 RPM, hydraulic chuck, tailstock, tool presetter, chip conveyor, and coolant tank. Contact for the control options list.

Max. Swing26.77"679.96 mm
Max Turning Diameter16.54"420.12 mm
Spindle Bore/Max Bar Capacity4.4"/ 4.0"4.4"/ 4.0"
Z Travel25.5"647.7 mm
X Travel10.13"257.3 mm
Distance Between Centers2424
Chuck Size12"304.8 mm
Chuck TypeHydraullicHydraullic
Spindle Motor40 hp
Spindle Speeds (RPM)33003300
Spindle Bore/Bar Capacity4.4 in
Max. Bar Capacity4"101.6 mm
Turret Tool Positions1212
TailstockYesYes
High Pressure Coolant SystemYESYES
Chip ConveyorYesYes
Chip ConveyorSideSide
Steady RestNoNo
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Dimensions136" x 84" x 84"136" x 84" x 84"
Weight14,000 LBS14,000 LBS

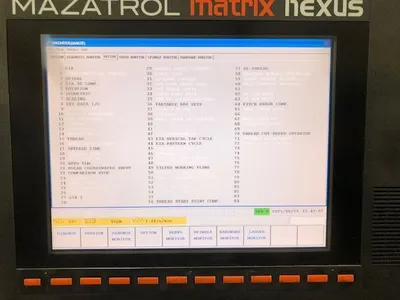

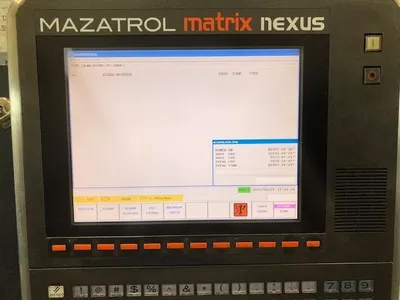

MAZATROL MATRIX NEXUS CONTROL

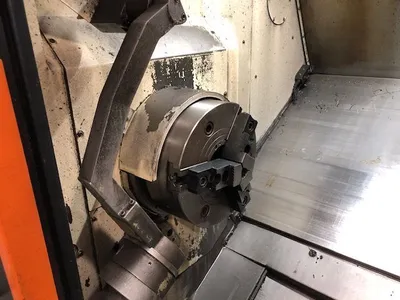

12" KITAGAWA HYDRAULIC CHUCK
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
COOLANT TANK
CONTROL OPTIONS LIST ON REQUEST
