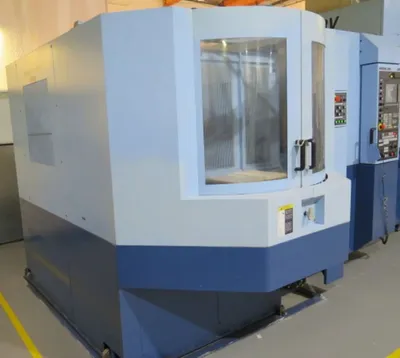

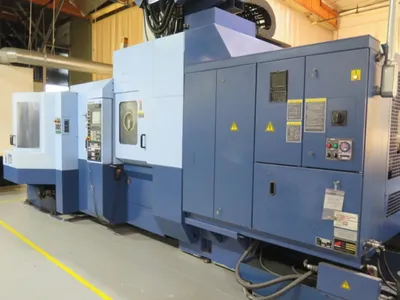

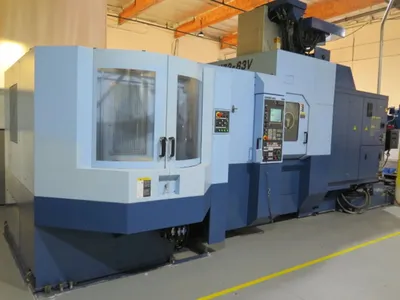

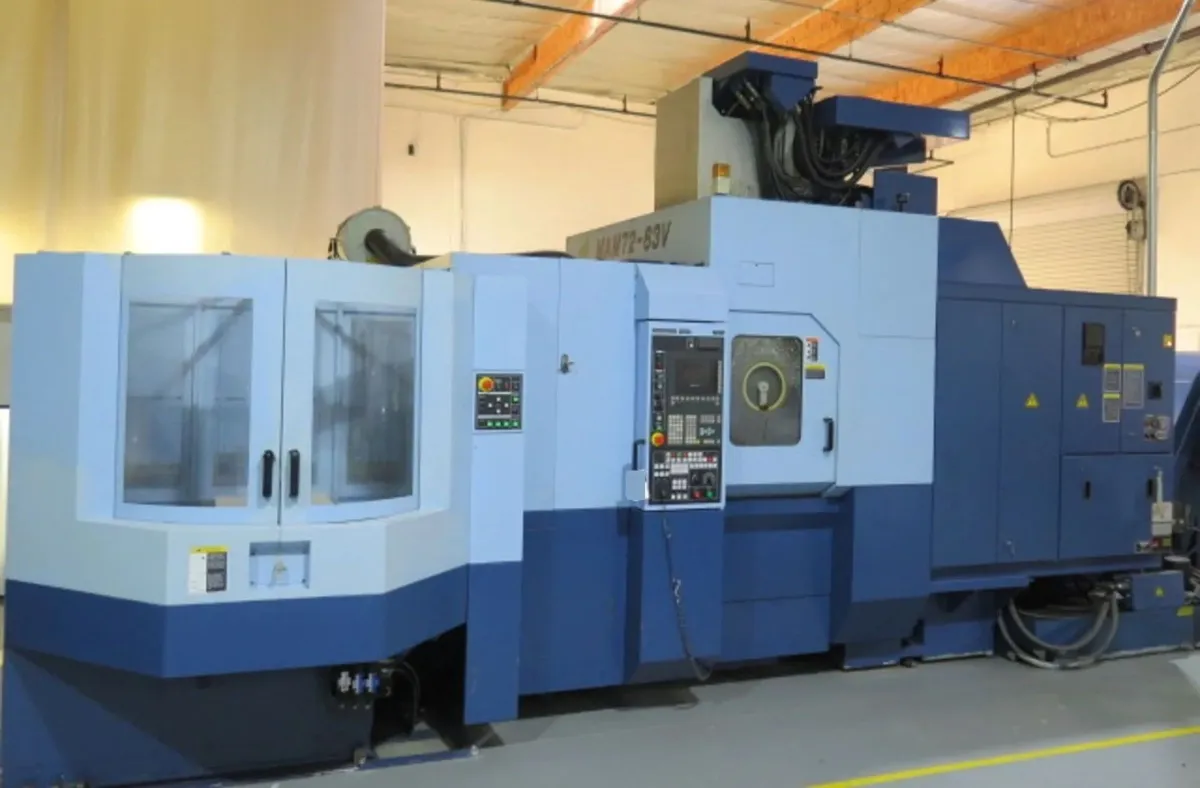

MATSUURA MAM 72-63V PC6 - 5 AXIS VERTICAL (2007)
Have one to sell?
ConditionUsed
1 available
MATSUURA MAM 72-63V PC6, 5-axis vertical machining center (2007) with Siemens CNC. Features include 20,000 rpm spindle, 240-tool capacity, 6-station pallet system, and high-speed through-spindle coolant. Ideal for complex precision tasks.

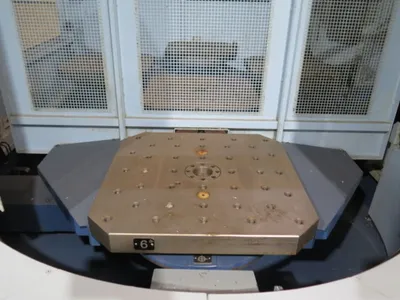

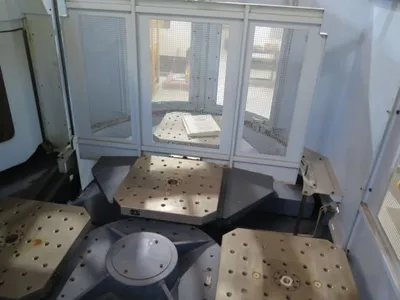

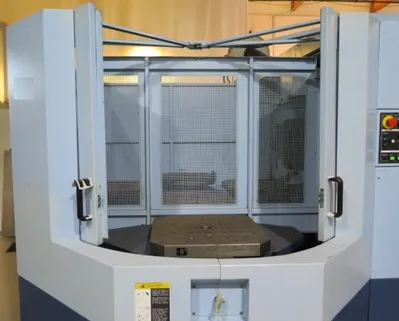

PALLET:
NUMBER OF PALLETS: 6 STATION
PALLET SURFACE: 19.68″ X 19.68″
MAX WORKPIECE DIAMETER: 28.34″
MAX WORKPIECE HEIGHT: 17.71″
MAX WEIGHT ON TABLE: 770 LBS

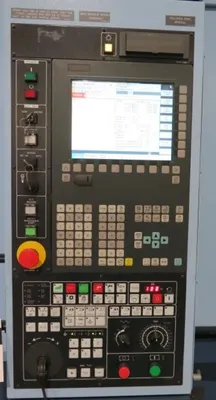

SIEMENS CNC CONTROL

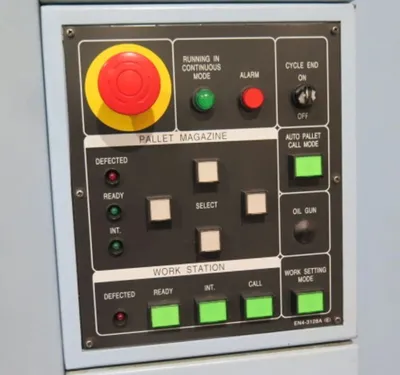

6 PALLETS CELL SYSTEM
20,000 RPM HIGH SPEED SPINDLE

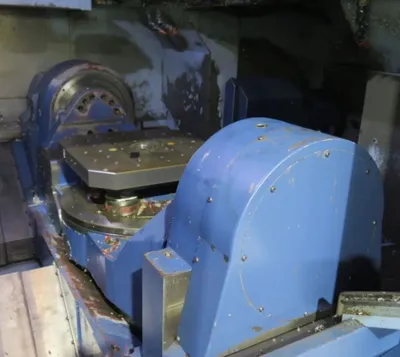

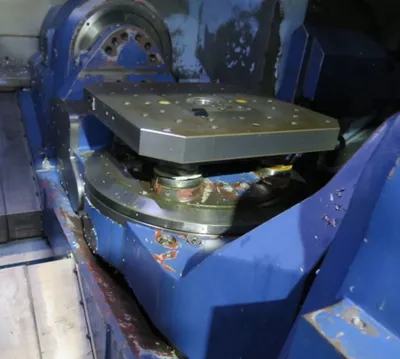

19.8” X 19.8” NC PROGRAMMABLE SWIVELING TRUNNION TABLE
5 AXIS SIMULTANEOUS MACHINING
FULL 4TH AXIS THRU PALLETS
THROUGH SPINDLE COOLANT

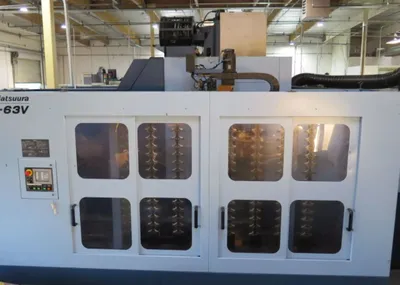

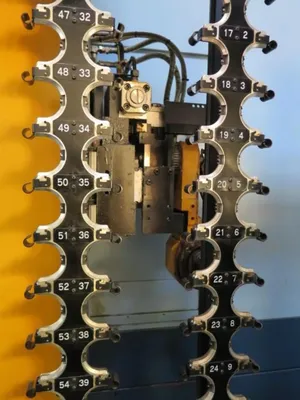

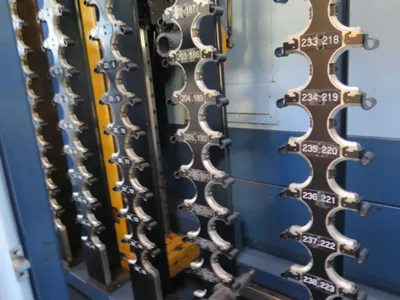

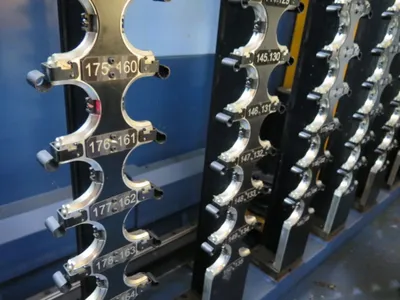

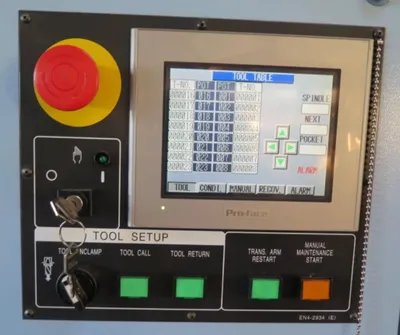

240 STATION AUTOMATIC Tool Changer
BT-40 SPINDLE TAPER
RIGID TAPPING

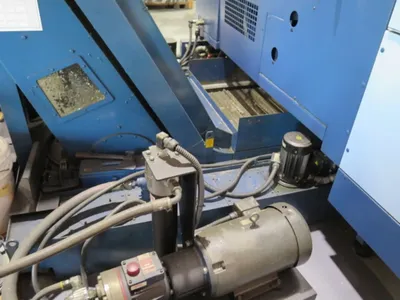

COOLANT SYSTEM

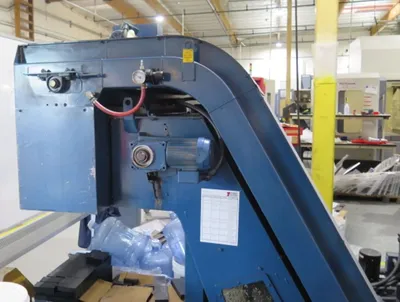

CHIP CONVEYOR
MATSUURA MAM 72-63V PC6, 5-axis vertical machining center (2007) with Siemens CNC. Features include 20,000 rpm spindle, 240-tool capacity, 6-station pallet system, and high-speed through-spindle coolant. Ideal for complex precision tasks.
Imperial
| X Travel | 29.921" |
| Y Travel | 33.268" |
| Z Travel | 25.984" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 240 |
| Table Size (W) | 19.68" |
| Table Size (L) | 19.68" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | BT 40 |
| Table Type A-Axis Trunnion Tilt Range | -120°～+120° |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Part Probe | No |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Rapid Traverse Rates | 1968 ipm |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1968IPM/ 1968IPM/ 1968IPM |
| Chip Conveyor | YES |
| Control | CNC (SIEMENS) |
| Dimensions | 249″ X 153″ X 126″ - MACHINE ONLY |
| Weight | 31,967 LBS |
PALLET:
NUMBER OF PALLETS: 6 STATION
PALLET SURFACE: 19.68″ X 19.68″
MAX WORKPIECE DIAMETER: 28.34″
MAX WORKPIECE HEIGHT: 17.71″
MAX WEIGHT ON TABLE: 770 LBS
SIEMENS CNC CONTROL
6 PALLETS CELL SYSTEM
20,000 RPM HIGH SPEED SPINDLE
19.8” X 19.8” NC PROGRAMMABLE SWIVELING TRUNNION TABLE
5 AXIS SIMULTANEOUS MACHINING
FULL 4TH AXIS THRU PALLETS
THROUGH SPINDLE COOLANT
240 STATION AUTOMATIC Tool Changer
BT-40 SPINDLE TAPER
RIGID TAPPING
COOLANT SYSTEM
CHIP CONVEYOR
