MAZAK QTN 450-II/ 80" WITH STEADY REST (2012)
Have one to sell?
ConditionUsed
1 available
$139,500.00 USD

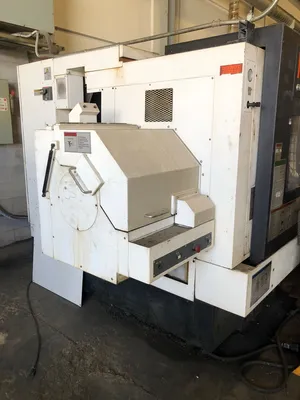

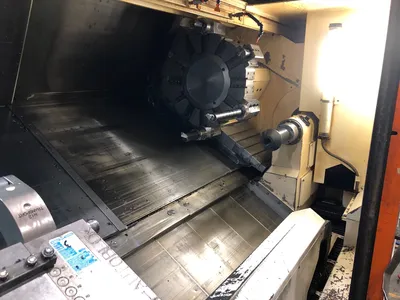

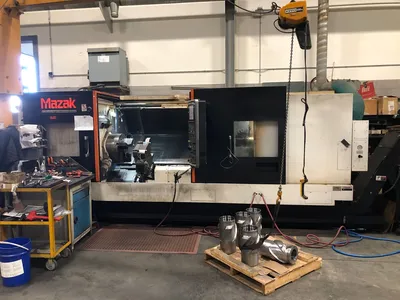

2012 MAZAK QTN 450-II CNC Lathe features a max swing of 33.26", 22.8" max turning diameter, 80" between centers, hydraulic chuck, tailstock, rear chuck prepped and equipped with MAZATROL MATRIX NEXUS, tool presetter, and SMW Autoblok SLU-X-4-ZS Hydraulic Steady Rest. 50 hp spindle with 2000 RPM.
MAZAK NEXUS QTN 450II/2000 CNC UNIVERSAL TURNING CENTER
NEW 2012
SPECIFICATIONS:
MAX. SWING 33.27"
MAX. CUTTING DIAMETER 22.8"
MAX. CUTTING LENGTH 84.2"
SPINDLE NOSE A2-15"
SPINDLE BORE 7.2"
SPINDLE SPEEDS 2000 RPM
SPINDLE TORQUE 1363 FT-LBS.
TURRET TYPE 12 POSITION
TURRET CLAMPING FORCE 11,700 LBS.
STROKE X AXIS 10.2"
Z AXIS 83.25"
RAPID TRAVERSE RATE X , Z 1181 IPM , 1299 IPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 5
STROKE OF TAIL BODY 72.5"
MAIN MOTOR 50 HP AC
MACHINE WEIGHT 24,9107 LBS.

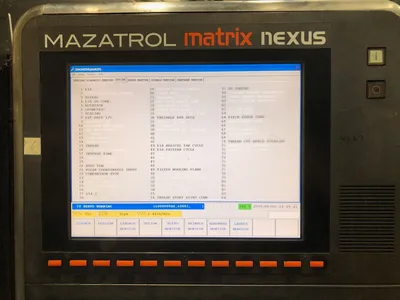

Mazatrol Matrix Nexus Control
Chip Conveyor
Coolant Tank
Tool Presetter
Tailstock

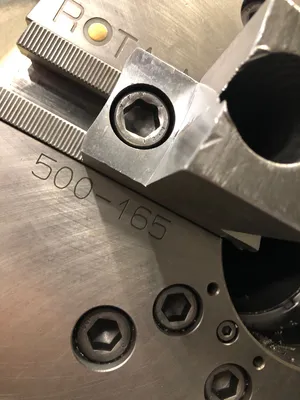

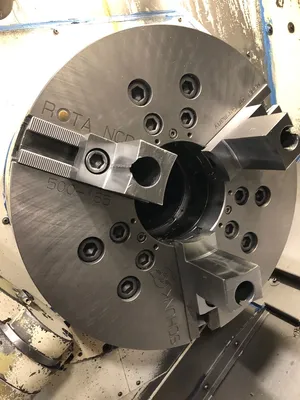

Schunk Rota NC-500-165 Hydraulic Chuck

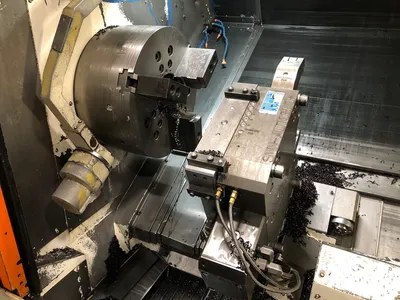

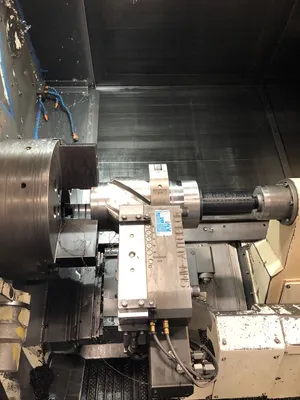

SMW Autoblok SLU-X-4-ZS Hydraulic Steady Rest
(30-245 mm capacity/ 1.2" - 9.65" capacity)
Rear chuck prepped
2012 MAZAK QTN 450-II CNC Lathe features a max swing of 33.26", 22.8" max turning diameter, 80" between centers, hydraulic chuck, tailstock, rear chuck prepped and equipped with MAZATROL MATRIX NEXUS, tool presetter, and SMW Autoblok SLU-X-4-ZS Hydraulic Steady Rest. 50 hp spindle with 2000 RPM.
Imperial
| Max. Swing | 33.26" |
| Max Turning Diameter | 22.8" |
| Spindle Bore/Max Bar Capacity | 7.24"/ 6.5" |
| Z Travel | 83.5" |
| X Travel | 12.13" |
| Distance Between Centers | 80 |
| Chuck Size | 20" |
| Chuck Type | Hydraullic |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 2000 |
| Spindle Bore/Bar Capacity | 7.24 in |
| Max. Bar Capacity | 6.5" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Steady Rest | Yes |
| Rear Chuck Prep | Yes |
| Rear Chuck | No |
| Control | CNC |
| Dimensions | 264" x 104" x 84" |
| Weight | 25,910 LBS |
MAZAK NEXUS QTN 450II/2000 CNC UNIVERSAL TURNING CENTER
NEW 2012
SPECIFICATIONS:
MAX. SWING 33.27"
MAX. CUTTING DIAMETER 22.8"
MAX. CUTTING LENGTH 84.2"
SPINDLE NOSE A2-15"
SPINDLE BORE 7.2"
SPINDLE SPEEDS 2000 RPM
SPINDLE TORQUE 1363 FT-LBS.
TURRET TYPE 12 POSITION
TURRET CLAMPING FORCE 11,700 LBS.
STROKE X AXIS 10.2"
Z AXIS 83.25"
RAPID TRAVERSE RATE X , Z 1181 IPM , 1299 IPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 5
STROKE OF TAIL BODY 72.5"
MAIN MOTOR 50 HP AC
MACHINE WEIGHT 24,9107 LBS.
Mazatrol Matrix Nexus Control
Chip Conveyor
Coolant Tank
Tool Presetter
Tailstock
Schunk Rota NC-500-165 Hydraulic Chuck
SMW Autoblok SLU-X-4-ZS Hydraulic Steady Rest
(30-245 mm capacity/ 1.2" - 9.65" capacity)
Rear chuck prepped
