MAZAK QTN 250MSY MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250MSY
Condition:
Very Good
Year:
2012
Stock #:
210936
Status:
For Sale

Description

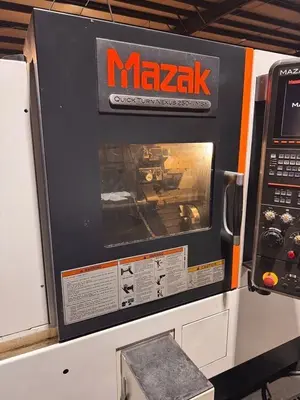

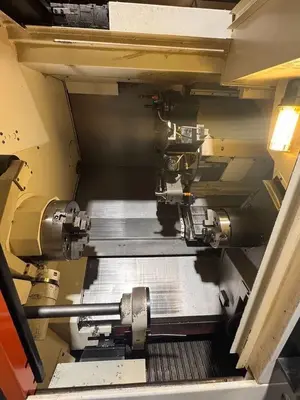

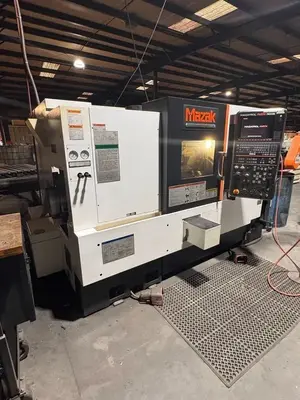

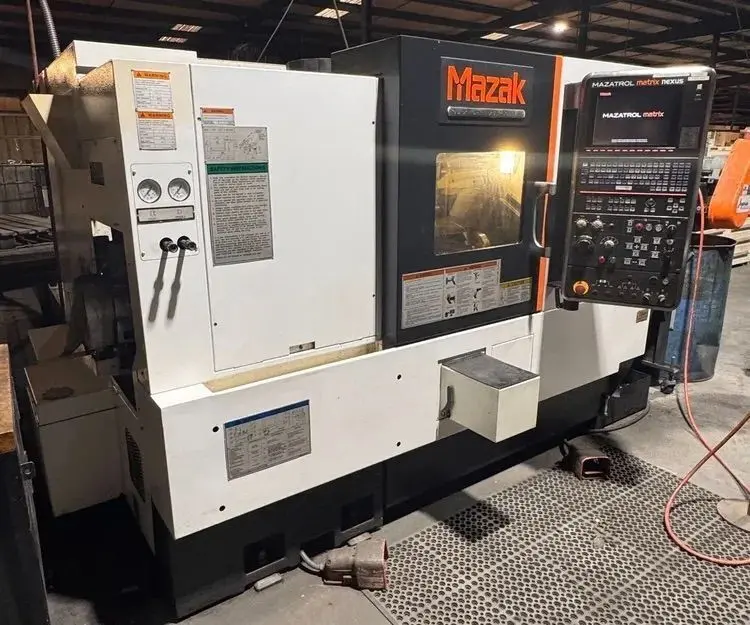

Used 2012 MAZAK QTN 250MSY Multi-Axis CNC Lathe for sale. Features a max swing of 26.5", 4000 RPM main spindle, sub spindle, Y-axis, live tooling, parts catcher, and chip conveyor. Controlled with MAZATROL MATRIX NEXUS for seamless operation.

Maximum Swing26.5"673.1 mm
Max Turning Diameter14.5"368.3 mm
Main Spindle Bore/Max Bar Capacity3.46/ 3.03.46/ 3.0
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length21.28"540.51 mm
X-Axis Travel (X1, X2, X3)9.09.0
Z-Axis Travel (Z1, Z2, Z3)22.6322.63
Y-Axis Travel (Y1, Y2, Y3)+/- 2.0"+/- 2.0"
C-Axis Indexing (1, 2)0.0001/ 0.00010.0001/ 0.0001

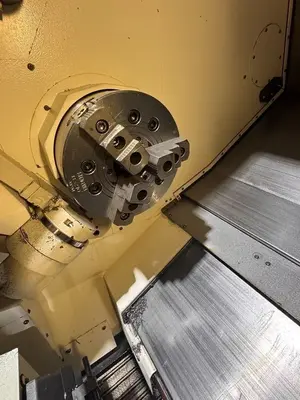

Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535

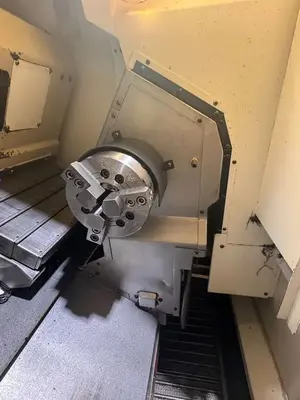

Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.052.05
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1515

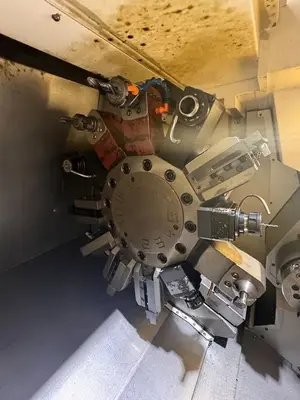

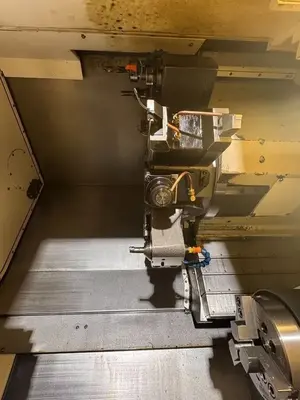

Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.07.0
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)213213
Multi Tap TransformerYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Dimensions115.4 X 70.1" X 72.4115.4 X 70.1" X 72.4
Weight11,464 LBS11,464 LBS

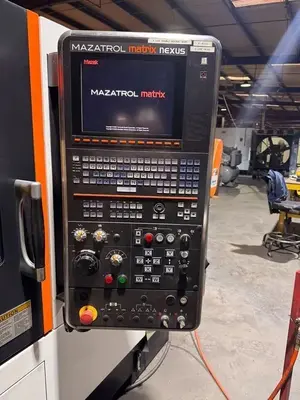

MAZATROL MATRIX NEXUS CNC CONTROL
SUB SPINDLE
ALL AVAILABLE LIVE TOOLING
Y AXIS
CONVERSATIONAL PROGRAMMING
CHIP CONVEYOR

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250MSY
Condition:
Very Good
Year:
2012
Stock #:
210936
Status:
For Sale

Description

Used 2012 MAZAK QTN 250MSY Multi-Axis CNC Lathe for sale. Features a max swing of 26.5", 4000 RPM main spindle, sub spindle, Y-axis, live tooling, parts catcher, and chip conveyor. Controlled with MAZATROL MATRIX NEXUS for seamless operation.

Specifications

Imperial

Maximum Swing26.5"
Max Turning Diameter14.5"
Main Spindle Bore/Max Bar Capacity3.46/ 3.0
Tail Stock/Sub SpindleSub Spindle
Maximum Cutting Length21.28"
X-Axis Travel (X1, X2, X3)9.0
Z-Axis Travel (Z1, Z2, Z3)22.63
Y-Axis Travel (Y1, Y2, Y3)+/- 2.0"
C-Axis Indexing (1, 2)0.0001/ 0.0001
Main Spindle Chuck Size10"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter3.46"
Main Spindle Maximum Bar Work3"
Main Spindle Speed4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)35
Sub Spindle/2nd Spindle Chuck Size6
Sub Spindle/2nd Spindle Bore Size2.05
Sub Spindle/2nd Spindle Chuck TypeHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)15
Number of Turrets1
Turret Tool Positions 1, 212
Turret Rotary Tool Spindle Speed 1, 24500
Turret Rotary Tool Horse Power 1, 27.0
Bar FeedYes
Parts CatcherYes
Chip ConveyorYes
Tool Eye Automatic Front SpindleYes
Tool Eye Automatic Second SpindleYes
High Pressure Coolant System (PSI)213
Multi Tap TransformerYes
ControlCNC (MAZATROL MATRIX NEXUS)
Dimensions115.4 X 70.1" X 72.4
Weight11,464 LBS

Equipped With

MAZATROL MATRIX NEXUS CNC CONTROL
SUB SPINDLE
ALL AVAILABLE LIVE TOOLING
Y AXIS
CONVERSATIONAL PROGRAMMING
CHIP CONVEYOR
