MAZAK QT 250MSY CNC TURNING & MILLING CENTER W/ Y-AXIS, BAR FEED INTERFACE
Have one to sell?
ConditionUsed
1 available

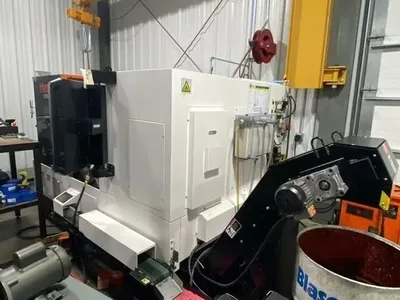

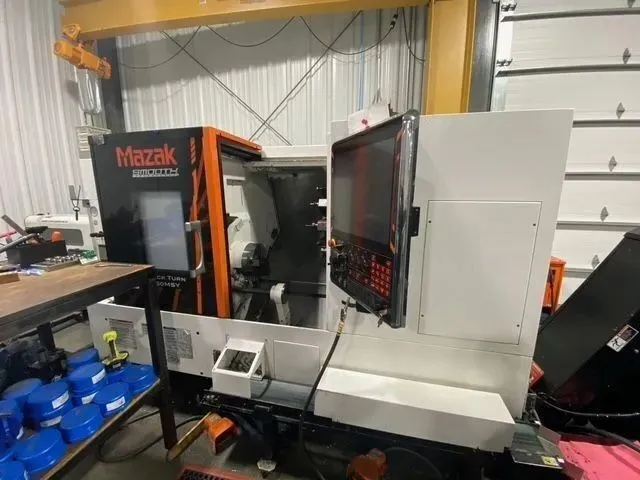

MAZAK QT 250MSY CNC Turning & Milling Center, 2019 model, offers a max swing of 26.5", main spindle speed of 4000 RPM, and a sub spindle speed of 6000 RPM. It includes a bar feeder, chip conveyor, and Mazatrol Smooth G control with only 2348 cutting hours.
MAZATROL SMOOTH G CNC COLOR CONTROL
6" 3-JAW REAR SPINDLE
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
BARFEED INTERFACE
LNS SERVO 80 S2 SHORT MAGAZINE BARFEED SYSTEM
AUTOMATIC TOOL EYE
TWIN AUTOMATIC PARTS CATCHERS, FRONT CHUCK & REAR CHUCK
(3) ROTARY HEADS

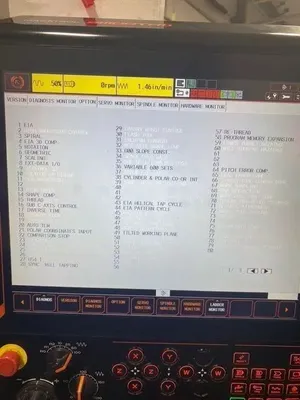

EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT - DATA I/O
SHPE COMP, THREAD, SUB C-AXIS CON TROL, INVERSE TIME
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAP
VARIABLE 600 SETS. CYLINDER & POLARCO-OR INT, G00 SLOPE CONST.
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, TILTED WORK PLANE
RE-THREAD, PROGRAM MEMORY EXPANSION, PITCH ERROR COMP
ONLY 2348 CUTTING HOURS
MAZAK QT 250MSY CNC Turning & Milling Center, 2019 model, offers a max swing of 26.5", main spindle speed of 4000 RPM, and a sub spindle speed of 6000 RPM. It includes a bar feeder, chip conveyor, and Mazatrol Smooth G control with only 2348 cutting hours.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 21.275" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | .0001, .0001 Degree |
| W-Axis Travel Sub Spindle | 19.85 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 |
| Main & Sub Spindle Synchronization | Yes |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Bar Feed Interface | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 3 |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 826 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC |
| Weight | 12,000 LBS |
MAZATROL SMOOTH G CNC COLOR CONTROL
6" 3-JAW REAR SPINDLE
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
BARFEED INTERFACE
LNS SERVO 80 S2 SHORT MAGAZINE BARFEED SYSTEM
AUTOMATIC TOOL EYE
TWIN AUTOMATIC PARTS CATCHERS, FRONT CHUCK & REAR CHUCK
(3) ROTARY HEADS
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT - DATA I/O
SHPE COMP, THREAD, SUB C-AXIS CON TROL, INVERSE TIME
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAP
VARIABLE 600 SETS. CYLINDER & POLARCO-OR INT, G00 SLOPE CONST.
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, TILTED WORK PLANE
RE-THREAD, PROGRAM MEMORY EXPANSION, PITCH ERROR COMP
ONLY 2348 CUTTING HOURS
