2012 MAZAK QTN 350-II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QTN 350-II
Year:
2012
Stock #:
210942
Status:
For Sale

Description

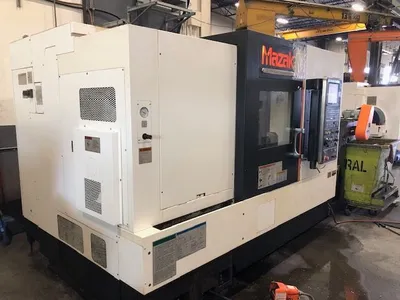

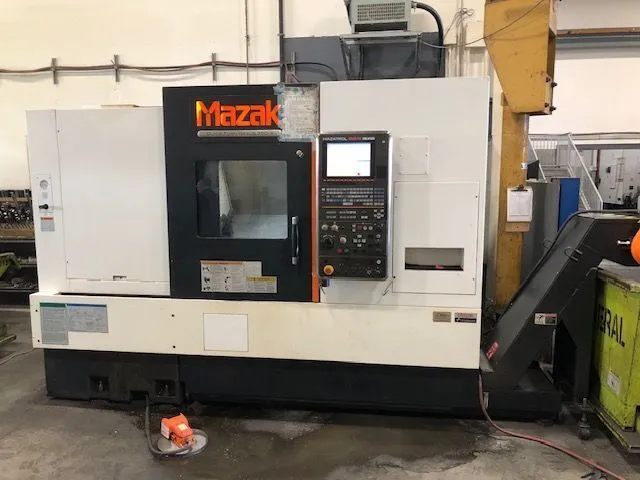

MAZAK QTN 350-II CNC Lathe with SMW Steady Rest, a 2012 model featuring a 40 HP spindle motor, 12 turret tool positions, and a max swing of 26.77". Includes MAZATROL MATRIX NEXUS CNC control, 12" hydraulic chuck, and tailstock.

Max. Swing26.77"679.96 mm
Max Turning Diameter16.64"422.66 mm
Spindle Bore/Max Bar Capacity4.4"/ 4.0"4.4"/ 4.0"
Z Travel63.26"1,606.8 mm
X Travel10.13"257.3 mm
Machining Length60.71"1,542 mm
Chuck Size15"381 mm
Chuck TypeHydraullicHydraullic
Spindle Motor40 hp
Spindle Speeds (RPM)33003300
Spindle Bore/Bar Capacity4.4 in
Max. Bar Capacity4"101.6 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Steady RestYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Dimensions136" x 84" x 84"136" x 84" x 84"
Weight13,400 LBS13,400 LBS

SPECIFICATIONS:
CONTROLLED AXIS 2
SWING                   26.77"
TURNING DIAMETER        16.54"
CENTER DISTANCE         24"
CHUCK SIZE 12"
X AXIS TRAVELS          10.13"
Z AXIS TRAVELS          25.50"
BAR CAPACITY            4"
SPINDLE SPEED           3,300 RPM

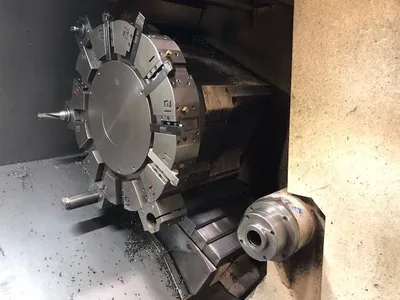

TURRET STATIONS         12
SPINDLE MOTOR           40 HP
MACHINE DIMENSIONS 136" X 84" X 84"
MACHINE WEIGHT          13,400 LBS
HOURS 7879 TOTAL CUT; 42397 POWER ON

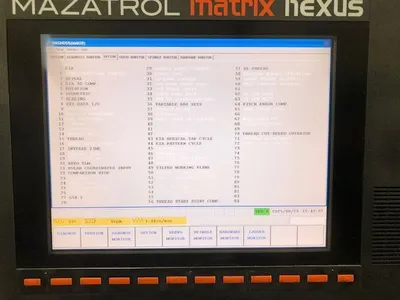

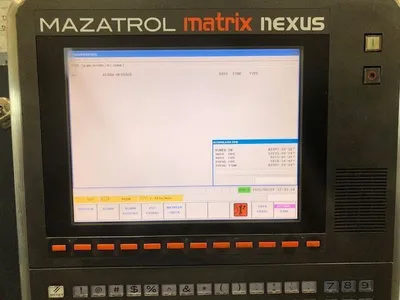

MAZATROL MATRIX NEXUS CNC CONTROL

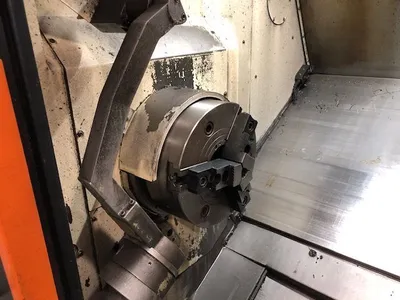

12" KITAGAWA HYDRAULIC CHUCK
TAILSTOCK
TOOL PRE-SETTER
CHIP CONVEYOR
COOLANT TANK
CONTROL OPTIONS LIST ON REQUEST
