MAZAK VTC-250D/50
Have one to sell?
ConditionUsed
1 available

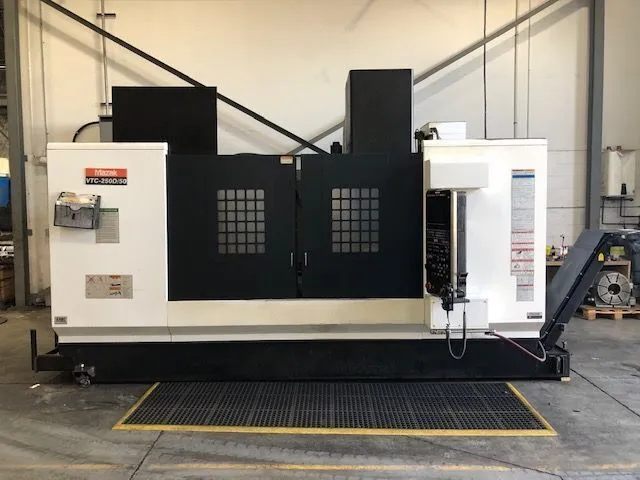

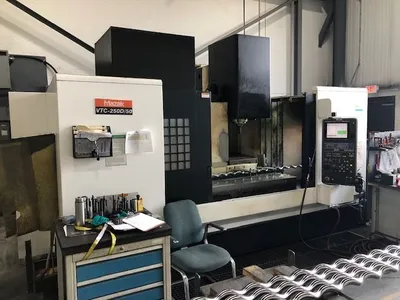

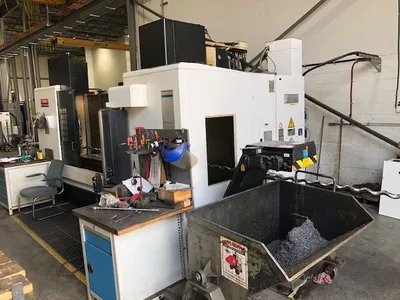

2014 MAZAK VTC-250D/50 Vertical Machining Center with Mazatrol Matrix Nexus 2 control, 6,000 RPM spindle speed, and 24-tool ATC. Features 4-axis control, high-pressure coolant, chip conveyor, and more. Must move immediately. 8162 total cut hours.
SPECIFICATIONS:
Controlled Axis: 4
X-axis travel: 69.3”
Y-axis travel: 25”
Z-axis travel: 25.6”
Min/Max distance spindle nose to table: 7.1” - 32.2”
Table size: 82.7” x 25”
Maximum weight on table: 2778 lbs.
Spindle taper: CAT-50
Spindle Speeds: 6,000 RPM (2-range)
Spindle Motor: 30 HP
ATC Capacity: 24
Max tool diameter x length: 4.3” x 13.7”
Max tool weight: 17.8 lbs.
Electrical requirements: 480 Volt; 60A; 50 KVA
Machine Dimensions, L x D x H: 171" x 134" x 105" H
Machine Weight: 24,000 lbs

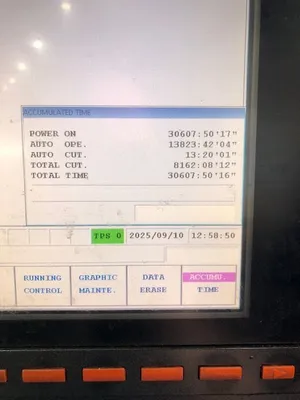

Hours: 8162 total cut;

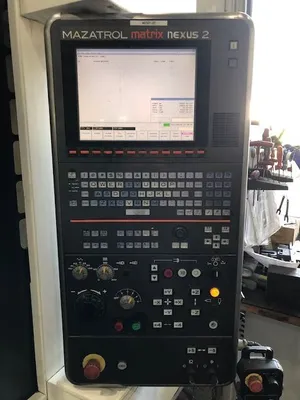

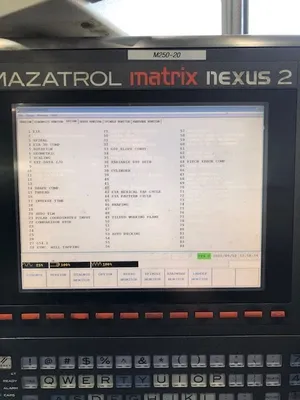

- Mazatrol Matrix Nexus 2 Control

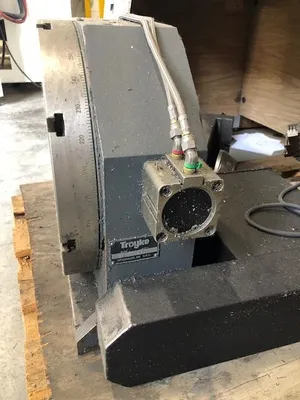

- Troyke DL-16.5B 4th axis rotary table (16-1/2” dia with 6-1/2” thru-hole) and tailstock
- Spindle “C-Axis” 0.001 degree incremental index/clamping for broaching
- Mazak Renishaw RTS (Radio Tool Setter)
- Mazak Renishaw Workpiece probe software (probe to be confirmed)
- High pressure coolant thru spindle
- Mayfran Chip Conveyor
- Coolant Tank
- Control Options List on request
