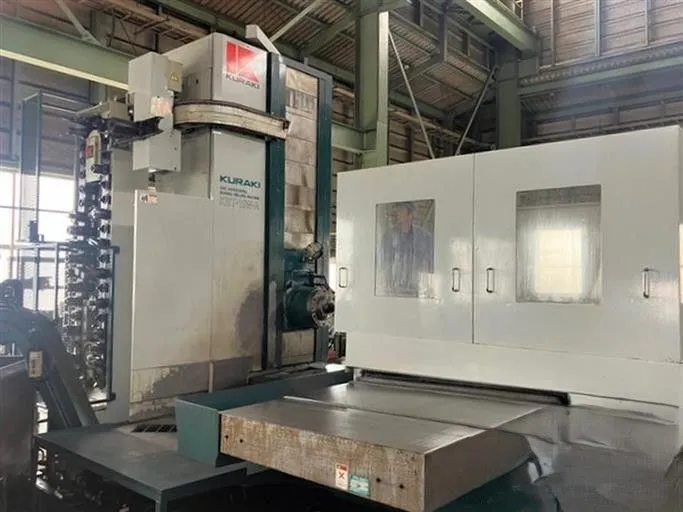

KURAKI KBT 11W A 4.3'' CNC HORIZONTAL BORING MILL
Have one to sell?
ConditionUsed
1 available
Discover precision with the used 2014 KURAKI KBT 11WA CNC horizontal boring mill. This machine features a 4.33" spindle, 78.74" X-axis, 59.05" Y-axis, and a powerful 24 hp drive. Includes a FANUC 31iA5 control and a 40-station automatic tool changer.
X-AXIS TRAVEL 78.74"
Y-AXIS TRAVEL 59.05"
Z-AXIS TRAVEL 57.08"
W-AXIS TRAVEL 19.68"
TABLE DIMENSIONS55.11" X 62.99"
TABLE ROTATION .001°
TABLE WEIGHT CAPACITY 14,300 LBS

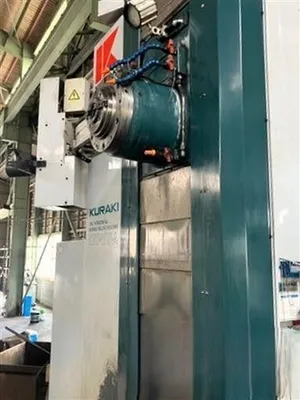

SPINDLE SPEED 5 - 3000 RPM
SPINDLE TAPER BT-50

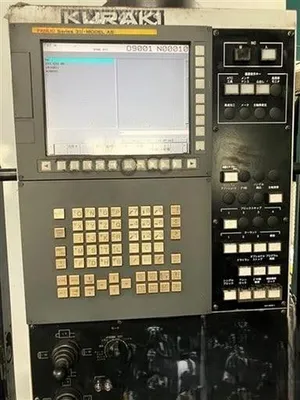

FANUC 31IA5 CNC CONTROL

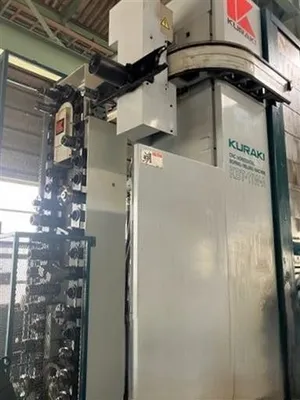

40-STATION AUTOMATIC TOOL CHANGER

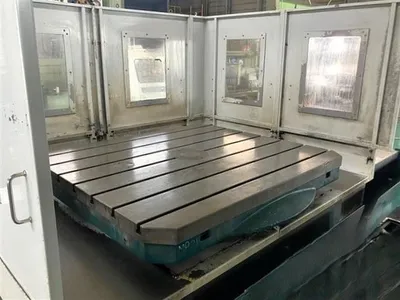

55.11" X 62.99" BUILT-IN ROTARY TABLE
SPLASH ENCLOSURE
CHIP CONVEYOR
Discover precision with the used 2014 KURAKI KBT 11WA CNC horizontal boring mill. This machine features a 4.33" spindle, 78.74" X-axis, 59.05" Y-axis, and a powerful 24 hp drive. Includes a FANUC 31iA5 control and a 40-station automatic tool changer.
Imperial
| Spindle Size | 4.33" |
| X-Horiz Tvl of Table | 78.74" |
| Y-Vert Tvl of Head | 59.05" |
| Power | 24 hp |
| RPM | 3,000 RPM |
| Table-W | 55.11" |
| Table-L | 62.99" |
| Control | CNC (FANUC 31IA5 CNC CONTROL) |
| Weight | 63,800 LBS. |
X-AXIS TRAVEL 78.74"
Y-AXIS TRAVEL 59.05"
Z-AXIS TRAVEL 57.08"
W-AXIS TRAVEL 19.68"
TABLE DIMENSIONS55.11" X 62.99"
TABLE ROTATION .001°
TABLE WEIGHT CAPACITY 14,300 LBS
SPINDLE SPEED 5 - 3000 RPM
SPINDLE TAPER BT-50
FANUC 31IA5 CNC CONTROL
40-STATION AUTOMATIC TOOL CHANGER
55.11" X 62.99" BUILT-IN ROTARY TABLE
SPLASH ENCLOSURE
CHIP CONVEYOR
