MAZAK QTN 350MY/ 80"

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 350MY II
Condition:
Excellent
Year:
2020
Stock #:
210951
Status:
For Sale

Description

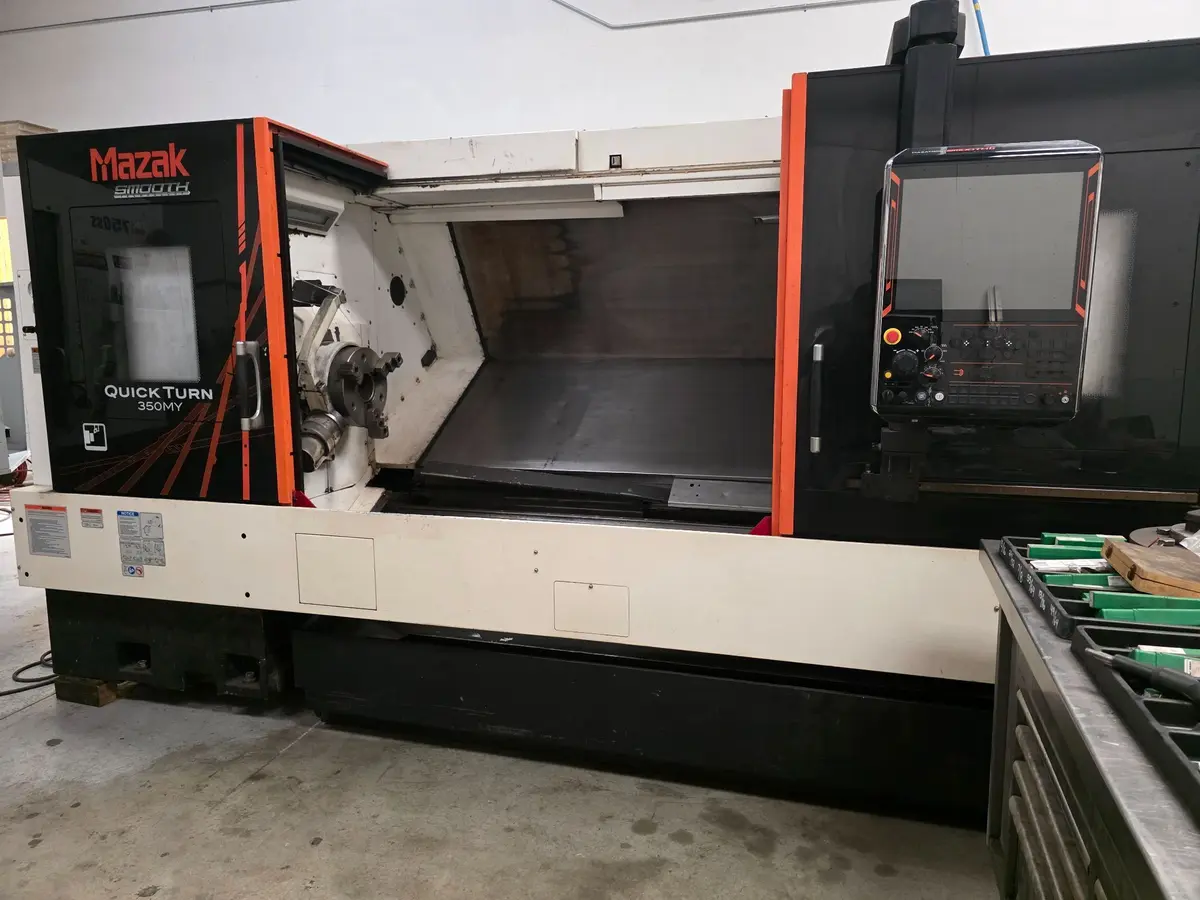

This used 2020 MAZAK QTN 350MY II CNC lathe offers efficient multi-axis machining with a 29.5" maximum swing and 82.92" cutting length. Equipped with a chip conveyor, steady rest, and a pallet of accessories, it ensures high productivity.

Maximum Swing29.5"749.3 mm
Max Turning Diameter16.5"419.1 mm
Main Spindle Bore/Max Bar Capacity4.4"/ 4.0"4.4"/ 4.0"
Tail Stock/Sub SpindleTAILSTOCKTAILSTOCK
Maximum Cutting Length82.92"2,106.2 mm
X-Axis Travel (X1, X2, X3)10.1310.13
Z-Axis Travel (Z1, Z2, Z3)63.2563.25
Y-Axis Travel (Y1, Y2, Y3)6.0"6.0"
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4"101.6 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)40/30 HP (30 min/continuous)40/30 HP (30 min/continuous)
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21010
Steady RestNoNo
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Coolant Thru Milling HeadYesYes
High Pressure Coolant System (PSI)213213
ControlCNCCNC
Weight19,870 LBS.19,870 LBS.

CHIP CONVEYOR

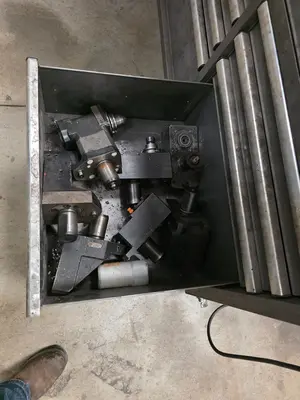

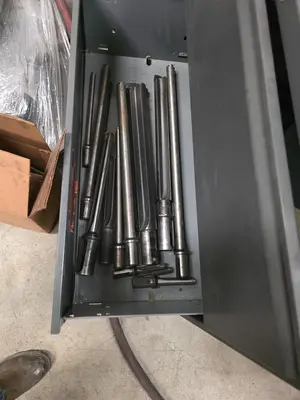

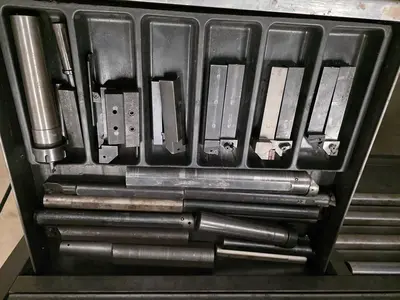

PALLET OF ACCESSORIES
STEADY REST
