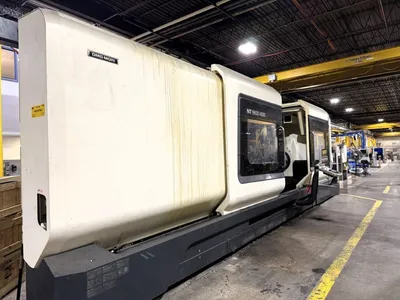

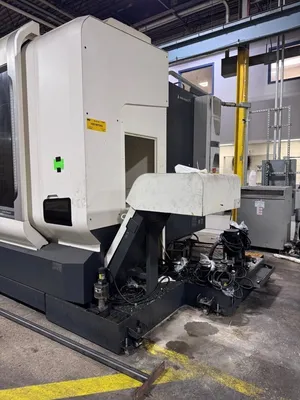

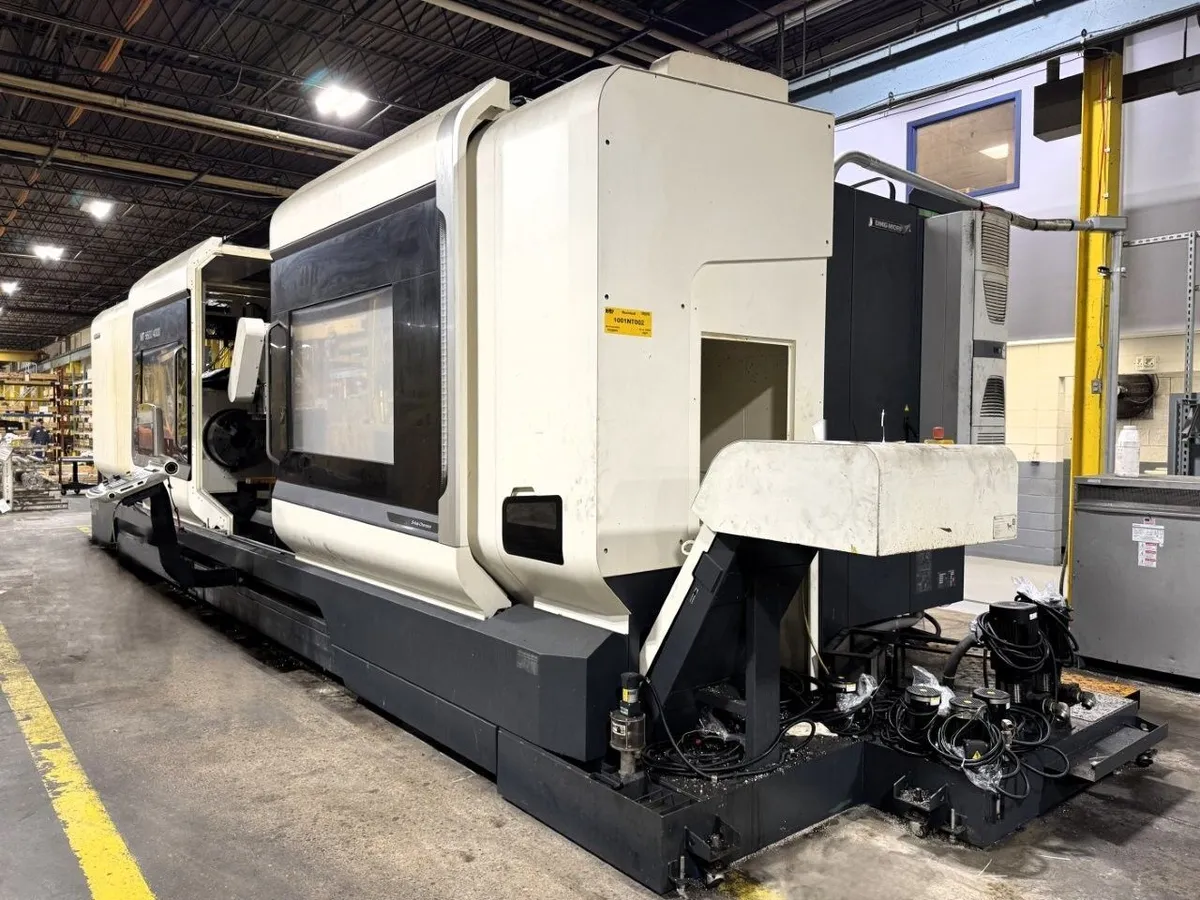

2017 DMG MORI NT 6600DCG/ 4000CS TURNING & MILLING CENTER

MAXIMUM TURNING DIAMETER 42.1"
MAXIMUM TURNING LENGTH 160.4"
X-AXIS TRAVEL 40.9"
Y-AXIS TRAVEL 26.0"
Z-AXIS TRAVEL 163.4"
B-AXIS TOOL SPINDLE ROTATION RANGE +/-120 DEGREES
C-AXIS INDEXING, SPINDLES 1 & 2 0.001 DEGREE
MAX. WORK WEIGHT, CHUCKING 15,400 LBS

SPINDLES 1 & 2:

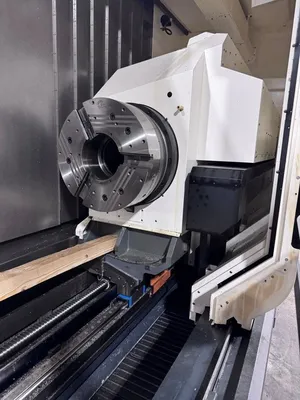

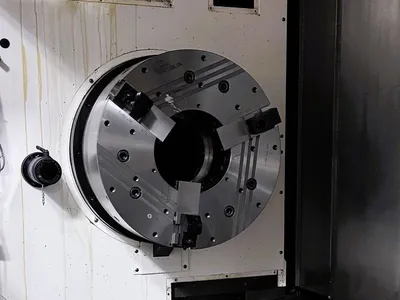

CHUCK SIZE, EACH SPINDLE 24.8" SMW HOLLOW CHUCK
CHUCK TYPE, EACH SPINDLE B24A2021A + F2511H-21A
MAX. SPINDLE SPEED, EACH SPINDLE 1000 RPM
C-AXIS ROTATION, EACH SPINDLE 0.0001 DEGREES
THRU-SPINDLE HOLE EACH SPINDLE 10.31"

TOOL SPINDLE:
X1-AXIS TRAVEL 40.9"
Y-AXIS (LONG BORING BAR SPECS) +/-12.9"/+12.9"/-11.0"
Z1-AXIS TRAVEL 163.3"
B-AXIS ROTATION RANGE +/-120 DEGREES
MINIMUM INDEXING INCREMENT 0.0001 DEGREE
MAXIMUM TOOL SPINDLE SPEED 8000 RPM

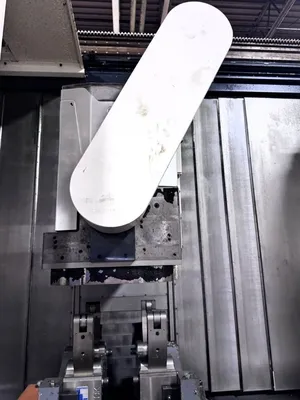

RAM CONFIGURATION OCTAGONAL
RAM DIAMETER 17.7"
TOOL STORAGE CAPACITY 140 ATC
SPINDLE TAPER CAPTO C8

LONG BORING BAR CHANGER:
MAXIMUM DIAMETERS OF HOLDERS 3.14", 3.94", AND 4.72"
MAXIMUM LENGTH OF HOLDERS 50.39"

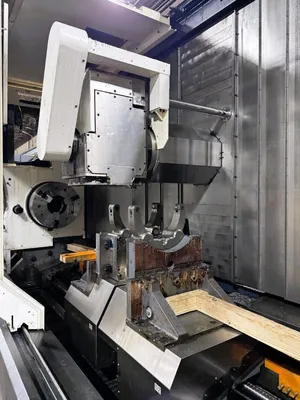

STEADY RESTS:
NUMBER OF STEADY RESTS 2
STEADY REST TYPE PROGRAMMABLE
XA STEADY REST TRAVEL 118.11"
XB STEADY REST TRAVEL 157.48"

RAPID TRAVERSE RATES:
X-AXIS 131.2 FPM
Y-AXIS 98.4 FPM
Z-AXIS 105 FPM

CNC CONTROL:

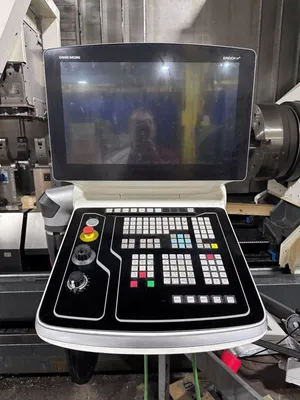

SIEMENS 840D CNC CONTROL WITH CELOS
TECHNOLOGY CYCLE ECCENTRIC TURNING & MILLING STATION
TECHNOLOGY CYCLE 5-AXIS SIMULTANEOUS MACHINING
TECHNOLOGY CYCLE FOR THE APPLICATION OF AN ALTERNATING SPEED
TECHNOLOGY CYCLE MULTI-THREADS
TECHNOLOGY CYCLE EASY TOOL MONITOR F.CNC SIEMENS
