MAZAK VTC-200G (2011)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VTC-200G
Condition:
Very Good
Year:
2011
Stock #:
210956
Status:
For Sale

Description

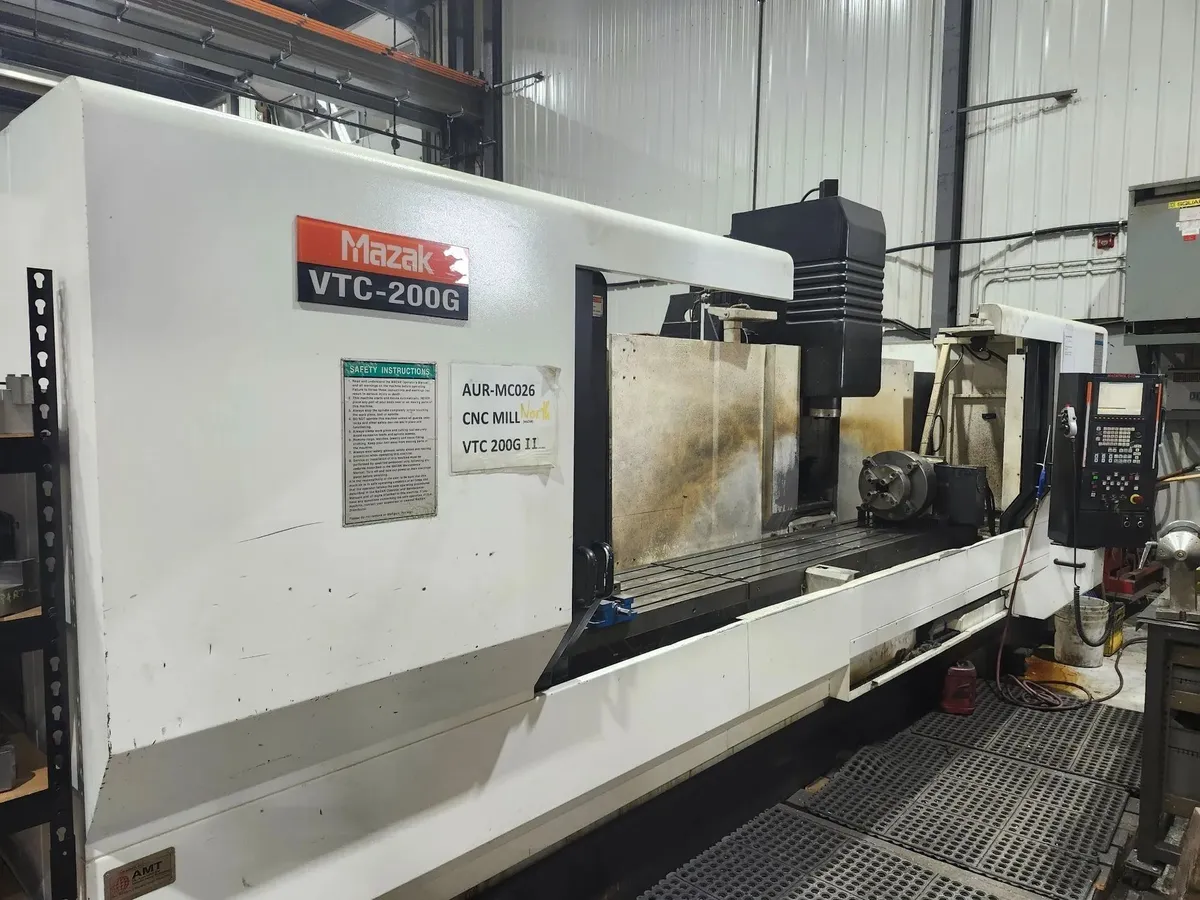

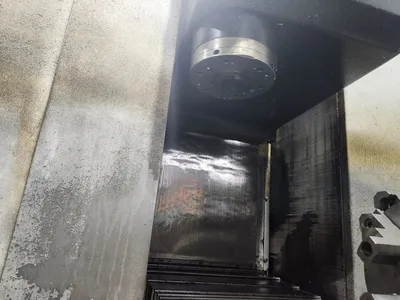

2011 MAZAK VTC-200G Vertical Machining Center. Features 144"x20"x20" travels, 10,000 rpm spindle, 24-tool capacity, 20 hp motor, CAT 40 taper, 12" 4th axis rotary table, high-pressure coolant, part/tool probes, chip conveyor. Ideal for complex machining tasks.

X Travel144"3,657.6 mm
Y Travel20"508 mm
Z Travel20"508 mm
Spindle Speed10000 rpm10,000 RPM
Tool Capacity (ATC)2424
Table Size (W)20"508 mm
Table Size (L)154"3,911.6 mm
Main Spindle Motor20 hp
Spindle TaperCAT 40CAT 40
4th Axis Rotary Table Size12"304.8 mm
Coolant Thru High PressureYesYes
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
Rapid Traverse Rates: X Axis Y Axis Z Axis630/ 1181/ 1181 IPM630/ 1181/ 1181 IPM
Chip ConveyorYESYES
ControlCNC (MAZATROL FUSION 640MN)CNC (MAZATROL FUSION 640MN)
Weight30,000 LBS30,000 LBS

Max workpiece load on table: 4,600 lbs
Traveling column: Spindle and column move; table fixed —
allows very long X travel with stable workpiece support

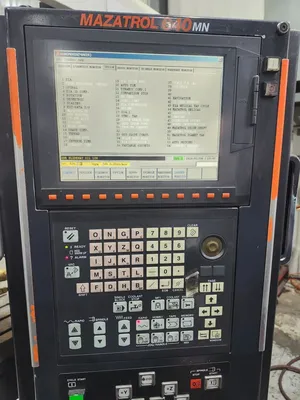

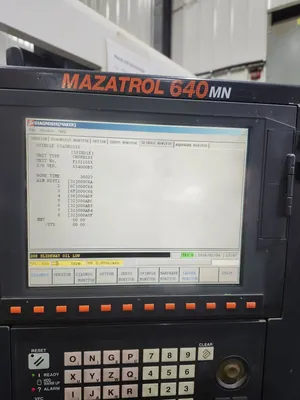

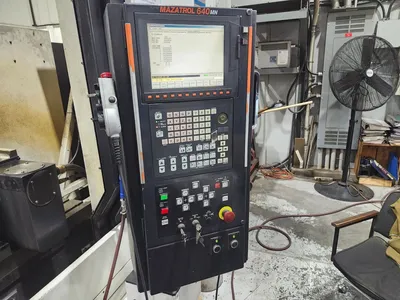

MAZATROL FUSION 640MN
HIGH PRESSURE COOLANT THRU SPINDLE
MR320 ROTARY TABLE (12.5")
PART PROBE

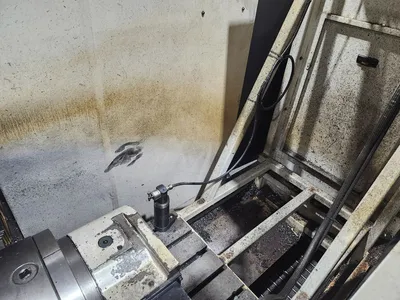

TOOL PROBE
CHIP CONVEYOR
