YAMA SEIKI GV-1200/ 49.2" 4-JAW TABLE & 63" SWING (2012)
Have one to sell?
ConditionUsed
1 available

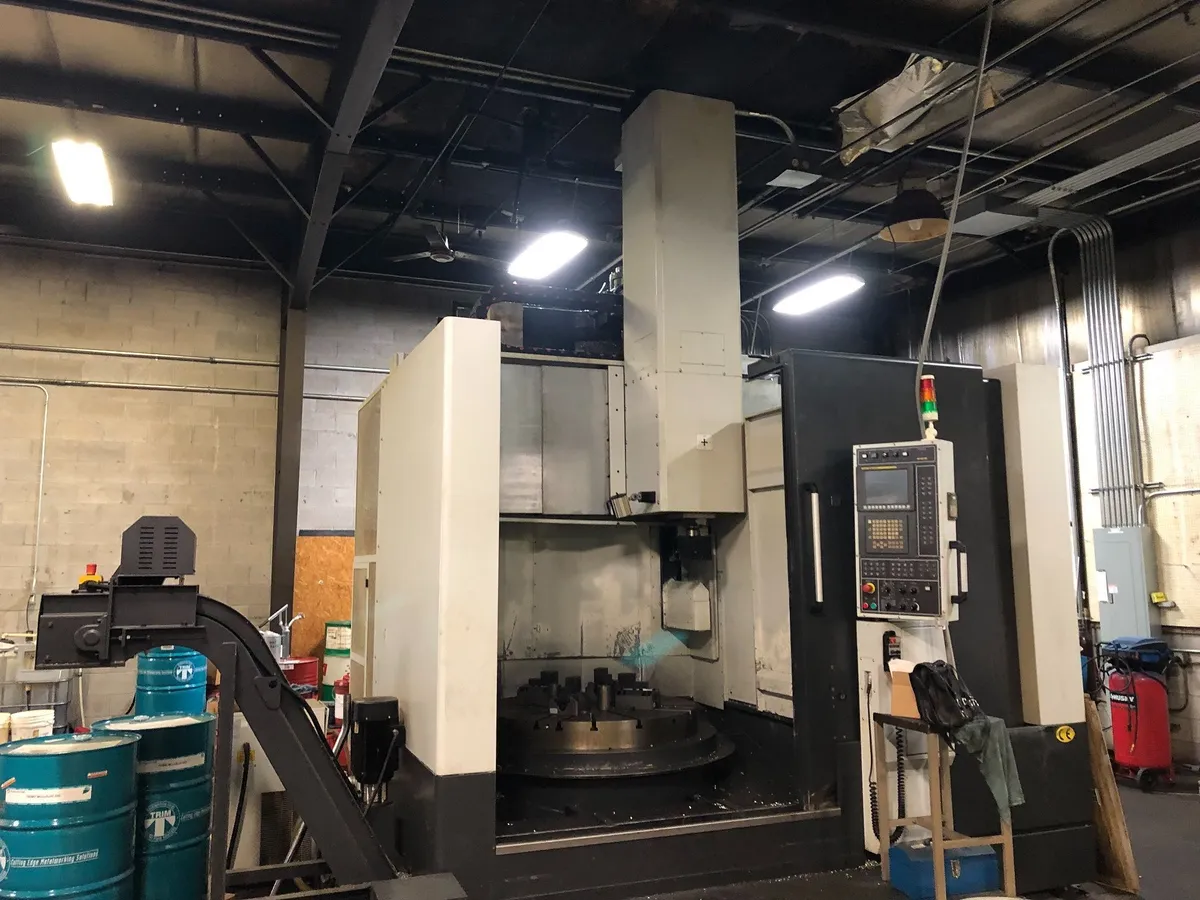

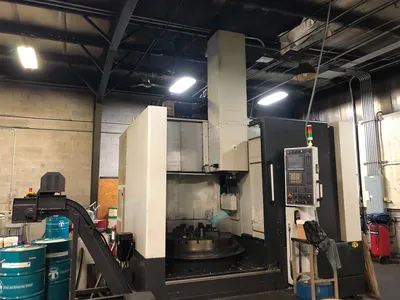

YAMA SEIKI GV-1200 VTL Vertical CNC features a 49.2" 4-jaw table, 63" swing, and 11,000 lb load capacity. Equipped with 16 position ATC, FANUC 0I-TD CNC control, chip conveyor, chiller, and misc. tooling. Main motor power is 60 hp with a spindle speed of 350 rpm.

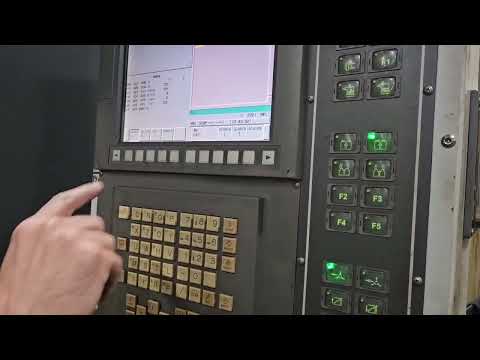

FANUC 0I-TD SERIES CNC CONTROL W/ MANUAL GUIDEI
49" 4 JAW TABLE

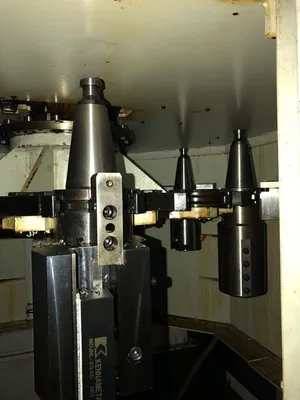

16 POSITION ATC
CHIP CONVEYOR
CHILLER

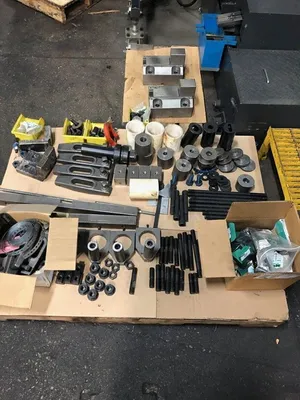

MISC. TOOLING
YAMA SEIKI GV-1200 VTL Vertical CNC features a 49.2" 4-jaw table, 63" swing, and 11,000 lb load capacity. Equipped with 16 position ATC, FANUC 0I-TD CNC control, chip conveyor, chiller, and misc. tooling. Main motor power is 60 hp with a spindle speed of 350 rpm.
Imperial
| Table Dia | 49.2" |
| Table Load Capacity | 11,000 lb |
| Swing | 63" |
| Turning Height | 53.2" |
| Main Motor | 60 hp |
| X-Axis Travel | 36.81 |
| Z-Axis Travel | 35.43" |
| Power | 60 hp |
| Main Spindle Turning Diameter Max: | 51.2 in |
| Spindle | 350 rpm |
| Control | CNC (FANUC 0i-TD) |
| Dimensions | 144.1″ x 152.5″ x 212.4″ |
| Weight | 51,700 lb |
FANUC 0I-TD SERIES CNC CONTROL W/ MANUAL GUIDEI
49" 4 JAW TABLE
16 POSITION ATC
CHIP CONVEYOR
CHILLER
MISC. TOOLING
