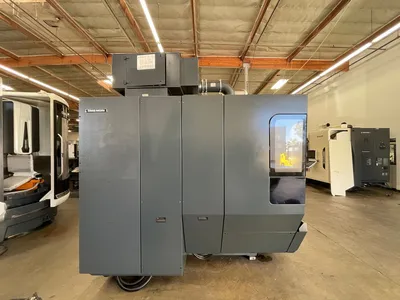

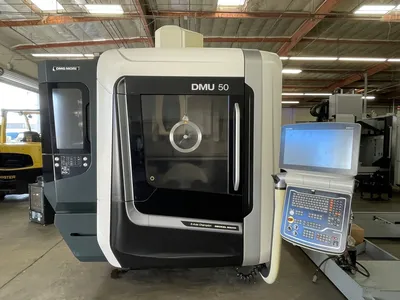

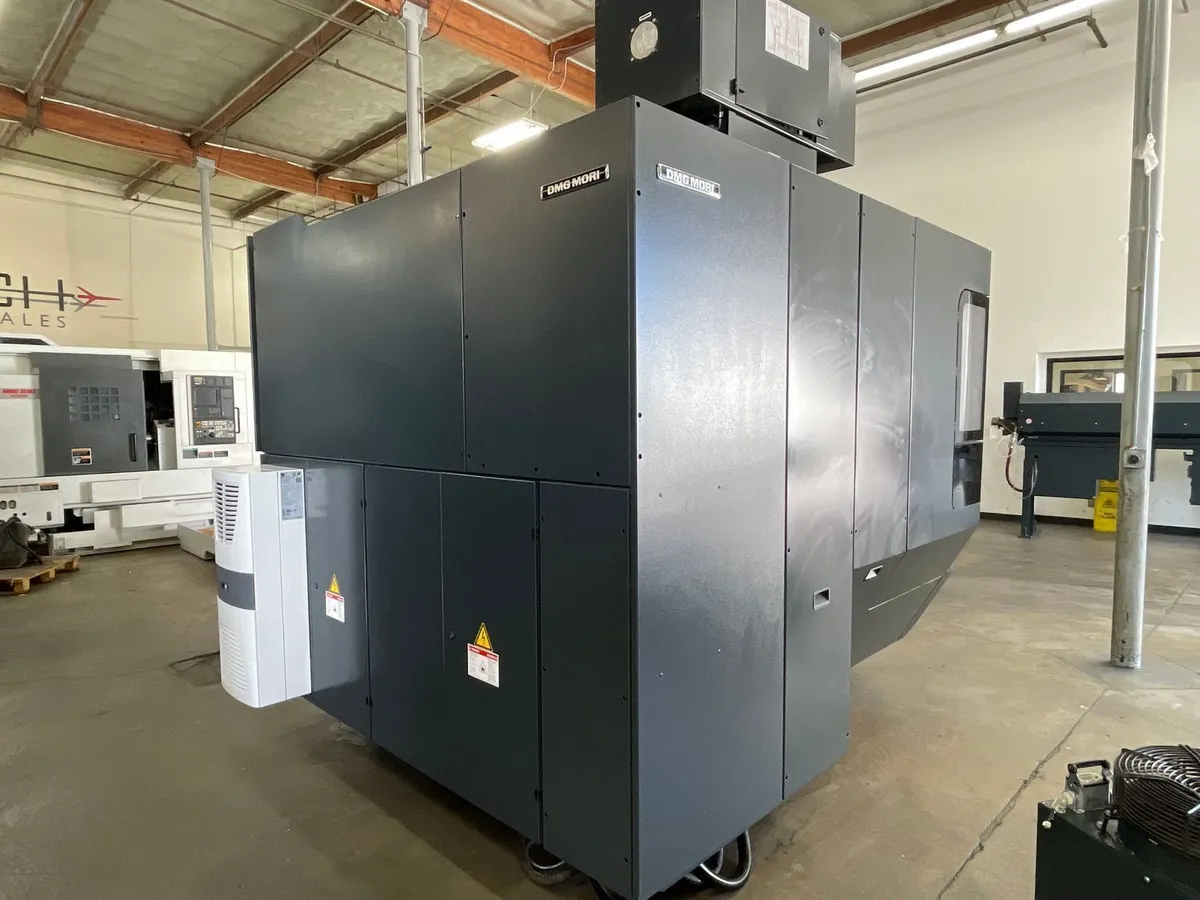

2018 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center
Have one to sell?
ConditionUsed
1 available
2018 DMG Mori DMU 50 Gen III 5-Axis Machining Center with HEIDENHAIN TNC 640 CNC, 20,000 rpm spindle speed, and 60-tool capacity. X/Y/Z: 25.6"/20.47"/18.7". Includes Renishaw probe, Blum laser tool setter, and mist collector.
MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”

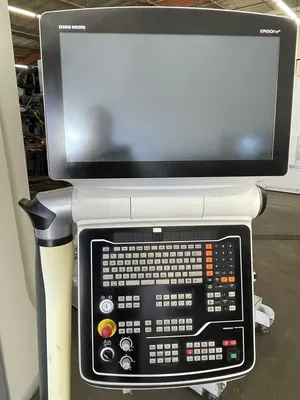

HEIDENHAIN TNC 640 W/ CELOS CNC CONTROL
RENISHAW OMP 60 OPTICAL PROBE
BLUM LASER TOOL SETTER

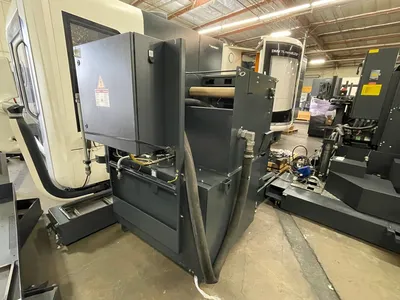

BANDPASS FILTRATION UNIT
MIST COLLECTOR

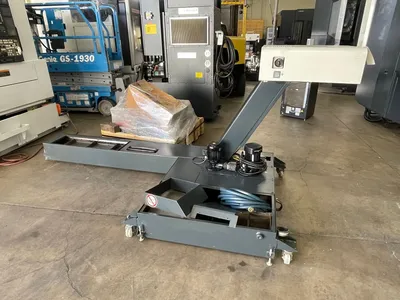

CHIP CONVEYOR
CLEAR VIEW ROTATING WINDOW SYSTEM
ALL AVAILABLE MANUALS
2018 DMG Mori DMU 50 Gen III 5-Axis Machining Center with HEIDENHAIN TNC 640 CNC, 20,000 rpm spindle speed, and 60-tool capacity. X/Y/Z: 25.6"/20.47"/18.7". Includes Renishaw probe, Blum laser tool setter, and mist collector.
Imperial
| X Travel | 25.6" |
| Y Travel | 20.47" |
| Z Travel | 18.7" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 24.8" |
| Table Size (L) | 19.6" |
| Main Spindle Motor | 28 hp |
| Spindle Taper | HSK 63 |
| Spindle Nose To Table Top | 5.9” - 24.6” |
| Table Type A-Axis Trunnion Tilt Range | -5+100 DEG |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-Axis (Table Swivel) | 360 DEGREES |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1654 IPM/ 1654 IPM/ 1654 IPM |
| Chip Conveyor | YES |
| Control | CNC (HEIDENHAIN TNC 640) |
| Weight | 16,500 lbs |
MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”
HEIDENHAIN TNC 640 W/ CELOS CNC CONTROL
RENISHAW OMP 60 OPTICAL PROBE
BLUM LASER TOOL SETTER
BANDPASS FILTRATION UNIT
MIST COLLECTOR
CHIP CONVEYOR
CLEAR VIEW ROTATING WINDOW SYSTEM
ALL AVAILABLE MANUALS
