Used 2021 OKUMA GENOS M460 VAE | MACHINING CENTERS, VERTICAL
Have one to sell?
ConditionUsed
1 available

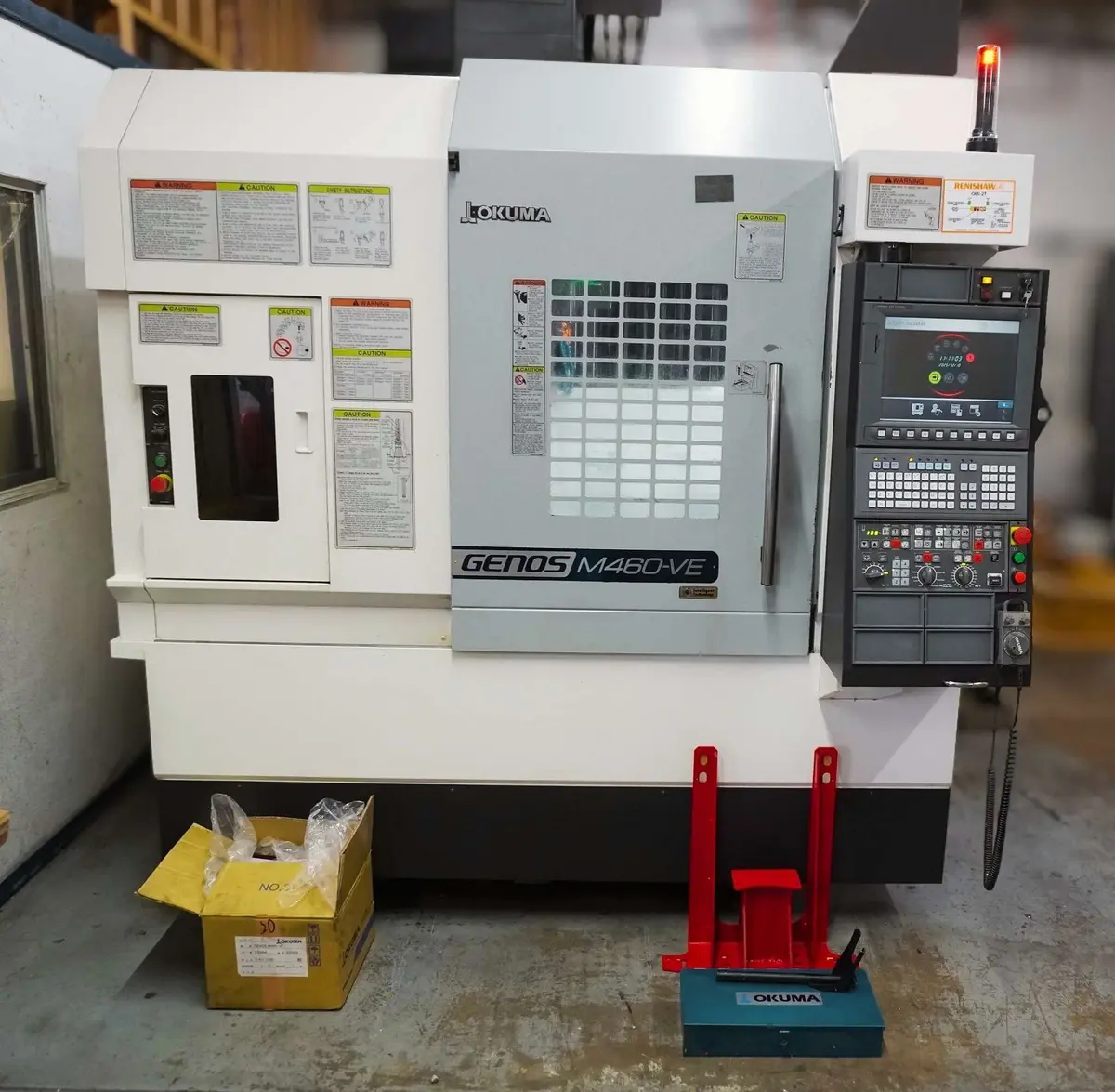

2021 OKUMA Genos M460-VAE CNC Vertical Machining Center, equipped with Renishaw probing, tool setter, touchscreen control. Features a 39.37" x 18.11" table, 15,000 RPM spindle, and 32 ATC. Enhanced by the Daiken spindle chiller and the Henning chip conveyor.
MAX TABLE LOAD: 1,540 LBS

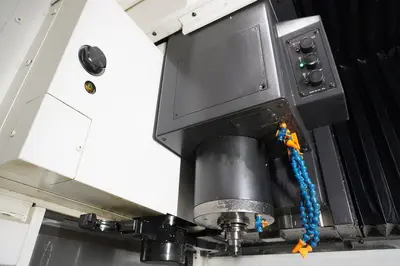

SPINDLE SPEED: 15,000 RPM (INTEGRAL MOTOR/NO BELTS)
OKUMA OSP-P300M
32 ATC (CAT 40 BIG PLUS)

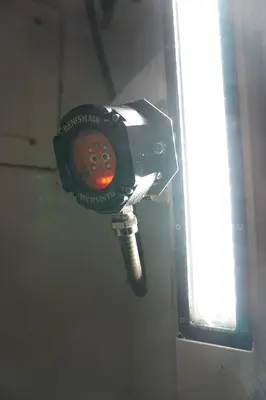

RENISHAW PROBING
TOOL SETTER

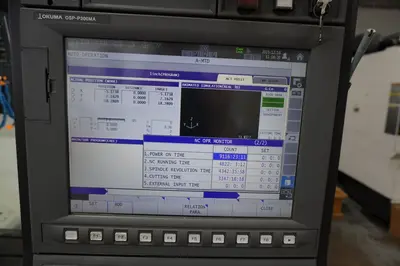

INTUITIVE TOUCHSCREEN CONTROL
DAIKEN SPINDLE CHILLER
DUAL CHIP AUGER
HENNING CHIP CONVEYER
2021 OKUMA Genos M460-VAE CNC Vertical Machining Center, equipped with Renishaw probing, tool setter, touchscreen control. Features a 39.37" x 18.11" table, 15,000 RPM spindle, and 32 ATC. Enhanced by the Daiken spindle chiller and the Henning chip conveyor.
Imperial
| X Travel | 30" |
| Y Travel | 18.11" |
| Z Travel | 18.11" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 32 |
| Table Size (W) | 18.11" |
| Table Size (L) | 39.37" |
| Main Spindle Motor | 30 hp |
| Main Horse Power | 30 HP / 22 KW |
| Spindle Taper | CAT 40 |
| Coolant Thru High Pressure | No |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1,575 / 1,575 / 1,262 IPM |
| Chip Conveyor | YES |
| Control | CNC (OKUMA OSP-P300MA) |
| Dimensions | 125" x 101" x 108" |
| Weight | 18,700 LBS |
MAX TABLE LOAD: 1,540 LBS
SPINDLE SPEED: 15,000 RPM (INTEGRAL MOTOR/NO BELTS)
OKUMA OSP-P300M
32 ATC (CAT 40 BIG PLUS)
RENISHAW PROBING
TOOL SETTER
INTUITIVE TOUCHSCREEN CONTROL
DAIKEN SPINDLE CHILLER
DUAL CHIP AUGER
HENNING CHIP CONVEYER
