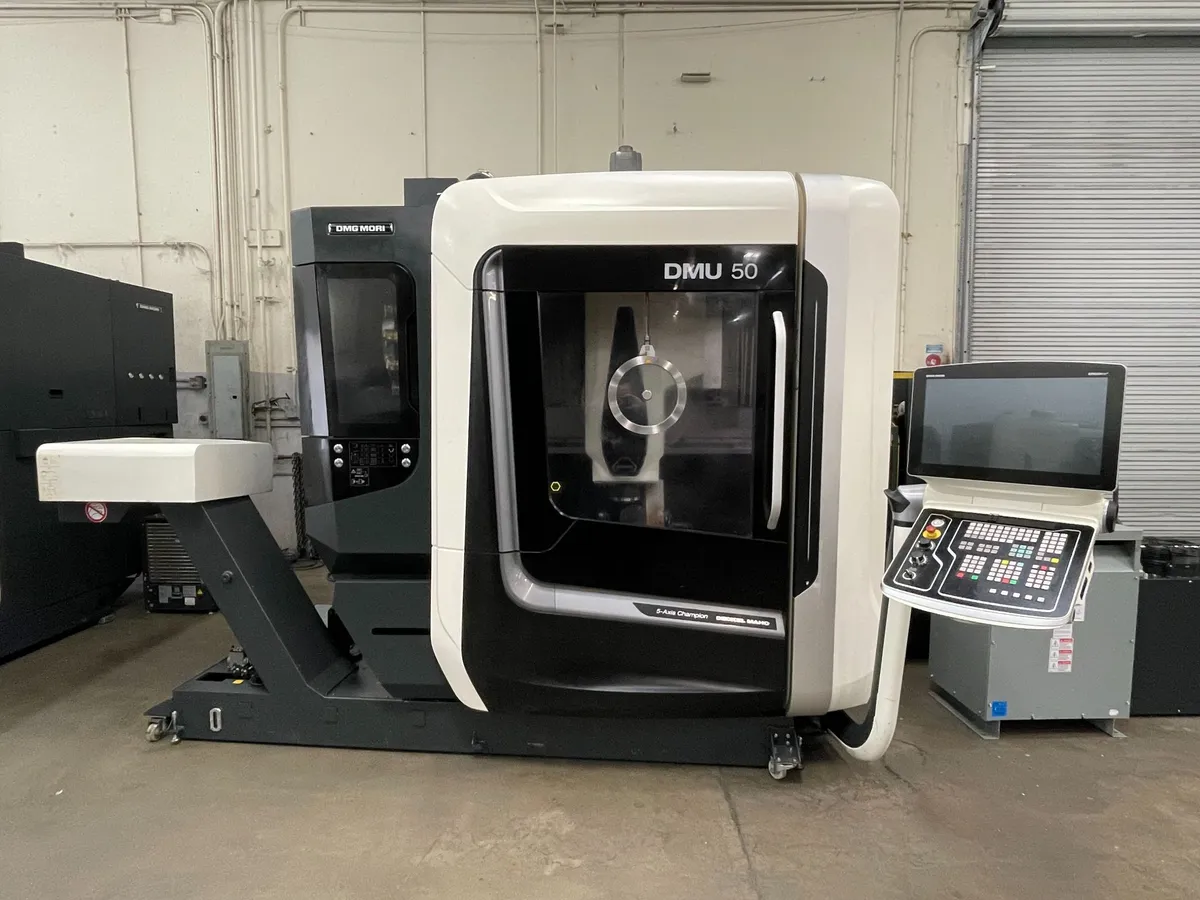

2018 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center
Have one to sell?
ConditionUsed
1 available
$240,000.00 USD
2018 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center, used. Key specs: 25.6" X travel, 20000 rpm spindle, tool capacity 60, max table load 660 lbs. Equipped with a Siemens 840D SL, a Renishaw probe, a Blum laser tool setter, and more.
MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”

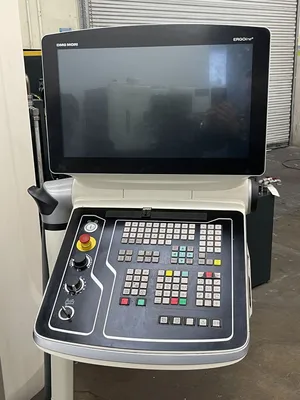

SIEMENS 840D SL W/ CELOS CNC CONTROL
RENISHAW PROBE
BLUM LASER TOOL SETTER

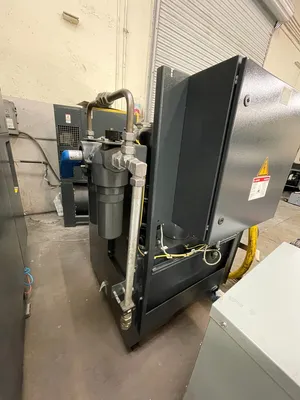

BANDPASS FILTRATION UNIT
CHIP CONVEYOR
CLEAR VIEW ROTATING WINDOW SYSTEM
TRANSFORMER
ALL AVAILABLE MANUALS
2018 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center, used. Key specs: 25.6" X travel, 20000 rpm spindle, tool capacity 60, max table load 660 lbs. Equipped with a Siemens 840D SL, a Renishaw probe, a Blum laser tool setter, and more.
Imperial
| X Travel | 25.6" |
| Y Travel | 20.47" |
| Z Travel | 18.7" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 24.8" |
| Table Size (L) | 19.6" |
| Main Spindle Motor | 28 hp |
| Spindle Taper | HSK 63 |
| Spindle Nose To Table Top | 5.9” - 24.6” |
| Table Type A-Axis Trunnion Tilt Range | -5+100 DEG |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-Axis (Table Swivel) | 360 DEGREES |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1654 IPM/ 1654 IPM/ 1654 IPM |
| Chip Conveyor | YES |
| Control | CNC (CELOS with Siemens 840D SLIMline CNC Control) |
| Weight | 16,500 lbs |
MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”
SIEMENS 840D SL W/ CELOS CNC CONTROL
RENISHAW PROBE
BLUM LASER TOOL SETTER
BANDPASS FILTRATION UNIT
CHIP CONVEYOR
CLEAR VIEW ROTATING WINDOW SYSTEM
TRANSFORMER
ALL AVAILABLE MANUALS
