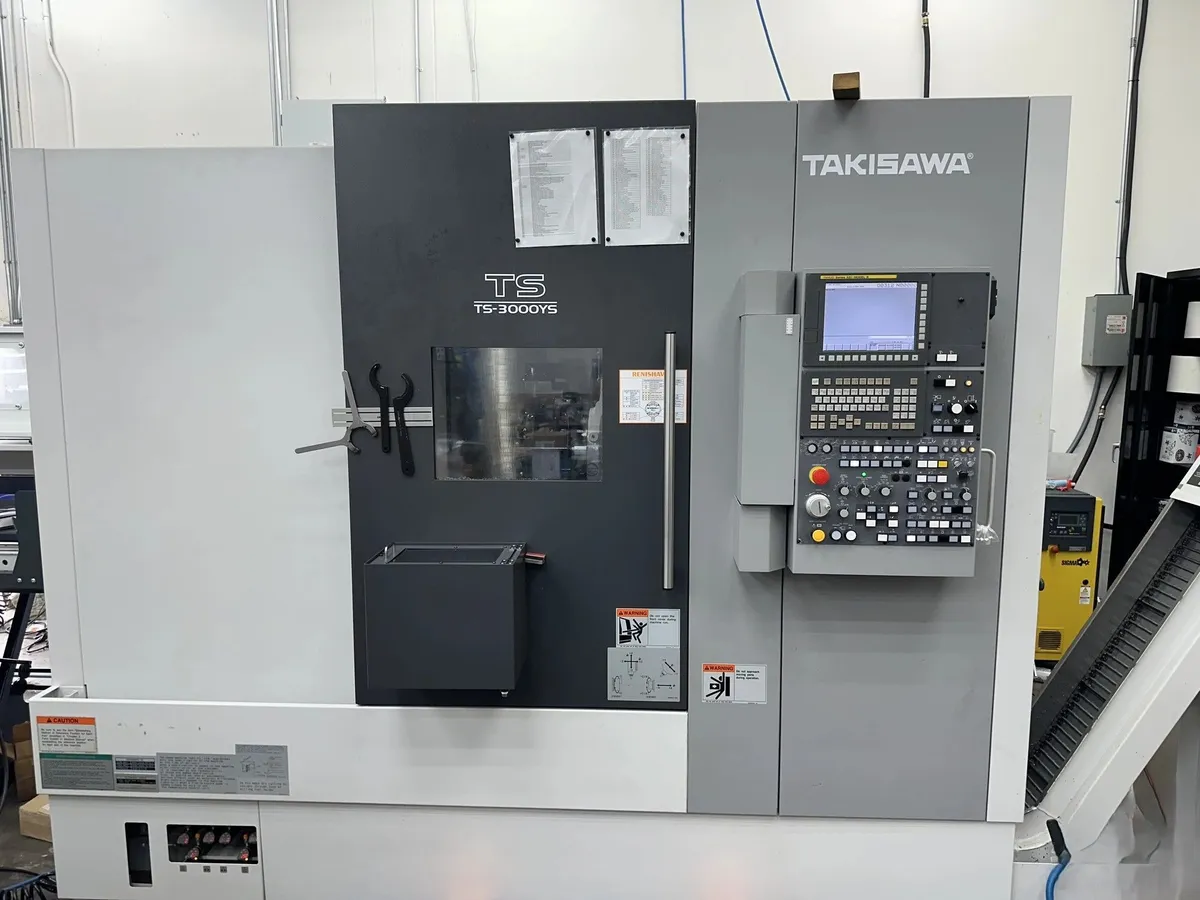

2022 Takisawa TS-3000YS Multi Axis CNC Lathe, FANUC 32i-B CONTROL
Have one to sell?
ConditionUsed
1 available
Used 2022 TAKISAWA TS-3000YS CNC Lathes, Multi-Axis available. This machine offers advanced functionality for precision tasks. Perfect for enhancing your machining operations.
2022 Takisawa TS-3000 YS Multi-Axis CNC
CNC controller: FANUC 32i Model B
Axes/capacity
X-axis travel mm: 261
Y-axis travel mm: -50+70
Z-axis travel mm: 630
C-axis: 0,001
Turning length mm: 545
Swing diameter mm: ø 292
Bar work capacity mm: 67
Turret
Tool holder: BNT-40
Number of tool slots St .: 12
Speed-driven tools RPM: 6000
Drive power-driven tools kW: 7,5/3,7
Main spindle
Speed spindle rpm: 5000
Drive power spindle kW: 15/11
Spindle bore mm: ø77
Counter spindle
Speed spindle rpm: 6000
Drive power spindle kW: 11/7.5
Spindle bore mm: ø53
Counter spindle travel mm: 665

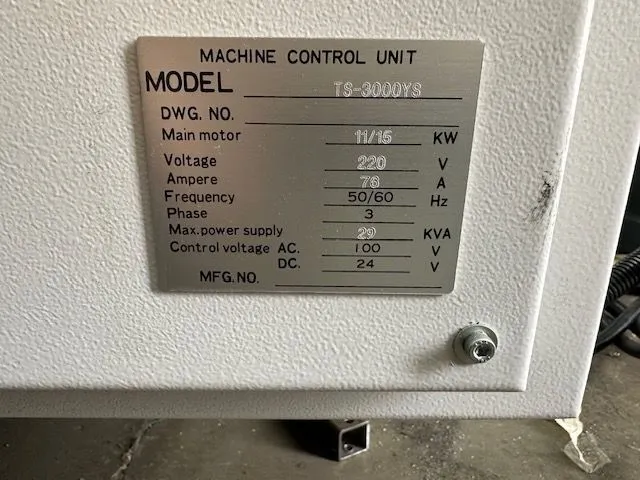

RATED POWER KVA: 31
Dimensions
Lathe: L86" x W11" (170" with chip conveyor) x H91"
Bar Feed: L66" x W80" x H54"
Weight: Approx. 15,000 lbs. with all equipment
FANUC 32iB CONTROL
RENISHAW PROBING SYSTEM

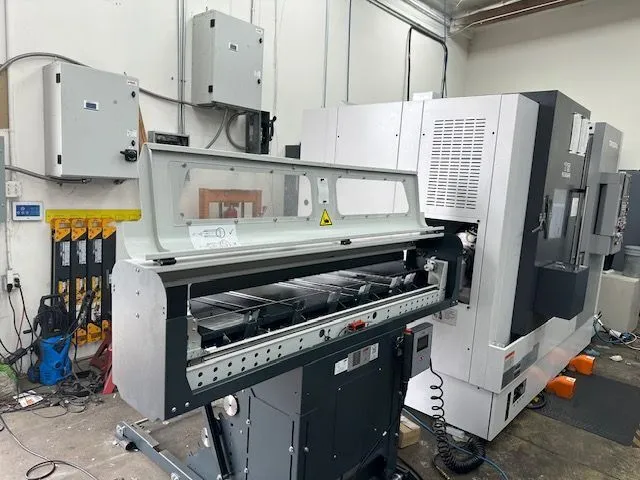

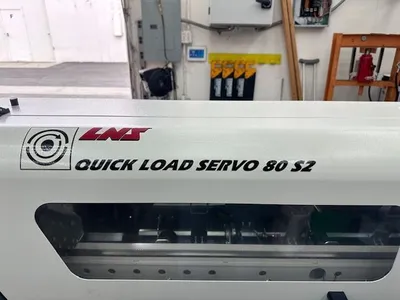

LNS QLS80 S2 BAR FEEDER

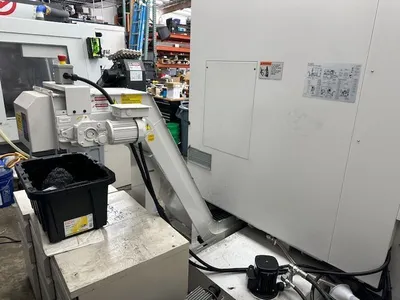

CHIP CONVEYOR
PART CATCHER FOR RIGHT SPINDLE (MAX. Ø80 MM AND L 120 MM)
AIR OR WATER THROUGH THE CENTER OF THE SPINDLE (COUNTER SPINDLE)
DRIVEN TOOLS INCLUDED
Used 2022 TAKISAWA TS-3000YS CNC Lathes, Multi-Axis available. This machine offers advanced functionality for precision tasks. Perfect for enhancing your machining operations.
Imperial
| Maximum Swing | 11.496" |
| Main Spindle Bore/Max Bar Capacity | 3.031/2.638 |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Cutting Length | 21.456" |
| Distance Between Spindles | 26.141" |
| X-Axis Travel (X1, X2, X3) | 10.236 |
| Z-Axis Travel (Z1, Z2, Z3) | 24.803 |
| Y-Axis Travel (Y1, Y2, Y3) | 4.724/2.755 |
| C-Axis Indexing (1, 2) | 0.001 |
| W-Axis Travel Sub Spindle | 26.141 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Bore Diameter | 2.6378" |
| Main Spindle Maximum Bar Work | 2.6378" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20.095/14.746 |
| Sub Spindle/2nd Spindle Bore Size | 2.0866 |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 14.746/10.047 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10.0474 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Yes |
| Y-Axis | Upper and Lower Turrets |
| Y-Axis | Upper and Lower Turrets |
| Driven Tool Positions | Upper and Lower Turrets |
| Driven Tool Positions | Upper and Lower Turrets |
| Control | CNC (FANUC 32i Model B) |
| Dimensions | 86x11x91 |
| Weight | 15000 |
2022 Takisawa TS-3000 YS Multi-Axis CNC
CNC controller: FANUC 32i Model B
Axes/capacity
X-axis travel mm: 261
Y-axis travel mm: -50+70
Z-axis travel mm: 630
C-axis: 0,001
Turning length mm: 545
Swing diameter mm: ø 292
Bar work capacity mm: 67
Turret
Tool holder: BNT-40
Number of tool slots St .: 12
Speed-driven tools RPM: 6000
Drive power-driven tools kW: 7,5/3,7
Main spindle
Speed spindle rpm: 5000
Drive power spindle kW: 15/11
Spindle bore mm: ø77
Counter spindle
Speed spindle rpm: 6000
Drive power spindle kW: 11/7.5
Spindle bore mm: ø53
Counter spindle travel mm: 665
RATED POWER KVA: 31
Dimensions
Lathe: L86" x W11" (170" with chip conveyor) x H91"
Bar Feed: L66" x W80" x H54"
Weight: Approx. 15,000 lbs. with all equipment
FANUC 32iB CONTROL
RENISHAW PROBING SYSTEM
LNS QLS80 S2 BAR FEEDER
CHIP CONVEYOR
PART CATCHER FOR RIGHT SPINDLE (MAX. Ø80 MM AND L 120 MM)
AIR OR WATER THROUGH THE CENTER OF THE SPINDLE (COUNTER SPINDLE)
DRIVEN TOOLS INCLUDED
