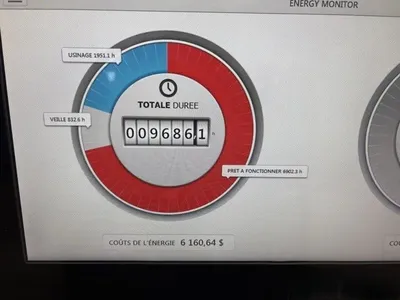

2019 DMG Mori NLX-2500SY - ONLY 1950 CUT HOURS!
Have one to sell?
ConditionUsed
1 available

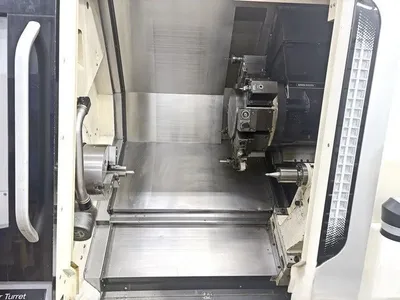

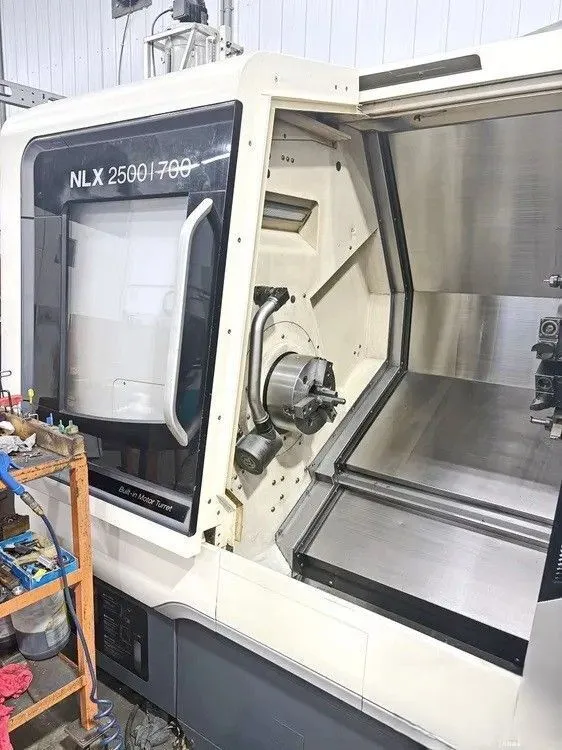

2019 DMG Mori NLX-2500SY CNC Lathe with milling, sub, and Y-axis capabilities. Manufactured by DMG MORI in 2019, this used multi-axis machine offers versatile machining solutions for complex tasks.

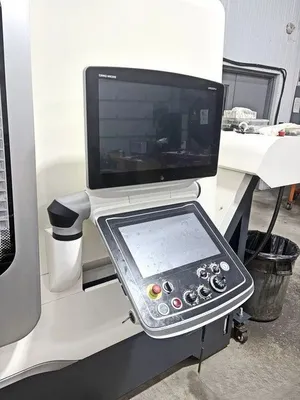

CELOS ERGOLINE TOUCH CONTROL
HIGH-PRESSURE COOLANT SYSTEM

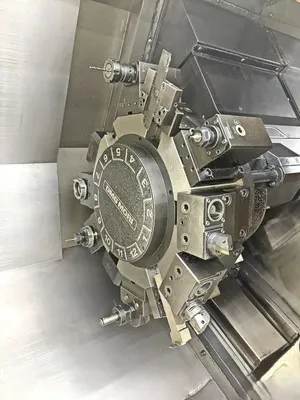

LIVE TOOLING (10,000 RPM)
Y-AXIS

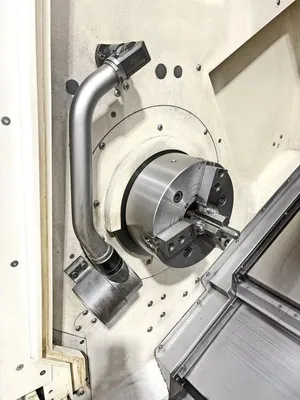

10" KITAGAWA HYDRAULIC CHUCK
PROGRAMMABLE SERVO TAILSTOCK
MT5 LIVE CENTER
TOOL PRESETTER
SIGNAL TOWER STATUS LIGHT
ETHERNET
BAR FEEDER INTERFACE
CHIP CONVEYOR
2019 DMG Mori NLX-2500SY CNC Lathe with milling, sub, and Y-axis capabilities. Manufactured by DMG MORI in 2019, this used multi-axis machine offers versatile machining solutions for complex tasks.
Imperial
| Maximum Swing | 36.229" |
| Max Turning Diameter | 14.01" |
| Main Spindle Bore/Max Bar Capacity | 3.58"/3.1" |
| Maximum Swing Over Cross Slide | 29.72" |
| Distance Between Centers | 28.7" |
| Maximum Cutting Length | 27.75" |
| X-Axis Travel (X1, X2, X3) | 10.24" |
| Z-Axis Travel (Z1, Z2, Z3) | 31.3" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 1.97" |
| C-Axis Indexing (1, 2) | 0.001 |
| W-Axis Travel Sub Spindle | 50.6 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3.1" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 / 22 HP |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7" |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 / 10 HP |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 1 |
| Turret Rotary Tool Spindle Speed 1, 2 | 10000 |
| Bar Feed | Yes |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 394 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (CELOS CNC CONTROL) |
| Dimensions | 174" X 93" X 87" |
| Weight | 17,500 LBS |
CELOS ERGOLINE TOUCH CONTROL
HIGH-PRESSURE COOLANT SYSTEM
LIVE TOOLING (10,000 RPM)
Y-AXIS
10" KITAGAWA HYDRAULIC CHUCK
PROGRAMMABLE SERVO TAILSTOCK
MT5 LIVE CENTER
TOOL PRESETTER
SIGNAL TOWER STATUS LIGHT
ETHERNET
BAR FEEDER INTERFACE
CHIP CONVEYOR
