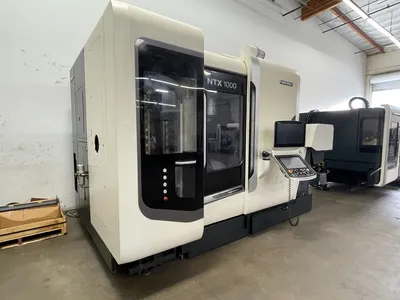

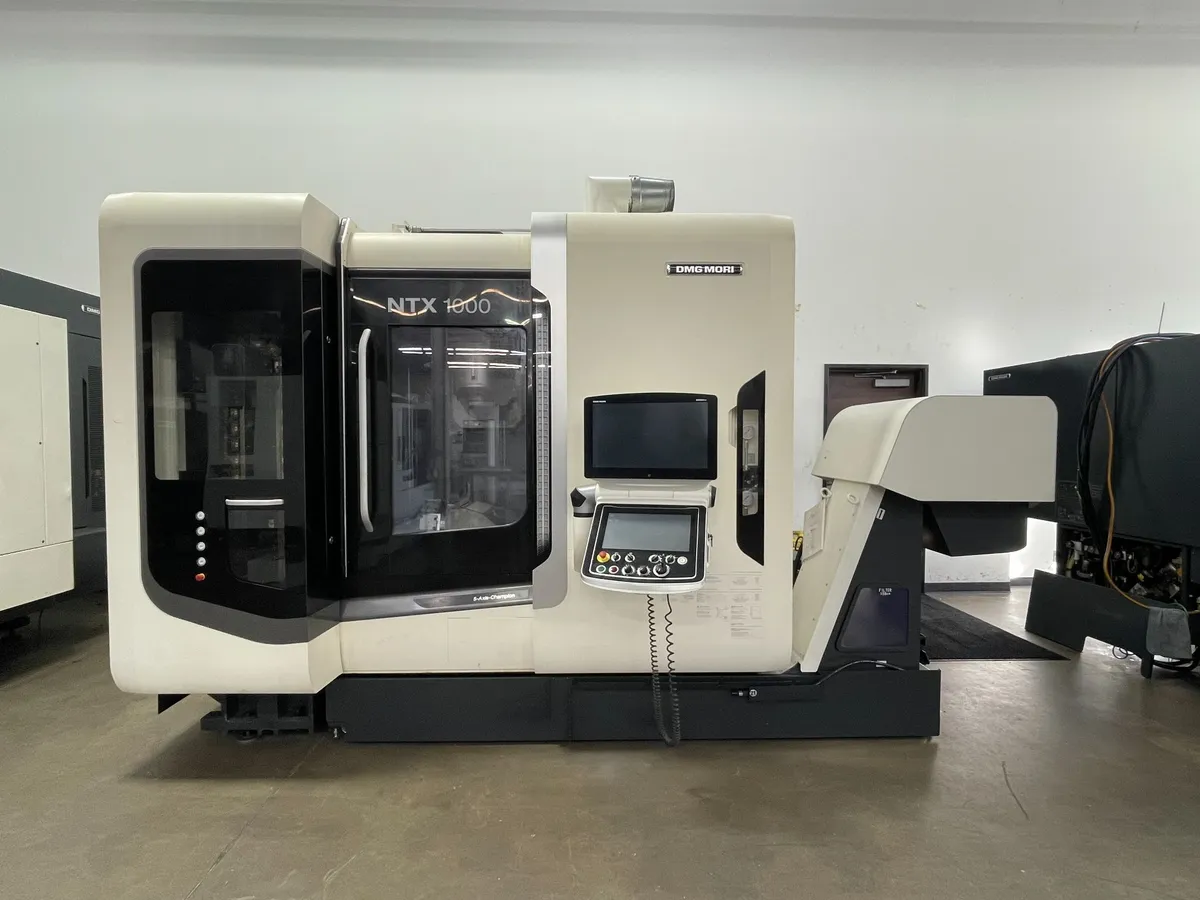

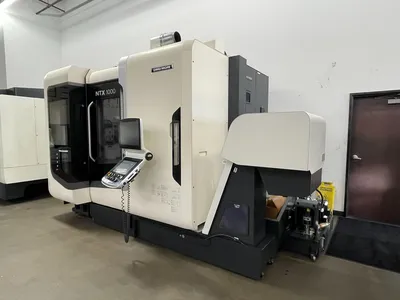

2017 DMG MORI NTX-1000SZM Gen II Multi Axis Mill Turn Serial Number: NTX11171105
Have one to sell?
$319,000.00 USD
ConditionUsed
1 available
Used DMG MORI NTX 1000 SZM CNC lathe available. Professionally crafted for precision, this combination machine offers advanced operational capabilities. Ideal for enhancing productivity in your machining processes.
Specifications
Swing Over Cross Slide 17.7”
Max Turning Diameter 16.9” Tool Spindle/10.7” Turret 2
Max Turning Length 31.4”
Bar Work Capacity 2.0”
Travel X1/Y/Z1/B 17.9”/4.1”/31.4”/120 D
Max Spindle Speed 5,000 RPM Spindle 1
Max Spindle Speed 6,000 RPM Spindle 2
Min B Axis Indexing .0001

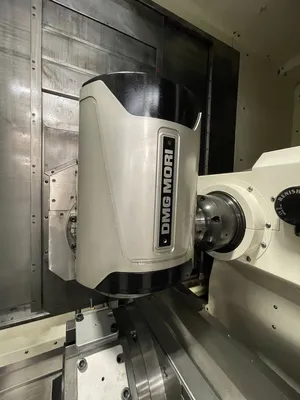

Tool Spindle Speed 20,000 RPM
Taper Hole Tool Spindle HSK-A50
Tool Magazine 38
Rapid Traverse Rate 1574.8-X-Y / 1968.5-Z/1417.3-A IPM
Chuck Size 8” Main and 8” Sub

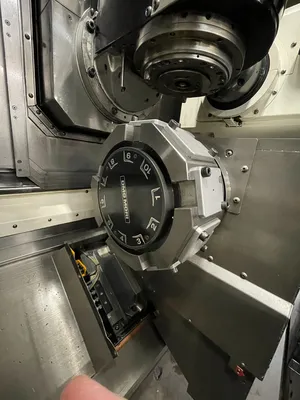

Turret Positions 10 All Live
Turret Milling 10,000 RPM
CELOS F31iB5
Chip Conveyor
Tool Presetter
Tool Spindle Full Indexing Specifications
Chip Conveyor (right discharge, hinge type + drum filter type)
Coolant Gun
Coolant Float Switch (lower limit detection)
Chuck Top Coolant for Main Spindle
Chuck Top Coolant for Counter Spindle
Air Blow for Chuck (Counter Spindle)
Mist Collector Interface
Oil Skimmer
Manual In-Machine Tool Presetter
Automatic Door
EtherNet/IP Interface
Robot Interface
Safety Fence Interface
Bar Feeder Interface
Multi Dry Filter
10 External M-Codes
Manual Pulse Generator
Addition of Optional Block Skip
Tool Offsets 240 Sets in Total
X-Axis Direction JIS / ISO Standard
Royal 44097 QG-65

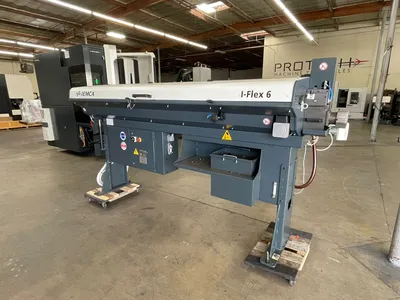

Iemca I Flex 6 Barfeeder
IMECA Prodigy 552/6' with 3 complete Channel Sets and 2 Spindle Liners
IMECA Axial Shift Device

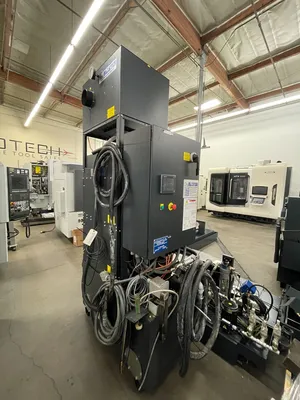

Chip Blaster MS-JV40MC-34K-MMB Variable Volume with transfer pump
