2022 NAKAMURA-TOME AS-200MY, 4,500 RPM
Have one to sell?
ConditionUsed
1 available

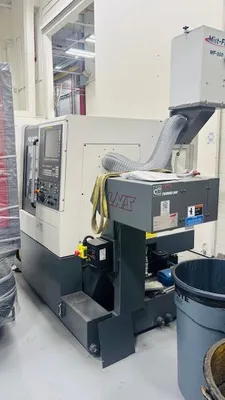

2022 Nakamura-Tome AS-200MY CNC Lathe, equipped with a Fanuc 0i-TF control, 4,500 RPM spindle, 15-20 HP motor, and 2.5" bar capacity. Features include helical interpolation, full C-axis milling, NT Nurse II System, and safety interlocks. Ideal for precision.
• 4500 RPM SPINDLE SPEED - 15/20 HP FANUC SPINDLE MOTOR
• RIGID TAPPING FOR MILLING TURRET (STANDARD ON 2.5" BAR CAPACITY MACHINES)
• 12 STATION BOLT-ON TURRET WITH 1⁄2 INDEXING FOR 24 TOOL CAPACITY
• BAR FEEDER INTERFACE
• PREPPED FOR TOOL SETTER

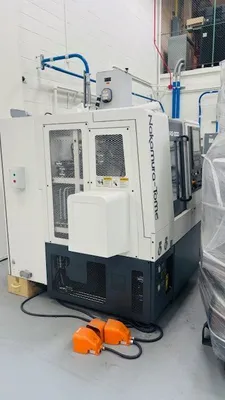

• CHUCK OPEN/CLOSE FOOT SWITCH
• HELICAL INTERPOLATION
• FULL "C" AXIS MILLING UNIT
• NT NURSE II SYSTEM
• NT WORK NAVIGATOR
• SAFETY INTERLOCK FOR CHUCKING FAILURE
• SPINDLE SPEED OVERRIDE
• SPLASH GUARDS WITH SAFETY DOOR INTERLOCK
• HIGH VOLUME GRUNDFOS PUMP
• STANDARD TOOL PACKAGE
• WORK LIGHT
* DRIVE MOTOR FANUC SPINDLE MOTOR 15/20 HP (AC 15/11KW)
* DRIVE MOTOR TORQUE.110/61 NM (81/50 FT. LB.)
* SPEED RANGE........ ......50-4500 RPM
* NUMBER OF STEPS...........STEPLESS
* RPM DIRECT DESIGNATION
* SPINDLE NOSE...............A2-6
* HOLE THROUGH SPINDLE...... 3.1”
* HOLE THROUGH DRAW TUBE .....2.60”
* FRONT BEARING INNER DIAM.....4.33.”

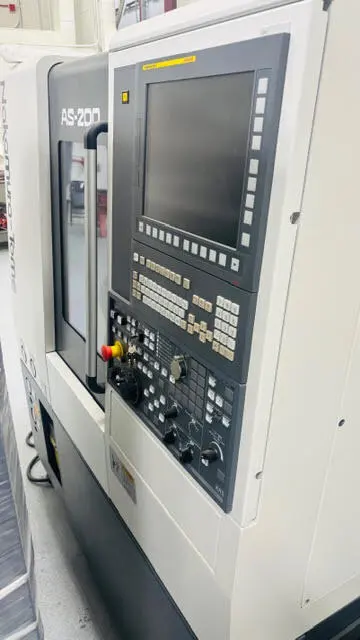

FANUC 0I-TF CNC CONTROL
2.5" BAR CAPACITY - LEFT SPINDLE
BAR FEEDER INTERFACE
PREPPED FOR TOOL SETTER
CHUCK OPEN/CLOSE FOOT SWITCH
HELICAL INTERPOLATION
FULL "C" AXIS MILLING UNIT
NT NURSE II SYSTEM
NT WORK NAVIGATOR
SAFETY INTERLOCK FOR CHUCKING FAILURE
SPINDLE SPEED OVERRIDE
SPLASH GUARDS WITH SAFETY DOOR INTERLOCK
HIGH VOLUME GRUNDFOS PUMP
STANDARD TOOL PACKAGE
WORK LIGHT
Y AXIS TRAVELS UNIT +/-1.61."
CHIP CONVEYOR RIGHT-HAND SIDE DISCHARGE
MIST COLLECTION

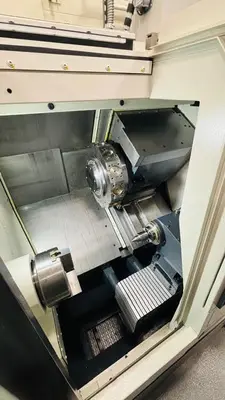

KITAGAWA 8” 3 JAW CHUCK
TAILSTOCK MT4 70MM TRAVELS
LIVE TOOLING (1) ER 25
LIVE TOOLING (1) ER 25
2022 Nakamura-Tome AS-200MY CNC Lathe, equipped with a Fanuc 0i-TF control, 4,500 RPM spindle, 15-20 HP motor, and 2.5" bar capacity. Features include helical interpolation, full C-axis milling, NT Nurse II System, and safety interlocks. Ideal for precision.
Imperial
| Maximum Swing | 15.74" |
| Max Turning Diameter | 13.4" |
| Main Spindle Bore/Max Bar Capacity | 3.1"/ 2.5" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Swing Over Cross Slide | 12.59" |
| Maximum Cutting Length | 11.81" |
| X-Axis Travel (X1, X2, X3) | 8.96" |
| Z-Axis Travel (Z1, Z2, Z3) | 12.6" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 1.61 |
| C-Axis Indexing (1, 2) | FULL |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.15" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15/ 20HP/ (AC 15/11KW) |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 5.5 |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Control | CNC (FANUC OI-TF) |
| Dimensions | 80.0” X 67.6” X 72.9” |
| Weight | 6835 LBS |
• 4500 RPM SPINDLE SPEED - 15/20 HP FANUC SPINDLE MOTOR
• RIGID TAPPING FOR MILLING TURRET (STANDARD ON 2.5" BAR CAPACITY MACHINES)
• 12 STATION BOLT-ON TURRET WITH 1⁄2 INDEXING FOR 24 TOOL CAPACITY
• BAR FEEDER INTERFACE
• PREPPED FOR TOOL SETTER
• CHUCK OPEN/CLOSE FOOT SWITCH
• HELICAL INTERPOLATION
• FULL "C" AXIS MILLING UNIT
• NT NURSE II SYSTEM
• NT WORK NAVIGATOR
• SAFETY INTERLOCK FOR CHUCKING FAILURE
• SPINDLE SPEED OVERRIDE
• SPLASH GUARDS WITH SAFETY DOOR INTERLOCK
• HIGH VOLUME GRUNDFOS PUMP
• STANDARD TOOL PACKAGE
• WORK LIGHT
* DRIVE MOTOR FANUC SPINDLE MOTOR 15/20 HP (AC 15/11KW)
* DRIVE MOTOR TORQUE.110/61 NM (81/50 FT. LB.)
* SPEED RANGE........ ......50-4500 RPM
* NUMBER OF STEPS...........STEPLESS
* RPM DIRECT DESIGNATION
* SPINDLE NOSE...............A2-6
* HOLE THROUGH SPINDLE...... 3.1”
* HOLE THROUGH DRAW TUBE .....2.60”
* FRONT BEARING INNER DIAM.....4.33.”
FANUC 0I-TF CNC CONTROL
2.5" BAR CAPACITY - LEFT SPINDLE
BAR FEEDER INTERFACE
PREPPED FOR TOOL SETTER
CHUCK OPEN/CLOSE FOOT SWITCH
HELICAL INTERPOLATION
FULL "C" AXIS MILLING UNIT
NT NURSE II SYSTEM
NT WORK NAVIGATOR
SAFETY INTERLOCK FOR CHUCKING FAILURE
SPINDLE SPEED OVERRIDE
SPLASH GUARDS WITH SAFETY DOOR INTERLOCK
HIGH VOLUME GRUNDFOS PUMP
STANDARD TOOL PACKAGE
WORK LIGHT
Y AXIS TRAVELS UNIT +/-1.61."
CHIP CONVEYOR RIGHT-HAND SIDE DISCHARGE
MIST COLLECTION
KITAGAWA 8” 3 JAW CHUCK
TAILSTOCK MT4 70MM TRAVELS
LIVE TOOLING (1) ER 25
LIVE TOOLING (1) ER 25
