2023 DN SOLUTIONS PUMA 5100LC
Have one to sell?
ConditionUsed
1 available

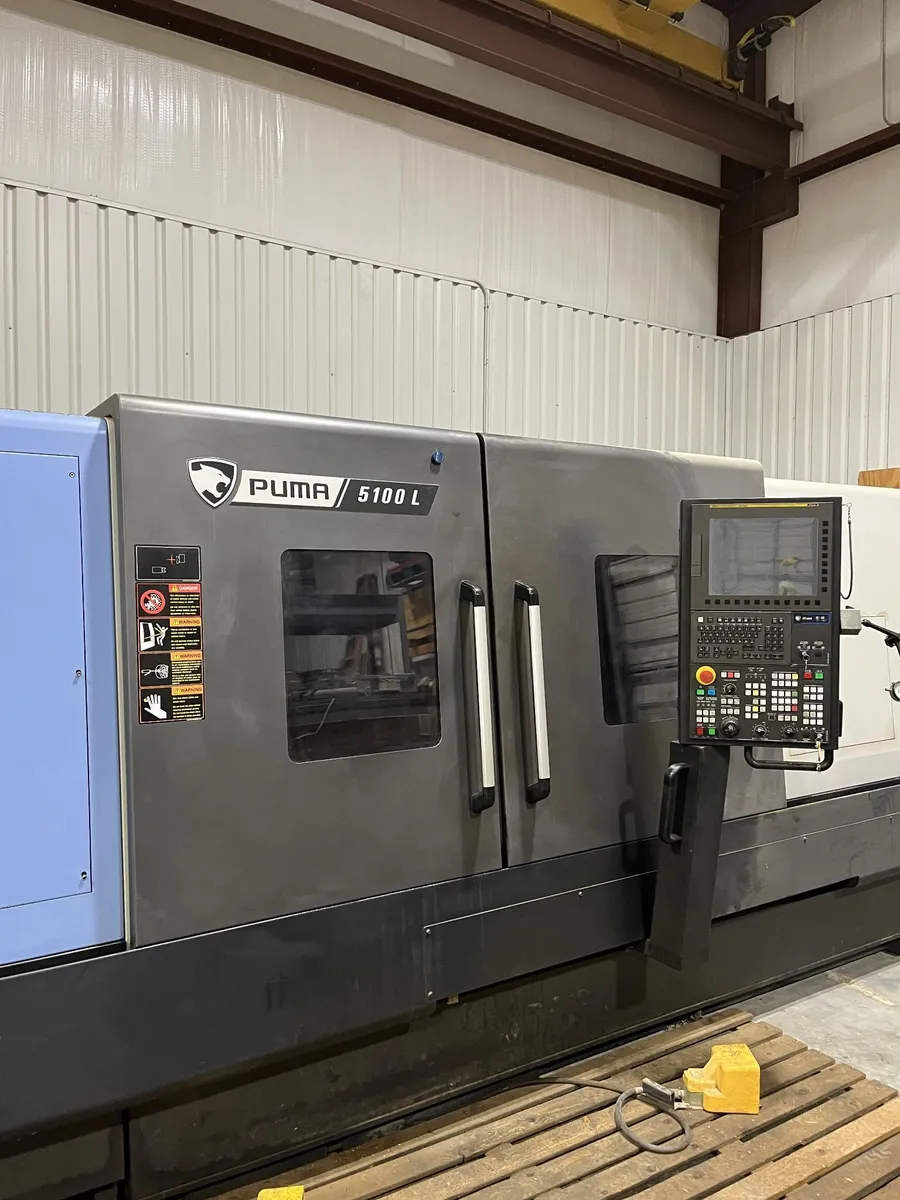

2023 Doosan Puma 5100LC CNC lathe featuring a max swing of 35.4" and 10.8" spindle bore. Equipped with a FANUC 0i-Plus control and a 145-PSI coolant system. Cutting length up to 81.97" with 876 hours of cutting usage. Perfect for precise multi-axis tasks.
Spindle Nose: ISO 702-4 (#20)
Spindle Bore: 10.82″
Spindle Speed Ranges: 2

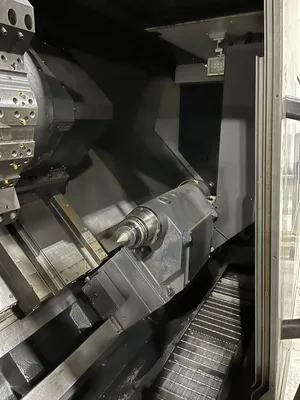

Tailstock Quill Diameter: 4.7″
Quill Stroke: 4.7″
Electrical: 205-235V 3 Phase
FANUC 0I-PLUS CONTROL W/IHMI TOUCH SCREEN
TURBO SIDE DISCHARGE CHIP CONVEYOR W/VARIABLE SPEED
HIGH PRESSURE COOLANT SYSTEM
145PSI COOLANT PUMP UPGRADE

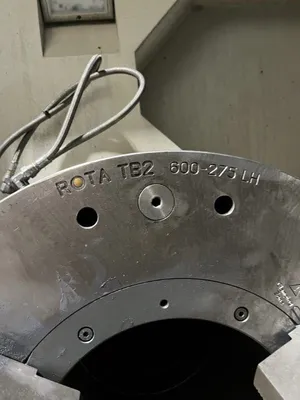

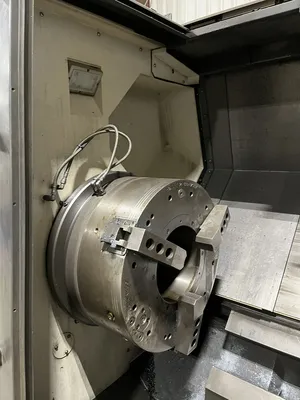

SCHUNK ROTA TB2 600-265 PNEUMATIC AIR CHUCK

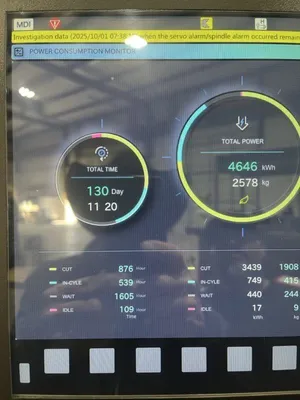

CUTTING HOURS - 876
2023 Doosan Puma 5100LC CNC lathe featuring a max swing of 35.4" and 10.8" spindle bore. Equipped with a FANUC 0i-Plus control and a 145-PSI coolant system. Cutting length up to 81.97" with 876 hours of cutting usage. Perfect for precise multi-axis tasks.
Imperial
| Maximum Swing | 35.4" |
| Max Turning Diameter | 25.6" |
| Main Spindle Bore/Max Bar Capacity | 10.8"/ 10.8" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Cutting Length | 81.97" |
| X-Axis Travel (X1, X2, X3) | 14.3" |
| Z-Axis Travel (Z1, Z2, Z3) | 84.8" |
| Main Spindle Chuck Size | 24" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 10.8" |
| Main Spindle Maximum Bar Work | 10.8" |
| Main Spindle Speed | 1,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 60 |
| Number of Turrets | 1 |

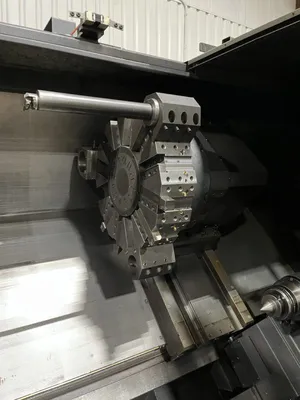

| Turret Tool Positions 1, 2 | 12 |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Coolant Thru Milling Head | Yes |
| Control | CNC (FANUC 0i-PLUS) |
| Dimensions | 277″ x 90″ x 90" |
| Weight | 26,675 |
Spindle Nose: ISO 702-4 (#20)
Spindle Bore: 10.82″
Spindle Speed Ranges: 2
Tailstock Quill Diameter: 4.7″
Quill Stroke: 4.7″
Electrical: 205-235V 3 Phase
FANUC 0I-PLUS CONTROL W/IHMI TOUCH SCREEN
TURBO SIDE DISCHARGE CHIP CONVEYOR W/VARIABLE SPEED
HIGH PRESSURE COOLANT SYSTEM
145PSI COOLANT PUMP UPGRADE
SCHUNK ROTA TB2 600-265 PNEUMATIC AIR CHUCK
CUTTING HOURS - 876
